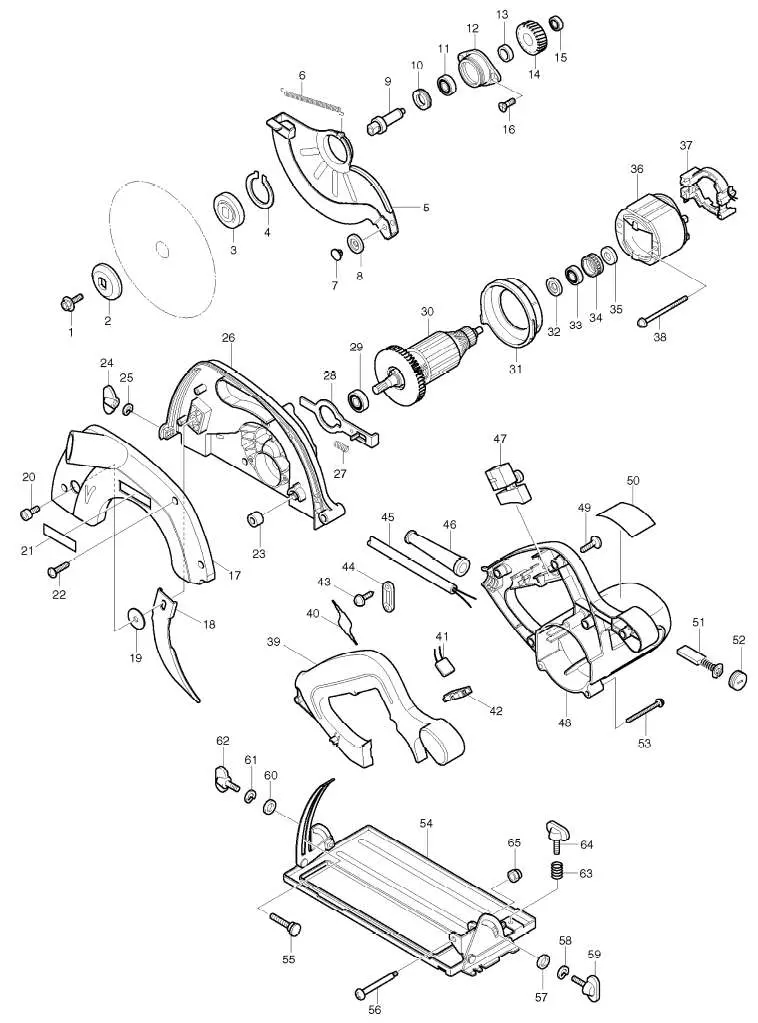

| П-п | Арт | Название |
|---|---|---|
| 1 | HEX. SOCKET HEAD BOLT M6X20 | |
| 2 | OUTER FLANGE 45 | |
| 3 | INNER FLANGE 45 | |
| 4 | RETAINING RING S-38 | |
| 5 | SAFETY COVER | |
| 6 | TENSION SPRING 4 | |
| 7 | ROLLER PIN 6 | |
| 8 | ROLLER 20 | |
| 9 | SPINDLE | |
| 10 | BEARING RETAINER 19-33 | |
| 11 | BALL BEARING 6201DDW | |
| 12 | BEARING BOX | |
| 13 | RING 12 | |
| 14 | HELICAL GEAR 47 | |
| 15 | BALL BEARING 606ZZ | |
| 16 | + COUNTERSUNK HEAD SCREW M5X16 | |
| 17 | BLADE CASE COVER | |
| 18 | RIVING KNIFE | |
| 19 | FLAT WASHER 6 | |
| 20 | HEX. SOCKET HEAD BOLT M6X12 | |
| 21 | MAKITA LABEL | |
| 22 | TAPPING SCREW CT 4X16 | |
| 23 | RUBBER SLEEVE 6 | |
| 24 | WING NUT M6 | |
| 25 | SPRING WASHER 6 | |
| 26 | BLADE CASE COMPLETE | |
| 27 | COMPRESSION SPRING 5 | |
| 28 | SHAFT LOCK | |
| 29 | BALL BEARING 6000LLB | |
| 30 | ARMATURE ASS\\\\\'Y 220V INC. 29,32,33 | |
| 31 | BAFFLE PLATE | |
| 32 | INSULATION WASHER | |
| 33 | BALL BEARING 608LB | |
| 34 | RUBBER RING 22 | |
| 35 | RUBBER WASHER 13 | |
| 36 | FIELD 240V | |
| 37 | SUPPORT ASS\\\\\'Y | |
| 38 | TAPPING SCREW 5X55 | |
| 39 | HANDLE COVER | |
| 40 | CHOKE COIL | |
| 41 | NOISE SUPPRESSOR | |
| 42 | TERMINAL BLOCK 1P | |
| 43 | TAPPING SCREW 4X18 | |
| 44 | STRAIN RELIEF | |
| 45 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 46 | CORD GUARD 9.3-90 | |
| 47 | SWITCH SGES115C-5 | |
| 48 | MOTOR HOUSING COMPLETE | |
| 49 | TAPPING SCREW 4X18 | |
| 50 | NAME PLATE 5604R | |
| 51 | CARBON BRUSH CB-303 | |
| 52 | BRUSH HOLDER CAP | |
| 53 | PAN HEAD SCREW M5X45 | |
| 54 | BASE | |
| 55 | CAP SQUARE NECK BOLT M6X26 | |
| 56 | + PAN HEAD SCREW M5 | |
| 57 | FLAT WASHER 6 | |
| 58 | SPRING WASHER 6 | |
| 59 | SCREW M6X14 | |
| 60 | FLAT WASHER 6 | |
| 61 | SPRING WASHER 6 | |
| 62 | SCREW M6X14 | |
| 63 | COMPRESSION SPRING 7 | |
| 64 | SCREW M6X14 | |
| 65 | HEX. LOCK NUT M5-8 | |
| A01 | T.C.T.SAW BLADE 165MM | |
| A02 | GUIDE RULE | |
| A03 | HEX. WRENCH 5 | |
| A04 | PLASTIC CARRYING CASE | |
| A05 | 5604RK MODEL NO. LABEL |
