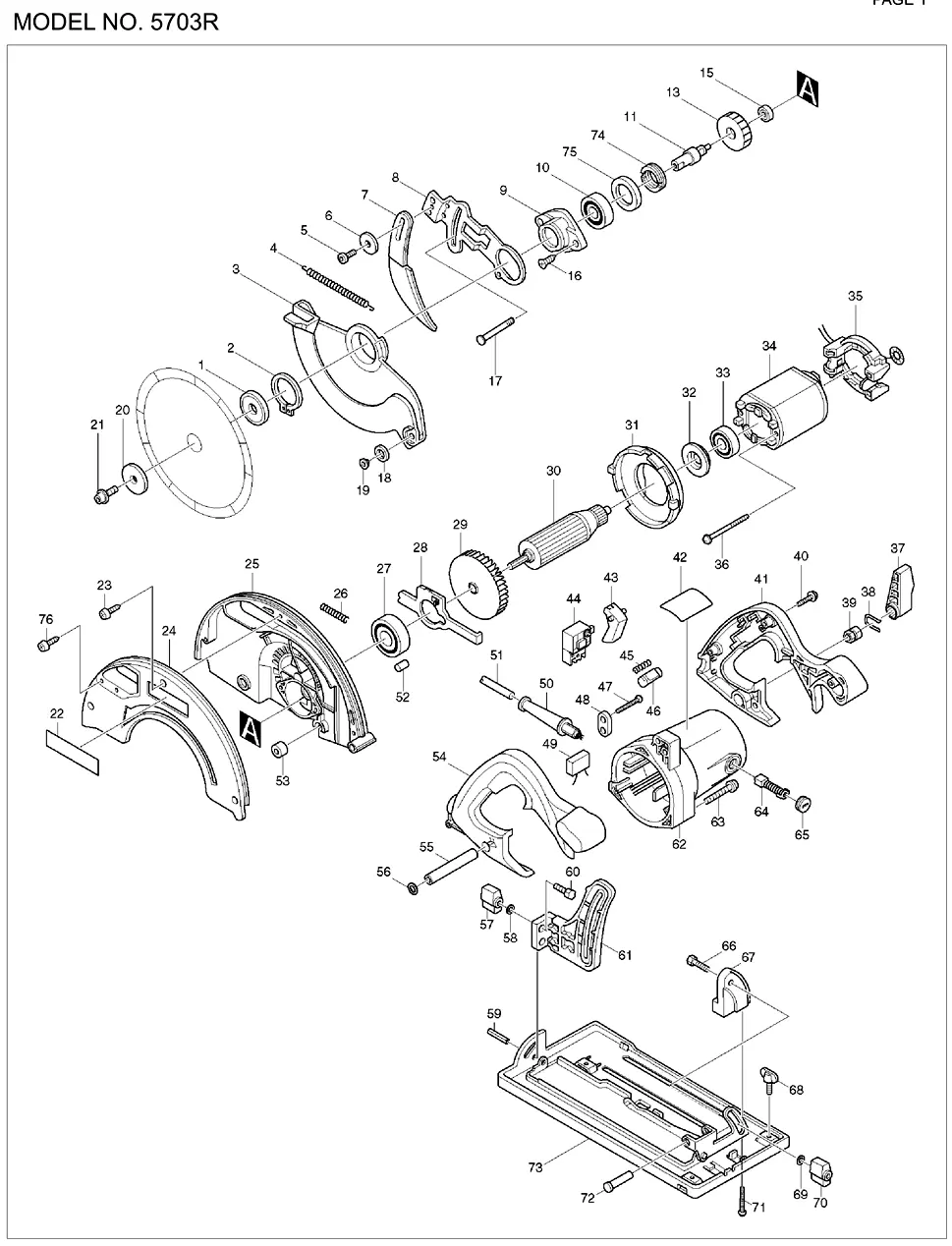

5703R Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | INNER FLANGE 40 (new) | |
| 1 | INNER FLANGE 40 (old) | |
| 2 | RETAINING RING S-40 | |
| 3 | SAFETY COVER (new) | |
| 3 | SAFETY COVER (old) | |
| 4 | TENSION SPRING 4 (new) | |
| 4 | TENSION SPRING 4 (old) | |
| 5 | HEX. SOCKET HEAD BOLT M6X12 | |
| 6 | FLAT WASHER 6 | |
| 7 | RIVING KNIFE (new) | |
| 7 | RIVING KNIFE (old) | |
| 8 | RIVING KNIFE HOLDER (new) | |
| 8 | RIVING KNIFE HOLDER (old) | |
| 9 | BEARING BOX (new) | |
| 9 | BEARING BOX (old) | |
| 10 | BALL BEARING 6002DDW (new) | |
| 10 | BALL BEARING 6002DDW (old) | |
| 11 | SPINDLE (new) | |
| 11 | SPINDLE (old) | |
| 12 | WOODRUFF KEY 4 | |
| 13 | HELICAL GEAR 41 (new) | |
| 13 | HELICAL GEAR 41 (old) | |
| 14 | FLAT WASHER 6 | |
| 15 | BALL BEARING 608 (new) | |
| 15 | BALL BEARING 626 (old) | |
| 16 | + COUNTERSUNK HEAD SCREW M5X16 | |
| 17 | CAP SQUARE NECK BOLT M8X98 | |
| 18 | ROLLER 20 | |
| 19 | ROLLER PIN 6 | |
| 20 | OUTER FLANGE 40 (new) | |
| 20 | OUTER FLANGE 40 (old) | |
| 21 | HEX. SOCKET HEAD BOLT M6X16 (new) | |
| 21 | HEX. SOCKET HEAD BOLT M6X20 (old) | |
| 22 | MAKITA MARK | |
| 23 | TAPPING SCREW BIND CT 4X20 | |
| 24 | BLADE CASE COVER (new) | |
| 24 | BLADE CASE COVER (old) | |
| 25 | BLADE CASE COMPLETE INC. 52 (new) | |
| 25 | BLADE CASE COMPLETE INC. 52 (old) | |
| 26 |  |
COMPRESSION SPRING 5 |
| 27 |  |
BALL BEARING 6201DDW |
| 28 |  |
SHAFT LOCK |
| 29 |  |
FAN 76 |
| 30 |  |
ARMATURE ASS\\\'Y 220V INC. 27,29,32,33 |
| 31 |  |
BAFFLE PLATE |
| 32 |  |
INSULATION WASHER |
| 33 |  |
BALL BEARING 608DDW (new) |
| 33 |  |
BALL BEARING 608LLB (old) |
| 34 |  |
FIELD 220V |
| 35 |  |
SUPPORT COMPLETE |
| 36 |  |
TAPPING SCREW 5X65 (new) |
| 36 |  |
TAPPING SCREW FLANGE PF 5X65 (old) |
| 37 |  |
LEVER 54 |
| 38 |  |
RING SPRING 12 |
| 39 |  |
HEX. NUT M8 |
| 40 |  |
TAPPING SCREW 5X25 (new) |
| 40 |  |
TAPPING SCREW FLANGE PF 5X25 (old) |
| 41 |  |
HANDLE SET INC. 54 |
| 42 |  |
NAME PLATE 5703R |
| 43 |  |
SWITCH LEVER |
| 44 |  |
SWITCH TG71B |
| 45 |  |
COMPRESSION SPRING 4 |
| 46 |  |
LOCK-OFF BUTTON |
| 47 |  |
TAPPING SCREW 4X18 (new) |
| 47 |  |
TAPPING SCREW FLANGE PF 4X18 (old) |
| 48 |  |
STRAIN RELIEF (new) |
| 48 |  |
CORD CLAMP (old) |
| 49 |  |
NOISE SUPPRESSOR 220/240V (new) |
| 49 |  |
NOISE SUPPRESSOR 220/240V (old) |
| 50 |  |
CORD GUARD 9.3-90 (new) |
| 50 |  |
CORD GUARD 8-90 (old) |
| 51 |  |
POWER SUPPLY CORD 1.0-2-2.5 (new) |
| 51 |  |
POWER SUPPLY CORD 1.5-2-2.5 (old) |
| 52 |  |
RUBBER PIN 6 |
| 53 |  |
RUBBER SLEEVE 6 |
| 54 |  |
HANDLE SET INC. 41 |
| 55 |  |
PIPE 9 |
| 56 |  |
FLAT WASHER 8 |
| 57 |  |
WING NUT M6 |
| 58 |  |
FLAT WASHER 6 |
| 59 |  |
SPRING PIN 6-16 |
| 60 |  |
HEX. BOLT M6X20 |
| 61 |  |
DEPTH GUIDE |
| 62 |  |
MOTOR HOUSING COMPLETE |
| 63 |  |
PAN HEAD SCREW M5X55 |
| 64 |  |
CARBON BRUSH CB-303 |
| 65 |  |
BRUSH HOLDER CAP |
| 66 |  |
HEX. BOLT M6X20 |
| 67 |  |
ANGULAR PLATE GUIDE |
| 68 |  |
WING BOLT M6X10 (new) |
| 68 | SCREW M6X10 (old) | |
| 69 | FLAT WASHER 6 | |
| 70 | WING NUT M6 | |
| 71 | TAPPING SCREW 4X18 (new) | |
| 71 | TAPPING SCREW FLANGE PF 4X18 (old) | |
| 72 | PIN 10 | |
| 73 | BASE (new) | |
| 73 | BASE (old) | |
| 74 | BEARING RETAINER 19-34 | |
| 75 | FLAT WASHER 22 | |
| 76 | TAPPING SCREW BIND CT 4X12 | |
| 77 | O RING 44 | |
| A01 | GUIDE RULE | |
| A02 | HEX. WRENCH 5 | |
| A03 | T.C.T. SAW BLADE 190MM | |
| E03 | JOINT | |
| E04 | PLASTIC CARRYING CASE (new) | |
| E04 | PLASTIC CARRYING CASE (old) | |
| E06 | INNER TRAY |
