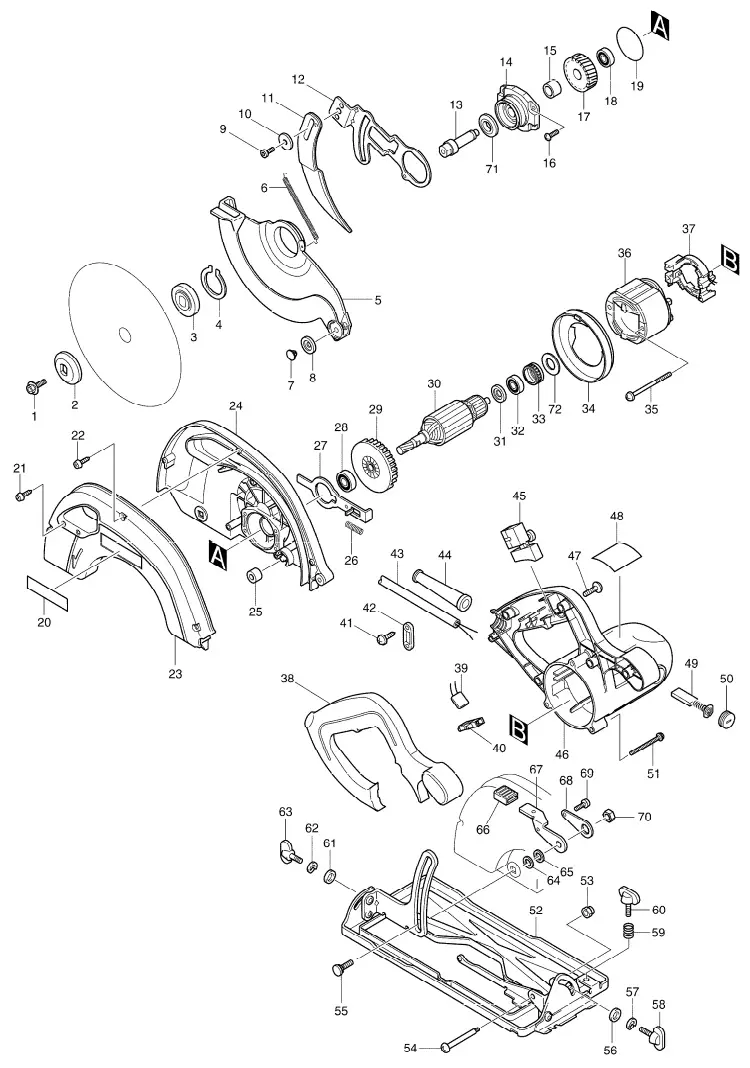

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HEX. SOCKET HEAD BOLT M6X20 |
| 2 |  |
OUTER FLANGE 40 |
| 3 |  |
INNER FLANGE 40 |
| 4 |  |
RETAINING RING S-40 |
| 5 |  |
SAFETY COVER |
| 6 |  |
TENSION SPRING 4 |
| 7 |  |
ROLLER PIN 6 |
| 8 |  |
ROLLER 20 |
| 9 |  |
HEX. SOCKET HEAD BOLT M6X12 |
| 10 |  |
FLAT WASHER 6 |
| 11 |  |
RIVING KNIFE |
| 12 |  |
RIVING KNIFE HOLDER |
| 13 |  |
SPINDLE |
| 14 |  |
BEARING BOX COMPLETE |
| 15 |  |
SLEEVE 12 |
| 16 |  |
PAN HEAD SCREW M4X16 |
| 17 |  |
HELICAL GEAR 49 |
| 18 |  |
BALL BEARING 608ZZ |
| 19 |  |
O RING 46 |
| 21 |  |
TAPPING SCREW CT 4X16 |
| 22 |  |
TAPPING SCREW CT 4X16 |
| 23 |  |
BLADE CASE COVER |
| 24 |  |
BLADE CASE COMPLETE |
| 25 |  |
RUBBER SLEEVE 6 |
| 26 |  |
COMPRESSION SPRING 5 |
| 27 |  |
SHAFT LOCK |
| 28 |  |
BALL BEARING 6000LLB |
| 29 |  |
FAN 70 |
| 30 |  |
ARMATURE ASS\\\'Y 220-240V INC. 28,29,31,32 |
| 31 |  |
INSULATION WASHER |
| 32 |  |
BALL BEARING 608ZZ |
| 33 |  |
RUBBER RING 22 |
| 34 |  |
BAFFLE PLATE |
| 35 |  |
TAPPING SCREW 5X60 |
| 36 |  |
FIELD 220-240V |
| 37 |  |
SUPPORT COMPLETE |
| 38 |  |
HANDLE COVER |
| 39 |  |
NOISE SUPPRESSOR |
| 40 |  |
TERMINAL BLOCK |
| 41 |  |
TAPPING SCREW 4X18 |
| 42 |  |
STRAIN RELIEF |
| 43 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 44 |  |
CORD GUARD 9.3-90 |
| 45 |  |
SWITCH SGES115C-5 |
| 46 |  |
MOTOR HOUSING COMPLETE |
| 47 |  |
TAPPING SCREW 4X18 |
| 48 |  |
NAME PLATE 5704R |
| 49 |  |
CARBON BRUSH CB-303 |
| 50 |  |
BRUSH HOLDER CAP 7-11 |
| 51 |  |
PAN HEAD SCREW M5X45 |
| 52 |  |
BASE |
| 53 | HEX. LOCK NUT M5-8 | |
| 54 | PAN HEAD SCREW M5 | |
| 55 | CAP SQUARE NECK BOLT M8X24 | |
| 56 | FLAT WASHER 6 | |
| 57 | SPRING WASHER 6 | |
| 58 | SCREW M6X14 | |
| 59 | COMPRESSION SPRING 7 | |
| 60 | SCREW M6X14 | |
| 61 | FLAT WASHER 6 | |
| 62 | SPRING WASHER 6 | |
| 63 | SCREW M6X14 | |
| 64 | FLAT WASHER 8 | |
| 65 | FLAT WASHER 8 | |
| 66 | RUBBER CAP | |
| 67 | LEVER PLATE | |
| 68 | LOCK PLATE | |
| 69 | PAN HEAD SCREW M4X8 | |
| 70 | HEX. NUT M8 | |
| 71 | RING 12 | |
| 72 | RUBBER WASHER 13 | |
| A01 | T.C.T.SAW BLADE 190X30X12T | |
| A02 | GUIDE RULE | |
| A03 | JOINT | |
| A04 | HEX. WRENCH 5 | |
| A05 | M-FORCE STICKER LABEL | |
| A06 | TCT SAW BLADE(GOST)190X30X12T | |
| E01 | PLASTIC CARRYING CASE |
