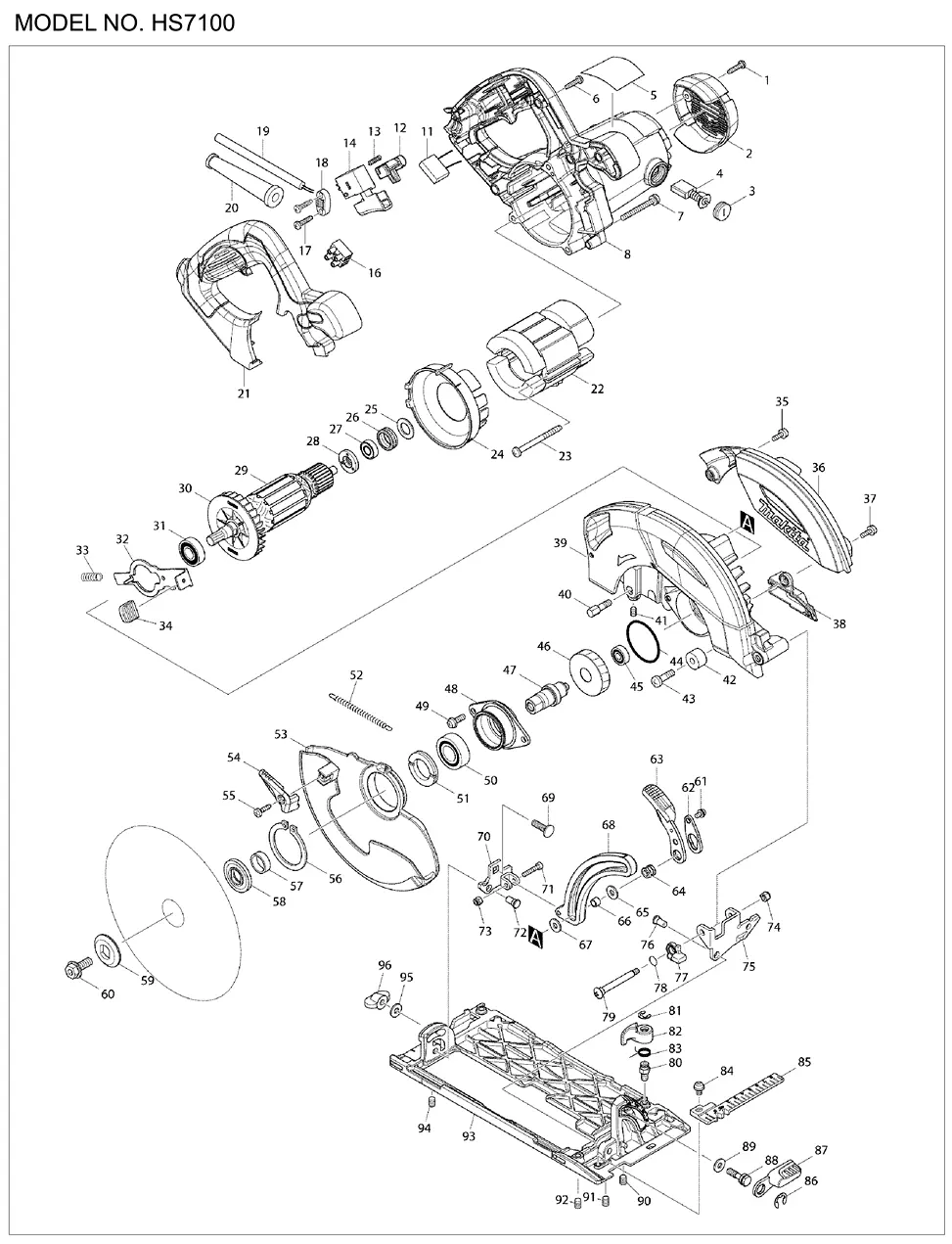

HS7100 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X18 | |
| 2 | REAR COVER | |
| 3 | BRUSH HOLDER CAP 6.5-13.5 | |
| 4 | CARBON BRUSH SET CB-174 | |
| 5 | HS7100 NAME PLATE | |
| 6 | TAPPING SCREW 4X18 | |
| 7 | PAN HEAD SCREW M5X45 | |
| 8 | MOTOR HOUSING COMPLETE | |
| 11 | NOISE SUPPRESSOR | |
| 12 | LOCK OFF BUTTON | |
| 13 | COMPRESSION SPRING 4 | |
| 14 | SWITCH SGE115CDY-10 | |
| 16 | TERMINAL BLOCK 1P | |
| 17 | TAPPING SCREW 4X18 | |
| 18 | STRAIN RELIEF | |
| 19 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 20 | CORD GUARD 9.3-90 | |
| 21 | HANDLE COVER | |
| 22 | FIELD ASS\\\'Y 220-240 | |
| 23 | TAPPING SCREW 5X60 | |
| 24 | BAFFLE PLATE | |
| 25 | RUBBER WASHER 13 | |
| 26 | RUBBER RING 19 | |
| 27 | BALL BEARING 698ZZ | |
| 28 | INSULATION WASHER | |
| 29 | ARMATURE ASS\\\'Y 220V INC. 27,28,30,31 | |
| 30 | FAN 70 | |
| 31 | BALL BEARING 6001DDW | |
| 32 | SHAFT LOCK | |
| 33 | COMPRESSION SPRING 7 | |
| 34 | CAP | |
| 35 | PAN HEAD SCREW M4X12 | |
| 36 | BLADE COVER | |
| 37 | PAN HEAD SCREW M4X12 | |
| 38 | DUCT | |
| 39 | BLADE CASE COMPLETE | |
| 40 | HEX.BOLT M6X18 | |
| 41 | H.S.SET SCREW(CUP POINT)M5X8 | |
| 42 | RUBBER SLEEVE 6 | |
| 43 | + PAN HEAD SCREW M6X20 | |
| 44 | O RING 44 | |
| 45 | BALL BEARING 607ZZ | |
| 46 | HELICAL GEAR 43 | |
| 47 | SPINDLE | |
| 48 | BEARING BOX | |
| 49 | PAN HEAD SCREW M5X16 | |
| 50 | BALL BEARING 6003DDW | |
| 51 | BEARING RETAINER 23-36 | |
| 52 | TENSION SPRING 4 | |
| 53 |  |
SAFETY COVER |
| 54 |  |
LEVER 37 |
| 55 |  |
TAPPING SCREW CT 4X16 |
| 56 |  |
RETAINING RING S-42 |
| 57 |  |
RING 17 |
| 58 |  |
INNER FLANGE 35 |
| 59 |  |
OUTER FLANGE 35 |
| 60 |  |
HEX. SOCKET HEX. BOLT M8X20 |
| 61 |  |
PAN HEAD SCREW M4X8 |
| 62 |  |
LOCK PLATE |
| 63 |  |
LEVER 70 |
| 64 |  |
HEX. NUT M6 |
| 65 |  |
FLAT WASHER 6 |
| 66 |  |
SLEEVE 6 |
| 67 |  |
FLAT WASHER 6 |
| 68 |  |
DEPTH GUIDE COMPLETE |
| 69 |  |
CAP SQUARE NECK BOLT M6X20 |
| 70 |  |
REAR ANGULAR GUIDE |
| 71 |  |
HEX. SOCKET HEAD BOLT M4X20 |
| 72 |  |
SHOULDER PIN 6-7 |
| 73 |  |
HEX. LOCKING NUT M4-7 |
| 74 |  |
HEX. LOCK NUT M5-8 |
| 75 |  |
ANGULAR GUIDE |
| 76 |  |
SHOULDER PIN 6-7 |
| 77 |  |
STOPPER |
| 78 |  |
O RING 9 |
| 79 |  |
+ TRUSS HEAD SCREW M5 |
| 80 |  |
HEX. BOLT M6X10 |
| 81 |  |
STOP RING E-6 |
| 82 |  |
LOCK LEVER |
| 83 |  |
TORSION SPRING 11 |
| 84 |  |
PAN HEAD SCREW M5X8 |
| 85 |  |
TOP GUIDE |
| 86 |  |
BOW STOP RING E-8 |
| 87 |  |
LEVER 45 |
| 88 |  |
HEX.BOLT M6X20 |
| 89 |  |
FLAT WASHER 6 |
| 90 |  |
H.S.SET SCREW(CUP POINT)M6X8 |
| 91 |  |
H.S.SET SCREW(CUP POINT)M6X8 |
| 92 |  |
H.S.SET SCREW(CUP POINT)M6X8 |
| 93 |  |
BASE |
| 94 |  |
H.S.SET SCREW(CUP POINT)M6X8 |
| 95 |  |
FLAT WASHER 6 |
| 96 |  |
SCREW M6 |
| A01 |  |
GUIDE RULE |
| A02 |  |
DUST NOZZLE |
| A03 |  |
PAN HEAD SCREW M4X16 |
| A04 |  |
T.C.T. SAW BLADE 190MM |
| A05 |  |
HEX. WRENCH 6 |
