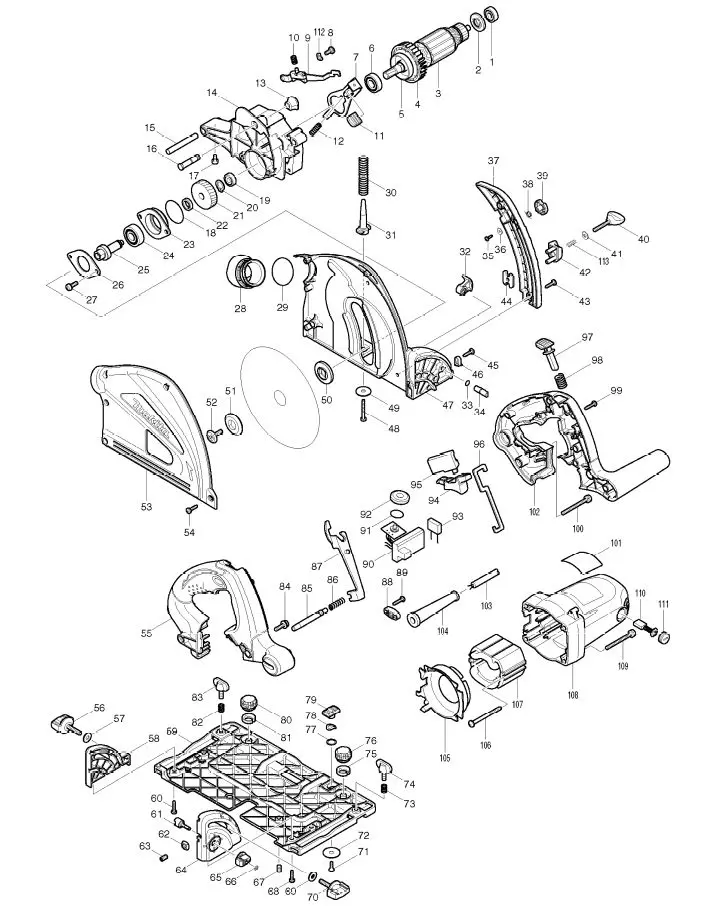

Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | BALL BEARING 698VV 1 | |
| 2 | INSULATION WASHER 1 | |
| 3 | ARMATURE ASS\\\'Y 220-240V 1 | |
| 4 | FAN 60 1 | |
| 5 | DRUM 1 | |
| 6 | BALL BEARING 6001DDW 1 | |
| 7 | SHAFT LOCK 1 | |
| 8 | + BINDING HEAD SCREW M5 1 | |
| 9 | SHOE COMPLETE 1 | |
| 10 | COMPRESSION SPRING 7 1 | |
| 11 | CAP 1 | |
| 12 | COMPRESSION SPRING 6 1 | |
| 13 | CAP 1 | |
| 14 | GEAR HOUSING COMPLETE 1 | |
| 15 | PIN 8 1 | |
| 16 | STOPPER PIN 8 1 | |
| 17 | HEX. SOCKET HEAD BOLT M5X | |
| 18 | O RING 39 1 | |
| 19 | BALL BEARING 607LLB 1 | |
| 20 | RETAINING RING S-12 1 | |
| 21 | HELICAL GEAR 39 1 | |
| 22 | RING 12 1 | |
| 23 | BEARING BOX 1 | |
| 24 | BALL BEARING 6201DDW 1 | |
| 25 | SPINDLE 1 | |
| 26 | BEARING RETAINER 55 1 | |
| 27 | PAN HEAD SCREW M5X16 2 | |
| 28 | DUST NOZZLE 1 | |
| 29 | O RING 35 1 | |
| 30 | COMPRESSION SPRING 11 1 | |
| 31 | SPRING HOLDER 1 | |
| 32 | LEVER 20 COMPLETE 1 | |
| 33 | O RING 5 1 | |
| 34 | PIN 8 1 | |
| 35 | TAPPING SCREW BIND PT 3X1 | |
| 36 | FLAT WASHER 3 1 | |
| 37 | DEPTH GUIDE 1 | |
| 38 | TORSION SPRING 7 1 | |
| 39 | LOCK LEVER 1 | |
| 40 | SCREW M5X30 1 | |
| 41 | FLAT WASHER 5 1 | |
| 42 | STOPPER BLOCK 1 | |
| 43 | TAPPING SCREW CT 4X16 2 | |
| 44 | NUT PLATE 1 | |
| 45 | TAPPING SCREW CT 4X16 1 | |
| 46 | POSITION PLATE 1 | |
| 47 | BLADE CASE COMPLETE 1 | |
| 48 | TAPPING SCREW 4X35 1 | |
| 49 | FLAT WASHER 6 1 | |
| 50 | INNER FLANGE 35 1 | |
| 51 | OUTER FLANGE 35 1 | |
| 52 | HEX. SOCKET HEAD BOLT M6 | |
| 53 | BLADE CASE COVER 1 | |
| 54 | TAPPING SCREW CT 4X16 5 | |
| 55 | HANDLE SET 1 | |
| 56 | THUMB SCREW M6X26 1 | |
| 57 | FLAT WASHER 6 1 | |
| 58 | REAR ANGULAR GUIDE 1 | |
| 59 | BASE 1 | |
| 60 | TAPPING SCREW 4X18 2 | |
| 61 | STOPPER PIN 1 | |
| 62 | SQUARE NUT M6 1 | |
| 63 | H.S.SET SCREW(FLAT POINT) | |
| 64 | FRONT ANGULAR GUIDE 1 | |
| 65 | DIAL 22 1 | |
| 66 | STOP RING E-3 1 | |
| 67 | H.S.SET SCREW(FLAT POINT) | |
| 68 | TAPPING SCREW 4X18 2 | |
| 69 | FLAT WASHER 6 1 | |
| 70 | THUMB SCREW M6X26 1 | |
| 71 | COUNTERSUNK HEAD SCREW M4 | |
| 72 | LOCK WASHER 1 | |
| 73 | COMPRESSION SPRING 7 1 | |
| 74 | SCREW M6X14 1 | |
| 75 | HOLDER 1 | |
| 76 | THUMB SCREW M4X3 1 | |
| 77 | ** *********************** * | |
| 78 | WAVE WASHER 10 1 | |
| 79 | SLIDE LEVER 1 | |
| 80 | THUMB SCREW M4X3 1 | |
| 81 | HOLDER 1 | |
| 82 | COMPRESSION SPRING 7 1 | |
| 83 | SCREW M6X14 1 | |
| 84 | HEX. SOCKET HEAD BOLT M5X | |
| 85 | LOCK PIN 8 1 | |
| 86 | COMPRESSION SPRING 7 1 | |
| 87 | LOCK PLATE 1 | |
| 88 | STRAIN RELIEF 1 | |
| 89 | TAPPING SCREW 4X18 2 | |
| 90 | CONTROLLER 1 | |
| 91 | O RING 17 1 | |
| 92 | DIAL 1 | |
| 93 | NOISE SUPPRESSOR 1 | |
| 94 | SWITCH LEVER 1 | |
| 95 | SWITCH TG71B 1 | |
| 96 | LINK PLATE 1 | |
| 97 | LOCK OFF BUTTON 1 | |
| 98 | COMPRESSION SPRING 12 1 | |
| 99 | TAPPING SCREW 4X18 6 | |
| 100 | PAN HEAD SCREW M5X50 1 | |
| 101 | SP6000 NAME PLATE 1 | |
| 102 | HANDLE SET 1 | |
| 103 | POWER SUPPLY CORD 1.0-2-4 | |
| 104 | CORD GUARD 9.3-90 1 | |
| 105 | BAFFLE PLATE 1 | |
| 106 | TAPPING SCREW 5X60 2 | |
| 107 | FIELD ASS\\\'Y 220-240V 1 | |
| 108 | MOTOR HOUSING COMPLETE 1 | |
| 109 | PAN HEAD SCREW M5X50 4 | |
| 110 | CARBON BRUSH CB-303 1 | |
| 111 | BRUSH HOLDER CAP 2 | |
| 112 | WAVE WASHER 7 1 | |
| 113 | COMPRESSION SPRING 5 1 | |
| 115 | RUBBER RING 19 1 | |
| 116 | PACKING 1 | |
| 117 | SPONGE 1 | |
| 118 | FELT 1 | |
| A01 | TCT SAW BLADE 165X20X48T 1 | |
| A02 | HEX. WRENCH 5 1 | |
| A03 | ** *********************** * | |
| A04 | SP6000K PLASTIC CASE LABE |
