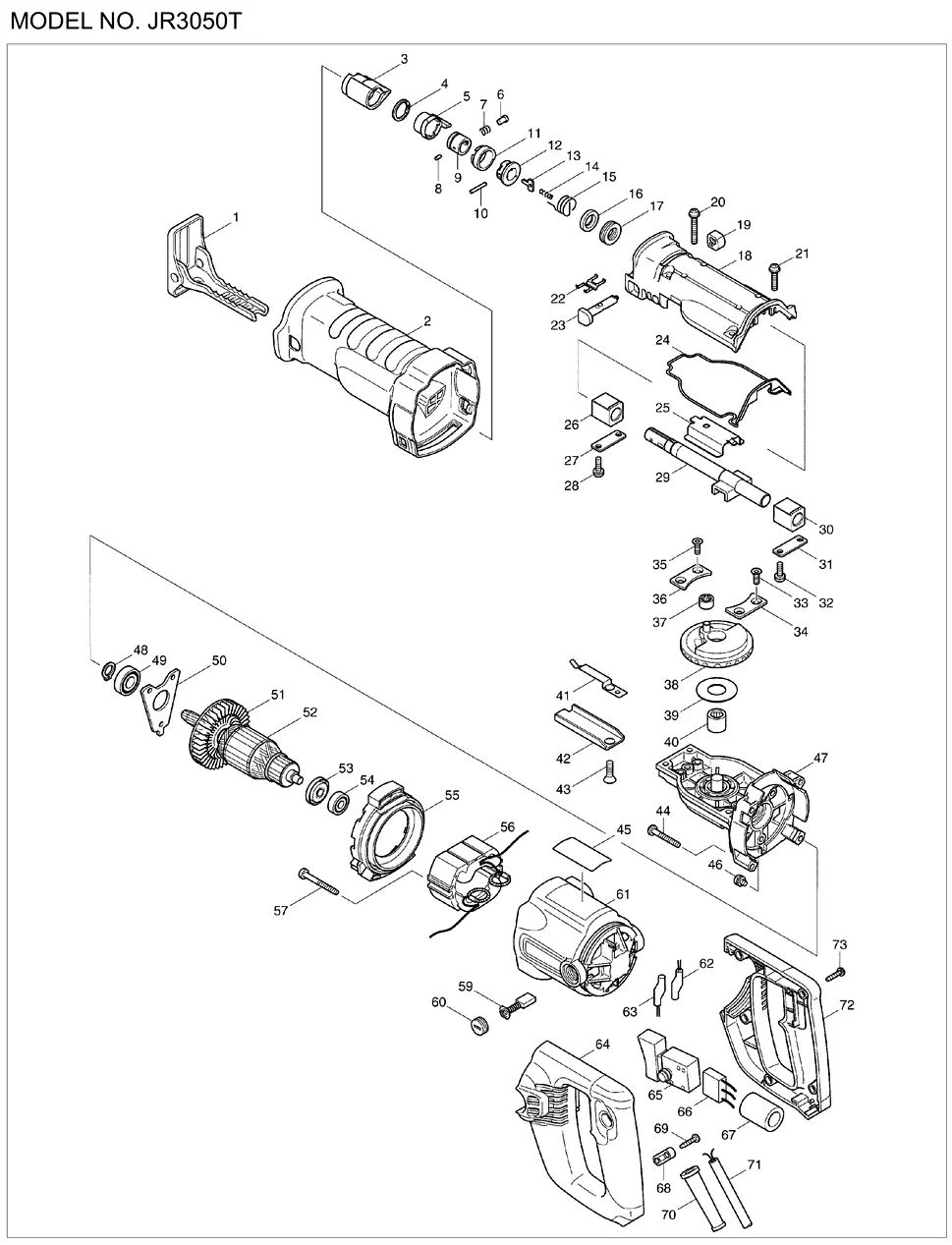

JR3050T Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SHOE | |
| 2 | INSULATION COVER | |
| 3 | PROTECTOR (new) | |
| 3 | PROTECTOR (old) | |
| 4 | RETAINING RING (EXT) 18 (new) | |
| 4 | RETAINING RING (EXT) S-18 (old) | |
| 5 | DRIVING SLEEVE (new) | |
| 5 | DRIVING SLEEVE (old1) | |
| 5 | DRIVING SLEEVE (old2) | |
| 6 | SHOULDER PIN 5 (new) | |
| 6 | SHOULDER PIN 5 (old) | |
| 7 | COMPRESSION SPRING 6 | |
| 8 | PIN 3 | |
| 9 | GUIDE SLEEVE (new) | |
| 9 | GUIDE SLEEVE (old) | |
| 10 | PIN 3 | |
| 11 | DRIVING SLEEVE GUIDE | |
| 12 | SLEEVE | |
| 13 | PUSH PLATE | |
| 14 | COMPRESSION SPRING 2 | |
| 15 | TORSION SPRING 17 (new) | |
| 15 | TORSION SPRING 17 (old) | |
| 16 | OIL SEAL 14 | |
| 17 | X RING 14 | |
| 18 | GEAR HOUSING COVER COMPLETE INC. 16,17 | |
| 19 | CAP | |
| 20 | PAN HEAD SCREW M5X35 | |
| 21 | PAN HEAD SCREW M5X25 | |
| 22 | LEAF SPRING A | |
| 23 | SHIFT BUTTON | |
| 24 | SEAL RING | |
| 25 | SLIDE PLATE | |
| 26 | PLANE BEARING 14 | |
| 27 | PLATE | |
| 28 | PAN HEAD SCREW M5X16 | |
| 29 | SLIDER (new) | |
| 29 | SLIDER COMPLETE (old1) | |
| 29 | SLIDER (old2) | |
| 30 | PLANE BEARING 14 | |
| 31 | PLATE | |
| 32 | PAN HEAD SCREW M5X16 | |
| 33 | TORX SOCKET HEAD SCREW M5X14 | |
| 34 | GEAR PLATE | |
| 35 | TORX SOCKET HEAD SCREW M5X14 | |
| 36 | GEAR PLATE | |
| 37 | NEEDLE BEARING 708 (new) | |
| 37 | NEEDLE BEARING 708 (old) | |
| 38 | GEAR ASS\\\'Y INC.40 (new) | |
| 38 | GEAR COMPLETE (old) | |
| 39 | FLAT WASHER 18 | |
| 40 | NEEDLE BEARING 1216 | |
| 41 | LEAF SPRING B | |
| 42 | SHOE GUIDE | |
| 43 | TORXSOCKET C.S.HEADSCREW M6X16 (new) | |
| 43 | + COUNTERSUNK HEAD SCREW M6X16 (old) | |
| 44 | TAPPING SCREW 5X35 (new) | |
| 44 | TAPPING SCREW 5X35 (old) | |
| 45 | NAME PLATE JR3050T | |
| 46 | HEX.SOCKET HEAD BOLT M5X8 (new) | |
| 46 | PAN HEAD SCREW M5X10 (old) | |
| 47 | GEAR HOUSING COMPLETE | |
| 48 | RETAINING RING S-12 | |
| 49 | BALL BEARING 6001DDW | |
| 50 | BEARING RETAINER | |
| 51 | FAN 70 | |
| 52 | ARMATURE ASS\\\'Y 220-240V INC. 51,53,54 | |
| 53 | INSULATION WASHER | |
| 54 | BALL BEARING 608ZZ | |
| 55 | BAFFLE PLATE | |
| 56 | FIELD ASS\\\'Y 220-240V | |
| 57 | TAPPING SCREW 5X45 (new) | |
| 57 | TAPPING SCREW 5X45 (old1) | |
| 57 | TAPPING SCREW 5X45 (old2) | |
| 59 | CARBON BRUSH CB-303 | |
| 60 | BRUSH HOLDER CAP | |
| 61 | MOTOR HOUSING COMPLETE | |
| 64 | HANDLE SET INC. 72 | |
| 65 | SWITCH TG843TB-1 | |
| 66 | NOISE SUPPRESSOR | |
| 67 | SPONGE | |
| 68 | STRAIN RELIEF (new) | |
| 68 | CORD CLAMP (old) | |
| 69 | TAPPING SCREW 4X18 | |
| 70 | CORD GUARD 10 (new) | |
| 70 | CORD GUARD 8 (old) | |
| 71 | POWER SUPPLY CORD 1.0-2-4.0 (new) | |
| 71 | POWER SUPPLY CORD 1.0-2-4.0 (old) | |
| 72 | HANDLE SET INC. 64 | |
| 73 | TAPPING SCREW 4X18 | |
| 74 | GEAR HOUSING COVER ASSEMBLY INC. 3-15,18,19,22,23,25-32 | |
| A01 | PLASTIC CARRYING CASE (new) | |
| A01 | PLASTIC CARRYING CASE (old) | |
| A02 | RECIPRO SAW BLADE FOR METAL (new) | |
| A02 | RECIPRO SAW BLADE SET (old) | |
| A03 | RECIPRO SAW BLADE FOR PLYWOOD | |
| A04 | RECIPRO SAW BLADE FOR WOOD |
