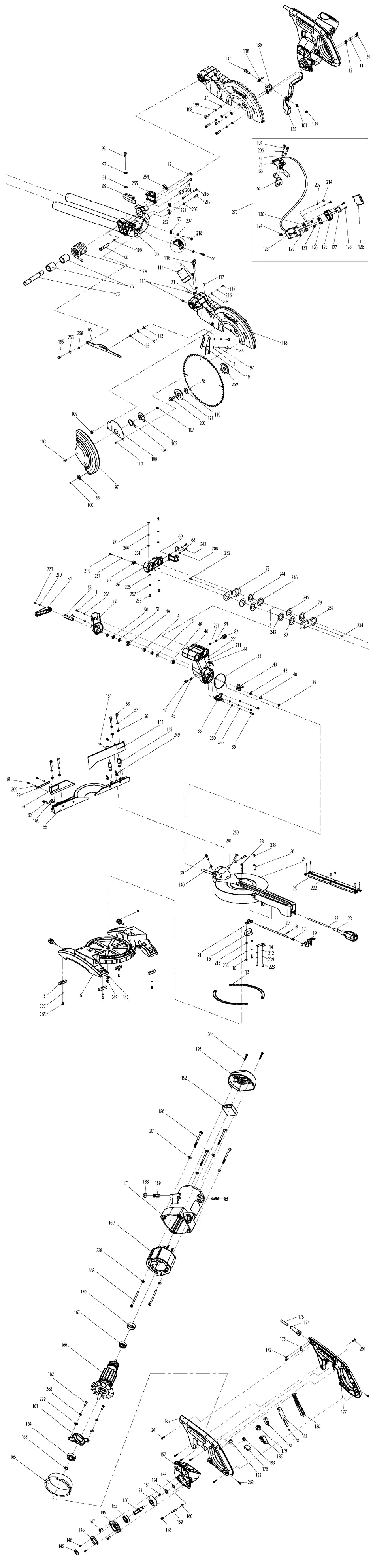

| П-п | Арт | Название |
|---|---|---|
| 1 | CROSS HEAD SCREW M5X20 | |
| 2 | FLAT WASHER 5 | |
| 3 | PAD | |
| 4 | LOCKNUT M10 | |
| 5 | FLAT WASHER 10 | |
| 6 | BASE COMPLETE INC. 7 | |
| 7 | MITER SCALE LABEL | |
| 9 | KNOB FOR EXT.WING | |
| 10 | CROSS HEAD SCREW M4X15 | |
| 11 | SPRING WASHER 4 | |
| 12 | FLAT WASHER 4 | |
| 13 | FRICTION PLATE | |
| 14 | LOCK PLATE A | |
| 15 | CROSS HEAD SCREW M4X18 | |
| 16 | LOCK PLATE B | |
| 17 | LOCK SPRING | |
| 18 | LOCK PIN | |
| 19 | PRESS PLATE | |
| 20 |  |
LOCK SHAFT B |
| 21 |  |
WORKING TABLE LOCKING BRACKET |
| 22 |  |
LOCK SHAFT A |
| 23 |  |
MITER LOCKING HANDLE |
| 24 |  |
WORKING TABLE COMPLETE INC. 32,34,35 |
| 25 |  |
TABLE INSERT |
| 26 |  |
MITER POINTER |
| 27 |  |
CROSS HEAD SCREW M5X15 |
| 28 |  |
PIVOT SHAFT |
| 29 |  |
CROSS HEAD SCREW M4X12 |
| 30 |  |
HEX BOLT M6X28 |
| 31 |  |
ANTI-LOOSEN RING |
| 32 |  |
BEVEL SCALE |
| 33 |  |
FRICTION RING |
| 34 |  |
ELASTIC PIN 4X20 |
| 35 |  |
LOCKING ROD |
| 36 |  |
H.S.BOLT M6X20 |
| 37 |  |
FLAT WASHER |
| 38 |  |
45DEGREE LIMIT BRACKET |
| 39 |  |
RETAINING RING 10 |
| 40 |  |
FLAT WASHER 12X20X1 |
| 41 |  |
ANGLE LIMIT SHAFT |
| 42 |  |
90DEGREE BLOCK SPRING |
| 43 |  |
90DEGREE BLOCK |
| 44 |  |
BEVEL POINTER |
| 45 |  |
MITER PRESSION SPRING |
| 46 |  |
SUPPORT ARM COMPLETE INC. 77,79-81,83,243-246,256,79-80,243-246 |
| 47 |  |
LIMITED KNOB |
| 48 |  |
CLAMP PLATE |
| 49 |  |
BOWL TYPE PLATE |
| 50 |  |
SURFACE BEARING |
| 51 |  |
BIG FLAT WASHER 10X26X2.5 |
| 52 |  |
SLIDING BRACKET COVER |
| 53 |  |
HEX NUT |
| 54 |  |
BEVEL LOCKING HANDLE |
| 55 |  |
RIP FENCE |
| 56 |  |
FLAT WASHER 8 |
| 57 |  |
SPRING WASHER 8 |
| 58 |  |
HEX BOLT M8X30 |
| 59 |  |
KEY |
| 60 |  |
SUB FENCE COMPLETE |
| 61 |  |
CROSS HEAD SCREW M4X8 |
| 62 |  |
WING KNOB M6X20 |
| 63 |  |
H.S.BOLT M4X12 |
| 64 |  |
LASER MOVING FIX PLATE |
| 65 |  |
LASER CORD CLAMP |
| 66 |  |
LASER |
| 67 |  |
THIN FLAT WASHER 6 |
| 68 |  |
CORD CLAMP |
| 69 |  |
CORD WRAP BRACKET |
| 70 |  |
UP BLADE GUARD BRACKET CMPLT INC. 76,141 |
| 71 | LASER BASE | |
| 72 | H.S.SCREW M4X10 | |
| 73 | CONNECTION SHAFT | |
| 74 | TORSION SPRING | |
| 75 | LOCATION TUBE | |
| 76 | SLIDING BAR | |
| 77 | BUFFER | |
| 78 | BEARING BAFFLE | |
| 79 | LIMITED BRACKET | |
| 80 | DUSTPROOF RING | |
| 81 | LINEAR BEARING | |
| 82 | SLIDING BAR LOCKING KNOB | |
| 83 | LOCK SCREW M6X8 | |
| 84 | PRESSURE SPRING | |
| 85 | CROSS HEAD SCREW M5X12 | |
| 86 | SLIDING BAR REAR COVER | |
| 87 | WRENCH CLIP | |
| 89 | CUTTING DEPTH ADJUSTABLE PLATE | |
| 90 | PIN C | |
| 91 | WAVE SPRING WASHER | |
| 92 | FLAT WASHER 8X14X1 | |
| 93 | DEPTH ADJUSTABLE PLATE BOLT | |
| 94 | PIN CAP | |
| 95 | LINK SLEEVE | |
| 96 | LINK | |
| 97 | LOWER BLADE GUARD COMPLETE INC. 98,101,102 | |
| 98 | GUARD RIVET | |
| 99 | GUARD WHEEL | |
| 100 | WHEEL LOCK RING | |
| 101 | FLAT WASHER 5 | |
| 102 | LOWER BLADE GUARD PLATE | |
| 103 | SQUARE NECK BOLT M6X12 | |
| 104 | GUARD SPRING | |
| 105 | BOWL PLATE | |
| 106 |  |
GUARD FIX PLATE |
| 107 |  |
LOCKNUT M6 |
| 108 |  |
H.S.BOLT M6X22 |
| 109 |  |
HEX BOLT FOR GUARD |
| 110 |  |
CROSSHEAD SCREW FOR GUARD |
| 111 |  |
LINK PIN |
| 112 |  |
RETAINING RING 5 |
| 113 |  |
LOCK SCREW M6X12 |
| 114 |  |
DUST PORT |
| 115 |  |
HEX BOLT M6X25 |
| 116 |  |
LIMITED KNOB |
| 117 |  |
H.S.SCREW M6X15 |
| 118 |  |
UP BLADE GUARD COMPLETE INC. 143 |
| 119 |  |
DUST GUIDE PLATE |
| 120 |  |
COPPER CONNECTION PLATE |
| 121 |  |
BLADE FLANGE |
| 123 |  |
BATTERY BOX |
| 124 |  |
LASER CORD TUBE |
| 125 |  |
LASER SWITCH COVER |
| 126 |  |
BATTERY BOX COVER |
| 127 |  |
LASER SWITCH |
| 128 |  |
SELF-TAPPING SCREW 2.9X12 |
| 129 |  |
ANODE COPPER SHEET |
| 130 |  |
CATHODE COPPER SHEET |
| 131 |  |
BATTERY BOX SPRING |
| 132 |  |
RIGHT SUB FENCE CONNECTION PIN |
| 133 |  |
RIGHT SUB FENCE COMPLETE |
| 134 |  |
H.S.SCREW WITH DOG POINT M6X10 |
| 135 |  |
LOCK LEVER |
| 136 |  |
LOCK LEVER BRACKET |
| 137 |  |
LEVER SCREW |
| 138 |  |
LEVER SPRING |
| 139 |  |
LOCKNUT M5 |
| 140 |  |
BLADE INNER RING |
| 141 |  |
ELASTIC PIN 5X30 |
| 142 |  |
BIG FLAT WASHER 10 |
| 143 |  |
BUFFER |
| 145 |  |
OUTPUT SHAFT RING 15.88 |
| 146 |  |
COUNTERSUNK HEAD BOLT M4X10 |
| 147 |  |
COUNTERSUNK HEAD BOLT M6X15 |
| 148 |  |
BEARING PRESS PLATE |
| 149 |  |
BEARING COVER |
| 150 |  |
OUTPUT SHAFT |
| 151 |  |
KEY 4X10 |
| 152 |  |
BEARING 6003 |
| 153 |  |
GEAR |
| 154 |  |
SHAFT WASHER |
| 155 |  |
RETAINING RING 14 |
| 156 |  |
OIL BUSH |
| 157 |  |
GEAR BOX COMPLETE INC. 156 |
| 158 |  |
GEAR LOCK SPRING |
| 159 | GEAR LOCK PIN | |
| 160 | RETAINING RING 10.5X1 | |
| 161 | SHAFT FIX COVER | |
| 162 | CROSS HEAD SCREW M5X18 | |
| 163 | RETAINING RING 16 | |
| 164 | BEARING 6003 | |
| 165 | BAFFLE RING | |
| 166 | ROTOR ASSEMBLY | |
| 167 | BEARING 6001 | |
| 168 | SELF-TAPPING SCREW M5X70 | |
| 169 | STATOR ASSEMBLY | |
| 170 | ABSORBER RING | |
| 171 | MOTOR HOUSE COMPLETE INC. 190,191 | |
| 172 | SELF TAPPING SCREW M4X16 | |
| 173 | CORD CLAMP | |
| 174 | PROTECTION TUBE | |
| 175 | POWER SUPPLY CORD | |
| 176 | CAPACITOR | |
| 177 | RIGHT HANDLE | |
| 178 | SWITCH HANDLE SPRING | |
| 179 | TERMINAL POLE | |
| 180 | SWITCH HANDLE | |
| 181 | SWITCH LOCK PLATE | |
| 182 | BRAKE SYSTEM SWITCH KEY | |
| 183 | SWITCH LOCK BRACKET | |
| 184 | BRAKE SYSTEM SWITCH | |
| 185 | ELECTRIC SWITCH | |
| 186 | CROSS HEAD SCREW M6X50 | |
| 187 | LEFT HANDLE | |
| 188 | SCREW CAP | |
| 189 | CARBON BRUSH | |
| 190 | CARBON BRUSH HOUSE | |
| 191 | H.S.SCREW M5X8 | |
| 192 | SOFT STARTER | |
| 193 | MOTOR REAR COVER | |
| 194 | H.S.BOLT M4X10 | |
| 195 | H.S.BOLT M6X20 WITH GLUE | |
| 196 | SEALING RING | |
| 197 | SPRING WASHER 5 | |
| 198 | WING KNOB,M6X10 | |
| 199 | SPRING WASHER 6 | |
| 200 | BLADE BOLT | |
| 201 | SPECIAL WASHER 6 | |
| 202 | FLAT WASHER 4 | |
| 203 | FLAT WASHER 4 | |
| 204 | FLAT WASHER 4 | |
| 205 | FLAT WASHER 4 | |
| 206 | FLAT WASHER 4 | |
| 207 | FLAT WASHER 4 | |
| 208 | FLAT WASHER 4 | |
| 209 | FLAT WASHER 4 | |
| 210 | FLAT WASHER 4 | |
| 211 | FLAT WASHER 4 | |
| 212 | FLAT WASHER 4 | |
| 213 | FLAT WASHER 4 | |
| 214 | CROSS HEAD SCREW M4X12 | |
| 215 | CROSS HEAD SCREW M4X12 | |
| 216 | CROSS HEAD SCREW M4X12 | |
| 217 | CROSS HEAD SCREW M4X12 | |
| 218 | CROSS HEAD SCREW M4X12 | |
| 219 | CROSS HEAD SCREW M4X12 | |
| 220 | CROSS HEAD SCREW M4X12 | |
| 221 | CROSS HEAD SCREW M4X12 | |
| 222 | CROSS HEAD SCREW M4X12 | |
| 223 | CROSS HEAD SCREW M4X12 | |
| 224 | FLAT WASHER 5 | |
| 225 | FLAT WASHER 5 | |
| 226 | FLAT WASHER 5 | |
| 227 | FLAT WASHER 5 | |
| 228 | FLAT WASHER 5 | |
| 229 | FLAT WASHER 5 | |
| 230 | FLAT WASHER | |
| 231 | FLAT WASHER | |
| 232 | CROSS HEAD SCREW M5X12 | |
| 233 |  |
CROSS HEAD SCREW M5X12 |
| 234 |  |
CROSS HEAD SCREW M5X12 |
| 235 |  |
CROSS HEAD SCREW M5X12 |
| 236 |  |
SPRING WASHER 4 |
| 237 |  |
SPRING WASHER 4 |
| 238 |  |
SPRING WASHER 4 |
| 239 |  |
SPRING WASHER 4 |
| 240 |  |
ANTI-LOOSEN RING |
| 241 |  |
ANTI-LOOSEN RING |
| 242 |  |
CROSS HEAD SCREW M4X18 |
| 243 |  |
LIMITED BRACKET |
| 244 |  |
LIMITED BRACKET |
| 245 |  |
DUSTPROOF RING |
| 246 |  |
DUSTPROOF RING |
| 247 |  |
FLAT WASHER 5 |
| 248 |  |
LOCKNUT M10 |
| 249 |  |
LOCKNUT M10 |
| 250 |  |
HEX BOLT M6X28 |
| 251 |  |
LASER CORD CLAMP |
| 252 |  |
LASER CORD CLAMP |
| 253 |  |
THIN FLAT WASHER 6 |
| 254 |  |
CORD CLAMP |
| 255 |  |
CORD WRAP BRACKET |
| 256 |  |
BUFFER |
| 257 |  |
BEARING BAFFLE |
| 258 |  |
LINK SLEEVE |
| 259 |  |
BLADE FLANGE |
| 260 |  |
SPRING WASHER 6 |
| 261 |  |
SELF TAPPING SCREW M4X16 |
| 262 |  |
SELF TAPPING SCREW M4X16 |
| 263 |  |
SELF TAPPING SCREW M4X16 |
| 264 |  |
SELF TAPPING SCREW M4X16 |
| 265 |  |
CROSS HEAD SCREW M5X20 |
| 266 |  |
SPRING WASHER 5 |
| 267 |  |
SPRING WASHER 5 |
| 268 |  |
SPRING WASHER 5 |
| 269 |  |
WING KNOB M6X20 |
| 270 |  |
LASER ASSEMBLY INC. 64,66,71,72,120,123-131,194,202,206,214 |
| A01 |  |
EXTENSION WING |
| A02 |  |
BOX WRENCH 13-3 |
| A03 |  |
SAW BLADE |
| A04 |  |
TRIANGLE PLATE |
| A05 |  |
DUST BAG ASSEMBLY |
| A06 |  |
VISE ASSEMBLY |
