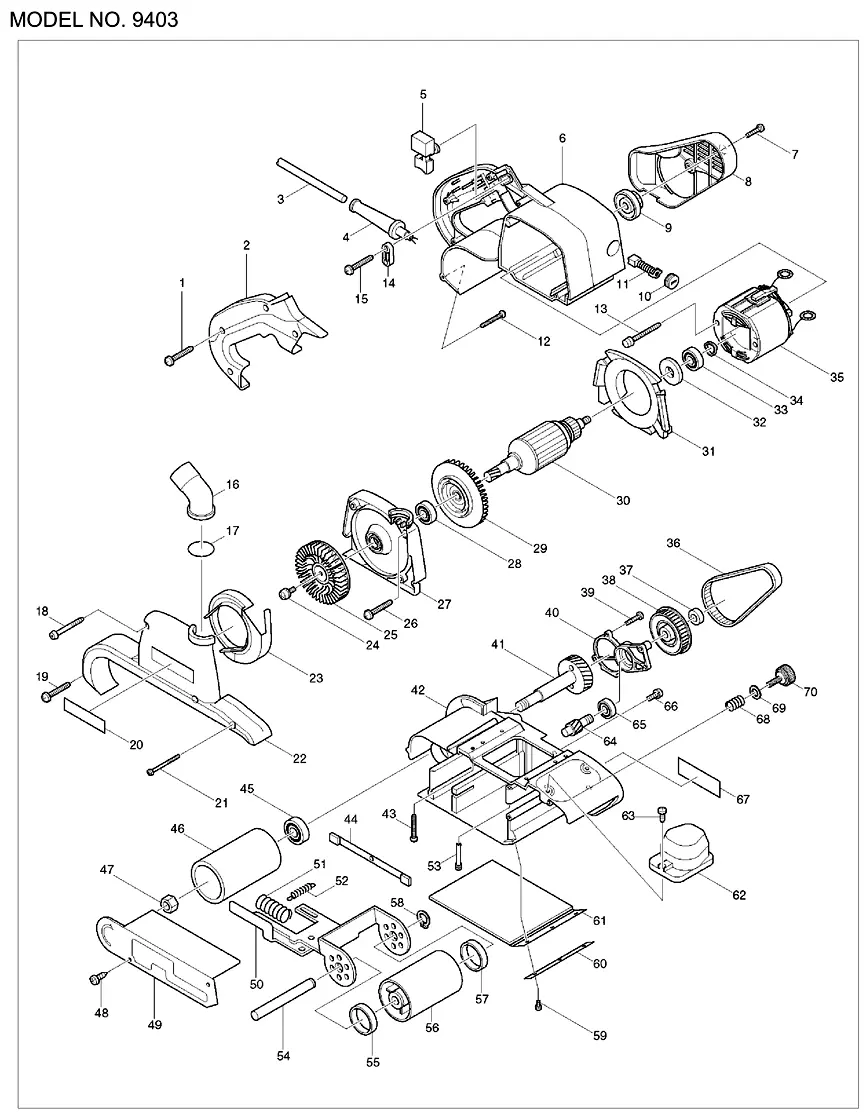

9403 Деталировка
9403 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X18 | |
| 2 | HANDLE COVER | |
| 3 | POWER SUPPLY CORD 1.0-2-5.0 (new) | |
| 3 | POWER SUPPLY CORD 1.5-2-5.0 (old) | |
| 4 | CORD GUARD 9.3-90 (new) | |
| 4 | CORD GUARD 8-90 (old) | |
| 5 | SWITCH TGL115CDT-2 (new) | |
| 5 | SWITCH SGEL115CDY-6 (old) | |
| 6 | MOTOR HOUSING COMPLETE | |
| 7 | TAPPING SCREW CT 4X16 | |
| 8 | BELT COVER | |
| 9 | PULLEY 10-24.1 | |
| 10 | BRUSH HOLDER CAP | |
| 11 | CARBON BRUSH CB-303 | |
| 12 | TAPPING SCREW 4X18 | |
| 13 | TAPPING SCREW 5X45 | |
| 14 | STRAIN RELIEF (new) | |
| 14 | CORD CLAMP (old) | |
| 15 | TAPPING SCREW 4X18 | |
| 16 | DUST NOZZLE | |
| 17 | O RING 28 | |
| 18 | TAPPING SCREW 4X45 | |
| 19 | TAPPING SCREW 4X18 | |
| 20 | MAKITA MARK | |
| 21 | TAPPING SCREW BIND CT 4X40 | |
| 22 | DUST COLLECTOR COVER | |
| 23 | SEPARATOR | |
| 24 | PAN HEAD SCREW M5X12 | |
| 25 | FAN 80 | |
| 26 | TAPPING SCREW 4X18 | |
| 27 | DUST COLLECTOR BRACKET | |
| 28 | BALL BEARING 6000DDW | |
| 29 | FAN 84 | |
| 30 | ARMATURE ASS\\\'Y 220-240V INC. 28,29,32,33 | |
| 31 | BAFFLE PLATE | |
| 32 | INSULATION WASHER | |
| 33 | BALL BEARING 6000DDW | |
| 34 | WAVE WASHER 20 | |
| 35 | FIELD ASS\\\'Y 220-240V | |
| 36 | SYNCHRO BELT | |
| 37 | HEX. NUT M10 | |
| 38 | PULLEY 11-55.6 | |
| 39 | TAPPING SCREW CT 4X16 | |
| 40 | GEAR COVER | |
| 41 | HELICAL GEAR 43 COMPLETE | |
| 42 | FRAME COMPLETE | |
| 43 | TAPPING SCREW 4X18 | |
| 44 | EDGE SLIDER COMPLETE | |
| 45 | BALL BEARING 6001DDW | |
| 46 | DRIVING ROLLER | |
| 47 | HEX. NUT M12-19 | |
| 48 | TAPPING SCREW BIND CT 4X12 | |
| 49 | SAFETY COVER | |
| 50 | TENSION ROLLER ARM | |
| 51 | COMPRESSION SPRING 12 | |
| 52 | TENSION SPRING 4 | |
| 53 | SUPPORT PIN | |
| 54 | TENSION ROLLER SHAFT | |
| 55 | CUP WASHER 12 | |
| 56 | TENSION ROLLER COMPLETE | |
| 57 | CUP WASHER 12 | |
| 58 | RETAINING RING S-12 | |
| 59 | PAN HEAD SCREW M4X12 | |
| 60 | STRAP WASHER | |
| 61 | CORK RUBBER PLATE | |
| 62 | FRONT GRIP | |
| 63 | TAPPING SCREW CT 4X16 | |
| 64 | HELICAL GEAR 12 | |
| 65 | BALL BEARING 6200LLB | |
| 66 | PAN HEAD SCREW M5X12 | |
| 67 | NAME PLATE 9403 | |
| 68 | COMPRESSION SPRING 16 | |
| 69 | FLAT WASHER 16 | |
| 70 | SCREW M6X25 | |
| A01 | ABRASIVE BELT 100X610 WA80 | |
| A02 | DUST BAG ASS\\\'Y | |
| E01 | TERMINAL BLOCK | |
| E02 | NOISE SUPPRESSOR | |
| E03 | CLAMP WASHER | |
| E09 | CARBON PLATE |
