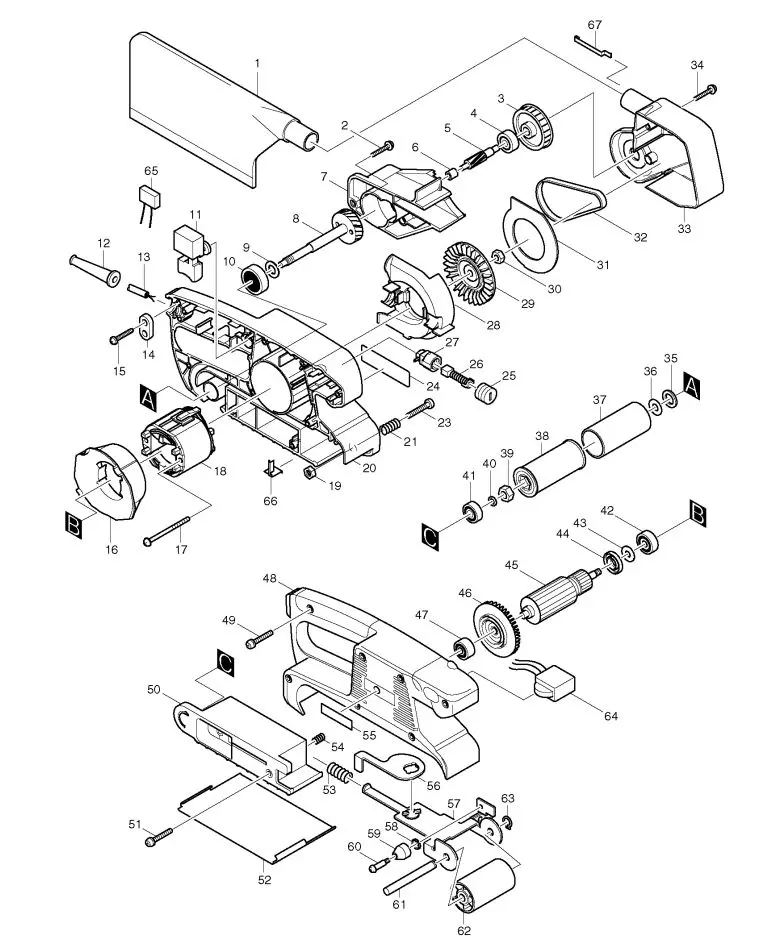

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | Dust Bags For Tools - Dust Bag Assembly | |
| 2 | *PT SCREW 4X25 10PK | |
| 2 | *PT SCREW 4X25 10PK | |
| 3 | PULLEY 8.5-45.1 9911 | |
| 4 | BALL BEARING 608DDW GA5020 | |
| 5 | \\\\\'HELICAL GEAR 6 9911 | |
| 6 | \\\\\'NEEDLE BEARING 509 (9911) | |
| 7 | \\\\\'BRACKET 9911 | |
| 8 | HELICAL GEAR 31 COMPLETE 9911 | |
| 9 | *THIN HARD WASHER 10 JN320 5PK | |
| 10 | BALL BEARING 6000LLB BTW200 | |
| 11 | SWITCH TGL215CDT-1 | |
| 11 | SWITCH TGL215CDT-1 | |
| 12 | CORD GUARD HP1641/BO5031/HP163 | |
| 12 | CORD GUARD HP1641/BO5031/HP163 | |
| 13 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 13 | LEAD WIRE HP1641/TD0101F/KP081 | |
| 14 | STRAIN RELIEF BO5041/KP0810 | |
| 14 | STRAIN RELIEF BO5041/KP0810 | |
| 15 | *PT SCREW 4X18 10PK KP0810C | |
| 15 | *PT SCREW 4X18 10PK KP0810C | |
| 16 | \\\\\'BAFFLE PLATE 9911 | |
| 17 | *PT SCREW 4X60 TRILBULAR 5PK | |
| 17 | *PT SCREW 4X60 TRILBULAR 5PK | |
| 18 |  |
FIELD 240V 9911 |
| 18 |  |
FIELD 110V 9911 |
| 18 |  |
FIELD 110V 9911 |
| 19 |  |
*HEX FULL NUT M5 10PK |
| 20 |  |
HOUSING L 9911 |
| 21 |  |
*COMPRESSION SPRING 6 10PK |
| 23 |  |
*PAN HD SCREW M5X30 10PK |
| 24 |  |
\\\\\'NAME PLATE 9911 |
| 25 |  |
BRUSH HOLDER CAP CB-9-14-17/N1 |
| 26 |  |
CARBON BRUSH CB-411 TD0101F/SM |
| 27 |  |
BRUSH HOLDER 9520NB/9522NB |
| 28 |  |
\\\\\'SCROLL PLATE 9911 |
| 29 |  |
FAN 68 9911 |
| 30 |  |
*HEX NNUT M6-10 L.THR 10PK |
| 31 |  |
PLATE 9911 |
| 32 |  |
SYNCHRO BELT 6-300 9911 |
| 33 |  |
\\\\\'BELT COVER SET 9911 |
| 33 |  |
\\\\\'BELT COVER SET 9911 |
| 34 |  |
*PT SCREW 4X25 10PK |
| 34 |  |
*PT SCREW 4X25 10PK |
| 35 |  |
*WASHER 12 9911 5PK |
| 36 |  |
*BLUE WASHER 8 HR5000K 5PK |
| 37 |  |
RUBBER SLEEVE 29 (9911) |
| 38 |  |
DRIVING ROLLER 9911 |
| 39 |  |
*HEX NUT M8-13 L.THR 10PK |
| 40 |  |
*NARROW WASHER 6 10PK |
| 41 |  |
BALL BEARING 626DDW 9911/BHR2 |
| 42 |  |
BALL BEARING 627DDW HP1641 |
| 43 |  |
*THIN BLUE WASHER JS1600 5PK |
| 44 |  |
INSULATION WASHER 9911 |
| 44 |  |
INSULATION WASHER 9911 |
| 45 |  |
ARMATURE ASSY 240V 9911 |
| 45 |  |
ARMATURE ASS\\\\\'Y 115V |
| 46 |  |
FAN 60 |
| 47 |  |
BALL BEARING HP1631/607LLB/430 |
| 48 |  |
HOUSING R 9911 |
| 49 |  |
*PT SCREW 4X25 10PK |
| 49 |  |
*PT SCREW 4X25 10PK |
| 50 |  |
SHOE 9911 |
| 51 |  |
*PT SCREW 4X25 10PK |
| 51 |  |
*PT SCREW 4X25 10PK |
| 52 |  |
STEEL PLATE |
| 52 |  |
STEEL PLATE |
| 53 |  |
COMPRESSION SPRING 12 9911 |
| 54 |  |
*COMPRESSION SPRING 6 10PK |
| 55 |  |
MAKITA LABEL 500 4305/HR160DW |
| 56 |  |
\\\\\'LEVER 9911 |
| 57 |  |
\\\\\'TENSION ROLLER ARM COMPLETE |
| 58 |  |
*CUP WASHER 4 9911 5PK |
| 59 |  |
ROLLER 9911/9920/9903/9404 |
| 60 |  |
*SHOULDER SCREW M4 9404 5PK |
| 61 |  |
TENSION ROLLER SHAFT 9911 |
| 62 |  |
TENSION ROLLER COMPLETE 9911 |
| 63 |  |
*EXT DIN CIRCLIP-8 10PK |
| 64 |  |
CONTROLLER 110V 4304/4305/4306 |
| 64 |  |
CONTROLLER 4304/4305 240V |
| 66 |  |
\\\\\'EARTH SUPPORTER 9911 |
| 67 |  |
\\\\\'EARTH PLATE 9911 |
