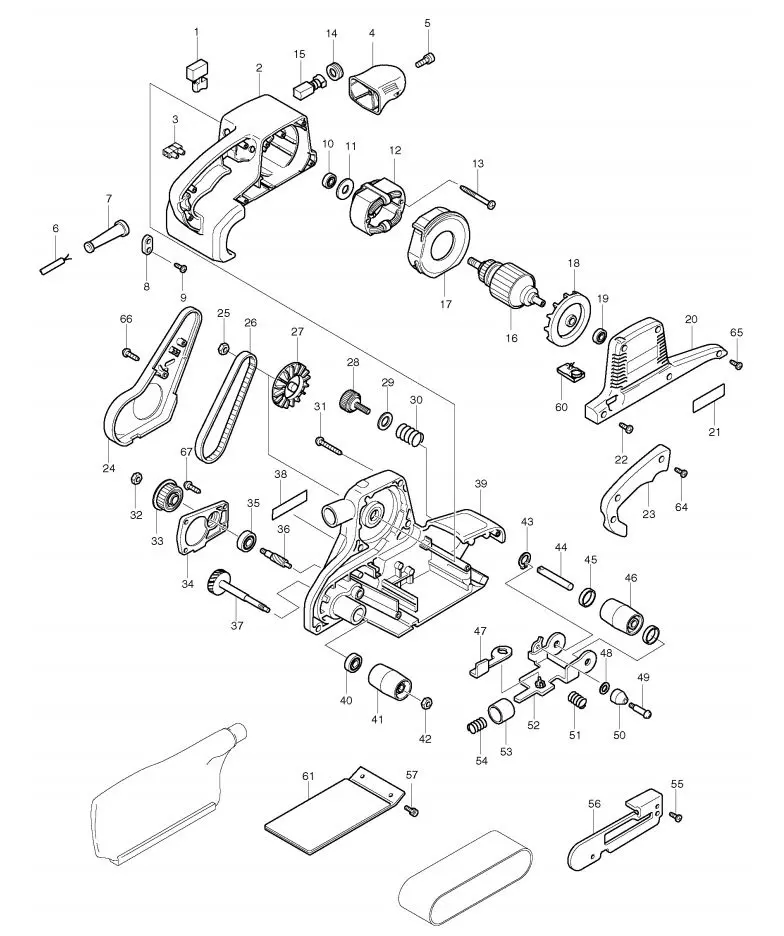

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
SWITCH SGEL115CDY-6 |
| 2 |  |
MOTOR HOUSING COMP 9920/9903 |
| 3 |  |
TERMINAL BLOCK UC3530A/KP0800 |
| 4 |  |
FRONT GRIP 9920/9903/9904 |
| 5 |  |
*PT SCREW 5X30 9015B 10PK |
| 6 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 6 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 7 |  |
CORD GUARD MT852/9049/2414 |
| 8 |  |
STRAIN RELIEF BO5041/KP0810 |
| 8 |  |
STRAIN RELIEF BO5041/KP0810 |
| 9 |  |
*PT SCREW 4X18 10PK KP0810C |
| 10 |  |
BALL BEARING 6000DDW PC5000/01 |
| 11 |  |
INSULATION WASHER 9403/9920 |
| 12 |  |
FIELD ASSY 110V 9920/9903/9404 |
| 12 |  |
FIELD ASSY 240V 9920/9903/9403 |
| 13 |  |
*PT SCREW 5X45 9046 5PK |
| 14 |  |
BRUSH HOLDER CAP PC5000/01C/GA |
| 15 |  |
CARBON BRUSH CB-303 MT582 |
| 16 |  |
ARMATURE ASSY 240V 9920/9903 |
| 16 |  |
ARMATURE ASSY 110V 9920/9903 |
| 17 |  |
BAFFLE PLATE 9920/9903/9404 |
| 18 |  |
FAN 75 9920/9903/9404 |
| 19 |  |
BALL BEARING 627DDW HP1641 |
| 20 |  |
MOTOR COVER 9920/9404 |
| 21 |  |
MAKITA LABEL |
| 22 |  |
*PT SCREW 4X18 10PK KP0810C |
| 23 |  |
\\\'HANDLE COVER 9920/9903/9404 |
| 24 |  |
BELT COVER 9920/9903/9404 |
| 25 |  |
*HEX NNUT M6-10 L.THR 10PK |
| 26 |  |
SYNCHRO BELT 9920/9903/9404 |
| 27 |  |
FAN 76 9920/9903/9404 |
| 28 |  |
KNUR THUMB SETSCREW M6X25 3700 |
| 29 |  |
*HARD NARROW WASHER 16 5PK |
| 30 |  |
*COMPRESSION SPRING 16 5PK |
| 31 |  |
*PT SCREW 4X30 10PK |
| 32 |  |
*HEX FULLNUT M8 10PK |
| 33 |  |
PULLEY 9.5-46.0 9920/9903/9404 |
| 34 |  |
\\\'GEAR COVER 9920/9903/9404 |
| 35 |  |
BALL BEARING 629DDW BO5031/361 |
| 36 |  |
HELICAL GEAR 10 9920/9903/9404 |
| 37 |  |
HELICAL GEAR COMP 39 9903/9920 |
| 38 |  |
\\\'NAME PLATE 9920 |
| 39 |  |
FRAME COMP 9920 |
| 40 | BALL BEARING 6000DDW PC5000/01 | |
| 41 |  |
DRIVING ROLLER 9920/9903/9404 |
| 42 |  |
*HEX NUT M8-13 L.THR 10PK |
| 43 |  |
*EXT DIN 471 CIRCLIP-12 10PK |
| 44 |  |
TENSION ROLLER SHAFT 9920/9903 |
| 45 |  |
*CUP WASHER 12 9401 5PK |
| 46 |  |
TENSION ROLLER COMP 9920/9903 |
| 47 |  |
LEVER 9920/9903/9404 |
| 48 |  |
*CUP WASHER 4 9911 5PK |
| 49 |  |
*SHOULDER SCREW M4 9404 5PK |
| 50 |  |
ROLLER 9911/9920/9903/9404 |
| 51 |  |
*COMPRESSION SPRING 7 10PK |
| 52 |  |
TENSION ROLLER ARM COMP 9920 |
| 53 |  |
CUP WASHER 17 9920/9903/9404 |
| 54 |  |
COMPRESSION SPRING 12 9920/94 |
| 55 |  |
*CT SCREW M4X16 10PK |
| 56 |  |
SAFETY COVER 9920/9404 |
| 57 |  |
*PAN HD SCREW M4X12 10PK |
| 60 |  |
CONTROLLER 110V 9920/9903 |
| 60 |  |
CONTROLLER 240V 9920/9903 |
| 61 |  |
CARBON PLATE |
| 64 |  |
*PT SCREW 4X18 10PK KP0810C |
| 65 |  |
*CT SCREW M4X16 10PK |
| 66 |  |
*CT SCREW M4X16 10PK |
| 67 |  |
*CT SCREW M4X16 10PK |
