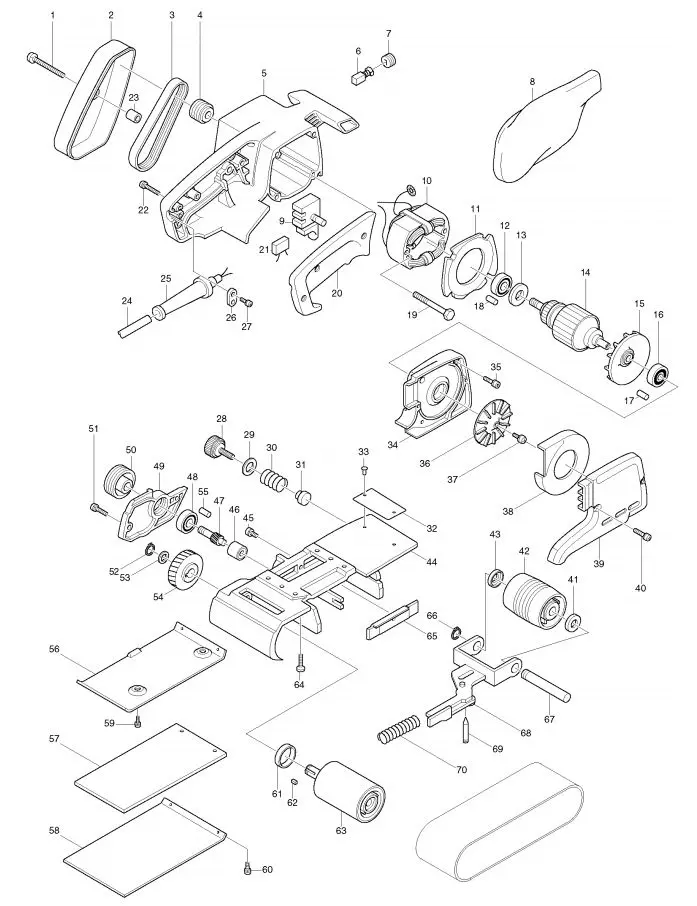

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
*PAN HDSCREW M5X40 W/SP 10PK |
| 2 |  |
\\\'BELT COVER 9900B/9924DB |
| 3 |  |
POLY V-BELT 5-304 9900B/9924DB |
| 4 |  |
\\\'V-PULLEY 5-25L 9900B/9924DB |
| 5 |  |
MOTOR HOUSING 9900B/9924DB |
| 6 |  |
CARBON BRUSH CB-100 9217SPC |
| 7 |  |
BRUSH HOLDER CAP CB-7E/9217SPC |
| 8 |  |
Dust Bags For Tools - Dust Bag complete with fastener |
| 9 |  |
SWITCH SGEL215C JN3200/JS3200 |
| 10 |  |
FIELD ASS\\\'Y 115V |
| 10 |  |
\\\'FIELD 240V 9900B/9924DB |
| 11 |  |
\\\'BAFFLE PLATE 9900B/9924DB |
| 12 |  |
BALL BEARING 6200LLB/9402 |
| 13 |  |
INSULATION WASHER 2012NB |
| 14 |  |
\\\'ARMATURE 110V 9900B/9924DB |
| 14 |  |
ARMATURE 240V 9900B/9924DB |
| 15 |  |
FAN 75 |
| 16 |  |
BALL BEARING BO3710/3711/KP081 |
| 17 |  |
RUBBER PIN 4 PC5000/UH5580/TD |
| 18 |  |
RUBBER PIN 4 PC5000/UH5580/TD |
| 19 |  |
PAN HEAD SCREW M5X45/9402 |
| 20 |  |
\\\'HANDLE COVER 9900B/9924DB |
| 21 |  |
NOISE SUPPRESSOR/CONDENSOR 645 |
| 22 |  |
*PAN HEAD SCREW 4X30 W/CP 10PK |
| 23 |  |
SLEEVE 6 9401/9900B/9924DB/94 |
| 24 |  |
POWER SUPPLY CORD 1.50-2-5.0 |
| 24 |  |
POWER SUPPLY CORD 1.00-2-5.0 |
| 25 | CORD GUARD 8-85 3707/N1923B | |
| 25 | CORD GUARD 9.3-85 BO5041/3711 | |
| 26 | STRAIN RELIEF 4157KB/6820V | |
| 26 | STRAIN RELIEF HK1820L/3601B | |
| 27 | *PAN HD SCREW M4X18 10PK | |
| 28 | KNUR THUMB SETSCREW M6X25 3700 | |
| 29 | *HARD NARROW WASHER 16 5PK | |
| 30 | *COMPRESSION SPRING 16 5PK | |
| 31 | SHOE 9900B/9924DB | |
| 32 | NAME PLATE 9924DB | |
| 33 | *RIVET 0-5 10PK | |
| 34 | DUST COLLECTOR BRACKET 9900B | |
| 35 | *PAN HD SCREW 5X25 W/SP 10PK | |
| 36 | FAN 74 9401/9900B/9924DB/940 | |
| 37 | *PAN HD SCREW 5X12 W/SP 10PK | |
| 38 | \\\'SEPARATOR 9900B/9924DB | |
| 39 | \\\'DUST COLLETOR COVER 9900B | |
| 40 | *PAN HD SCREW M4X18 10PK | |
| 41 | *CUP WASHER 12 9401 5PK | |
| 42 | \\\'TENSION ROLLER 9900B/9924DB | |
| 43 | *CUP WASHER 12 9401 5PK | |
| 44 | FRAME COMPLETE 9924DB | |
| 45 | *PAN HD SCREW 5X12 W/SP 10PK | |
| 46 | NEEDLE BEARING 810/9402 | |
| 47 | HELICAL GEAR 10 9401/9900B/940 | |
| 48 | BALL BEARING 6200LLB/9402 | |
| 49 | \\\'GEAR COVER 9900B/9924DB | |
| 50 | \\\'V PULLEY 5-45 9900B/9924DB | |
| 51 | *PAN HD SCREW M4X18 10PK | |
| 52 | *EXT DIN 471 CIRCLIP-12 10PK | |
| 53 | *SHIM WASHER 12 10PK | |
| 54 | \\\'HELICAL GEAR 48 9900B/24DB | |
| 55 | RUBBER PIN 4 PC5000/UH5580/TD | |
| 56 | BASE PLATE 9924DB | |
| 57 | CORK PAD | |
| 58 | CARBON PLATE | |
| 59 | *PAN HEAD SCREW M4X10 10PK | |
| 60 | *PAN HD SCREW M4X10 10PK | |
| 61 | *CUP WASHER 12 9401 5PK | |
| 62 | *KEY 4-10 10PK | |
| 63 | DRIVING ROLLER 9900B/24DB | |
| 64 | *COUNTERSUNK SCREW M5X18 10PK | |
| 65 | EDGE SLIDER 9900/9924DB | |
| 66 | *EXT DIN 471 CIRCLIP-12 10PK | |
| 67 | \\\'TENSION ROLLER SHAFT 9900B | |
| 68 | TENSION ROLLER ARM 9924DB | |
| 69 | SUPPORT PIN 9900B | |
| 70 | COMPRESSION SPRING 11 9900B |
