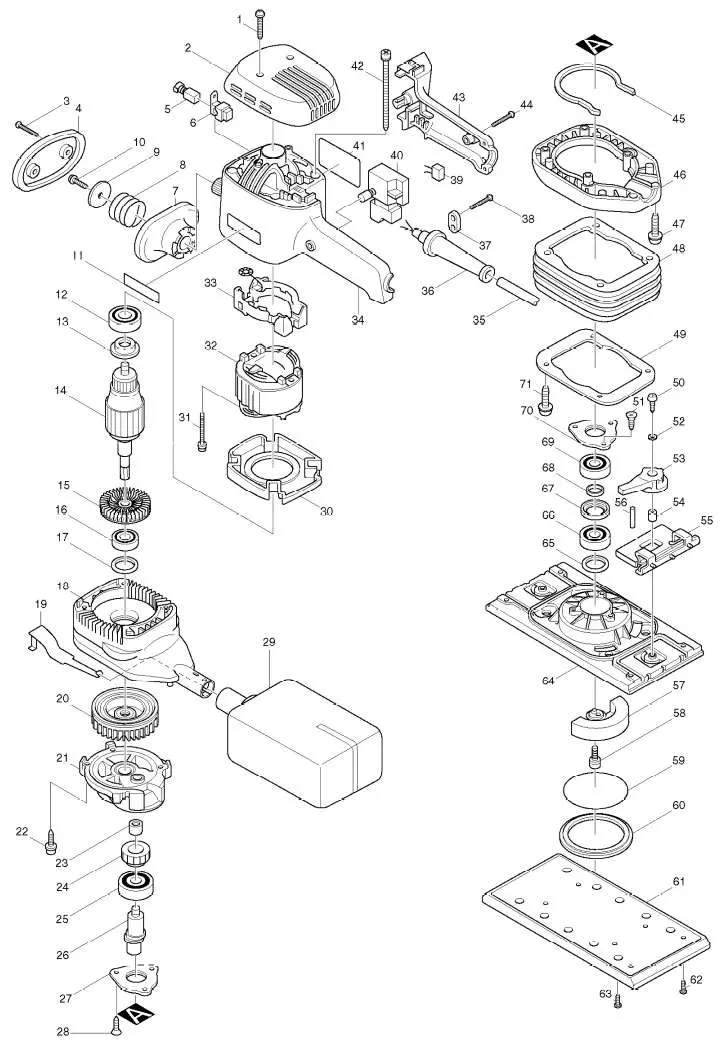

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X18 | |
| 2 | TOP COVER | |
| 3 | TAPPING SCREW 4X18 | |
| 4 | GRIP COVER | |
| 5 | CARBON BRUSH CB-419 | |
| 6 | BRUSH HOLDER | |
| 7 | GRIP BASE | |
| 8 | COMPRESSION SPRING 24 | |
| 9 | FLAT WASHER 5 | |
| 10 | TAPPING SCREW 5X20 | |
| 11 | MAKITA LABEL | |
| 12 | BALL BEARING 608LB | |
| 13 | INSULATION WASHER | |
| 14 | ARMATURE ASS\\\\\'Y 220V INC. 12,13,15,16 | |
| 15 | FAN 60 | |
| 16 | BALL BEARING 6201DDW | |
| 17 | FLAT WASHER 26 | |
| 18 | SCROLL HOUSING | |
| 19 | EARTH PLATE | |
| 20 | FAN 68 | |
| 21 | GEAR BOX | |
| 22 |  |
TAPPING SCREW 4X20 |
| 23 |  |
NEEDLE BEARING 810 |
| 24 |  |
HELICAL GEAR 39 |
| 25 |  |
BALL BEARING 6203DDW |
| 26 |  |
CRANK SHAFT |
| 27 |  |
BEARING RETAINER 24 |
| 28 |  |
TAPPING SCREW CT 4X12 |
| 29 |  |
DUST BAG COMPLETE |
| 30 |  |
BAFFLE PLATE |
| 31 |  |
TAPPING SCREW 5X45 |
| 32 |  |
FIELD 220V |
| 33 |  |
SUPPORT COMPLETE |
| 34 |  |
MOTOR HOUSING |
| 35 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 36 |  |
CORD GUARD 9.3-85 |
| 37 |  |
STRAIN RELIEF |
| 38 |  |
TAPPING SCREW 4X18 |
| 39 |  |
NOISE SUPPRESSOR |
| 40 |  |
SWITCH SGEL206C |
| 41 |  |
NAME PLATE 9046 |
| 42 |  |
TAPPING SCREWҐBINDҐBTҐ5X90 |
| 43 |  |
HANDLE COVER |
| 44 |  |
TAPPING SCREW 4X18 |
| 45 |  |
PACKING |
| 46 |  |
SCROLL COVER |
| 47 |  |
TAPPING SCREW 4X12 |
| 48 |  |
RUBBER SLEEVE |
| 49 |  |
PLATE |
| 50 |  |
TAPPING SCREW BIND CT 4X20 фото |
| 51 |  |
TAPPING SCREW CT 4X12 |
| 52 |  |
FLAT WASHER 4 |
| 53 |  |
CLAMP LEVER |
| 54 |  |
SLEEVE 4 фото |
| 55 |  |
PAPER CLAMP COMPLETE |
| 56 |  |
PIN 3 |
| 57 |  |
BALANCER |
| 58 |  |
HEX. SOCKET HEAD BOLT M5X16 |
| 59 |  |
O RING 75 |
| 60 |  |
UNDER COVER |
| 61 |  |
PAD |
| 62 |  |
TAPPING SCREW BIND CT 4X12 |
| 63 |  |
TAPPING SCREW BIND CT 4X12 |
| 64 |  |
BASE |
| 65 |  |
FLAT WASHER 26 |
| 66 |  |
BALL BEARING 6002DDW |
| 67 |  |
RING 19 |
| 68 |  |
RING 15 |
| 69 |  |
BALL BEARING 6002DDW |
| 70 |  |
BEARING RETAINER 24 |
| 71 |  |
TAPPING SCREW 4X14 |
| 72 |  |
FELT RING 20 |
| A01 | ABRASIVE PAPER 115-60 /STD | |
| A02 | ABRASIVE PAPER 115-100 /STD | |
| A03 | ABRASIVE PAPER 115-150 /STD | |
| A04 | PAPER DUST BAG HOLDER | |
| A05 | PAPER DUST BAG | |
| E01 | EARTH WIRE | |
| E03 | INSULATED TERMINAL FK2-M3D-5.5 | |
| E07 | CHOKE COIL |
