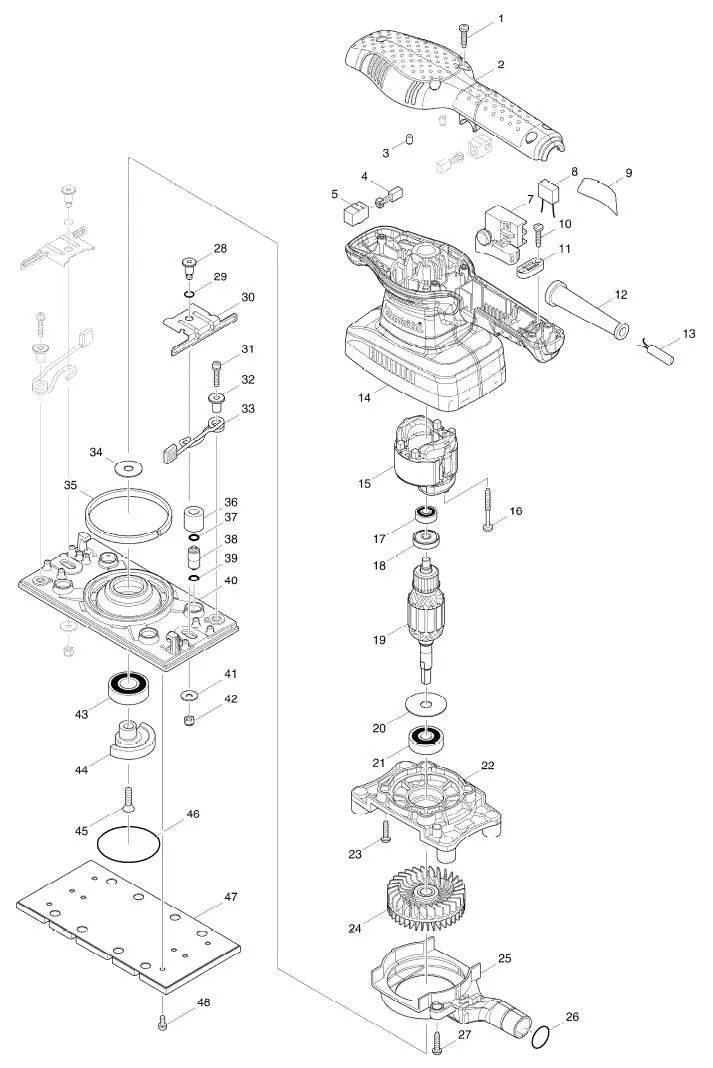

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 4X18 |
| 2 |  |
TOP COVER |
| 3 |  |
RUBBER PIN 4 |
| 4 |  |
CARBON BRUSH CB-64 |
| 5 |  |
BRUSH HOLDER 5-8 |
| 7 |  |
SWITCH SGEL206C-5 |
| 8 |  |
NOISE SUPRESSOR |
| 9 |  |
BO3710 NAME PLATE |
| 10 |  |
TAPPING SCREW 4X18 |
| 11 |  |
STRAIN RELIEF |
| 12 |  |
CORD GUARD 8-85 |
| 13 |  |
POWER SUPPLY CORD 1.0-2-2.0 |
| 14 |  |
MOTOR HOUSING |
| 15 |  |
FIELD ASSEMBLY 220-240V |
| 16 |  |
TAPPING SCREW 4X40 |
| 17 |  |
BALL BEARING 607ZZ |
| 18 |  |
INSULATION WASHER |
| 19 |  |
ARMATURE ASSEMBLY 240V INC. 17,18,20,21 |
| 20 |  |
FLAT WASHER 10 |
| 21 |  |
BALL BEARING 6200DDW |
| 22 |  |
BEARING BOX |
| 23 |  |
TAPPING SCREW 4X18 |
| 24 |  |
FAN 68 |
| 25 |  |
FAN GUIDE |
| 26 |  |
O RING 19 |
| 27 |  |
TAPPING SCREW 4X18 |
| 28 | + FLAT FILLISTER HEAD SCREW M5 | |
| 29 | O-RING 6 | |
| 30 | PAPER CLAMP | |
| 31 | PAN HEAD SCREW M4X20 | |
| 32 | SPRING GUIDE | |
| 33 | LEVER COMPLETE | |
| 34 | FLAT WASHER 8 | |
| 35 | SPONGE 6X230X3 | |
| 36 | SPONGE SLEEVE 9 | |
| 37 | O RING 4 | |
| 38 | FOOT | |
| 39 | O RING 4 | |
| 40 | BASE | |
| 41 | FLAT WASHER 5 | |
| 42 | HEX. LOCK NUT M5-8 | |
| 43 | BALL BEARING 6202DDW | |
| 44 | BALANCER | |
| 45 | COUNTERSUNK HEAD SCREW M5X16 | |
| 46 | O RING 53 | |
| 47 | PAD COMPLETE | |
| 48 | PAN HEAD SCREW M4X10 | |
| A01 | DUST BAG COMPLETE | |
| A02 | PUNCH PLATE | |
| A03 | ABRASIVE PAPER 93X228 #120 |
