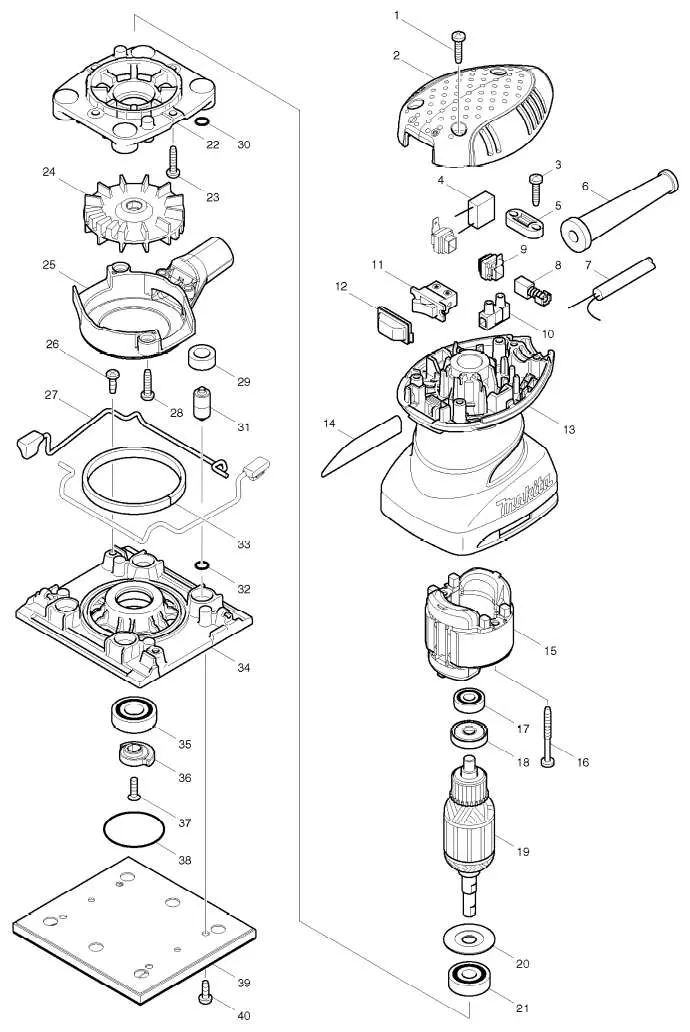

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 4X18 |
| 2 |  |
TOP COVER |
| 3 |  |
TAPPING SCREW 4X18 |
| 4 |  |
NOISE SUPPRESSOR |
| 5 |  |
STRAIN RELIEF |
| 6 |  |
CORD GUARD 8-85 |
| 7 |  |
POWER SUPPLY CORD 1.0-2-2.0 |
| 8 |  |
CARBON BRUSH CB-419 |
| 9 |  |
BRUSH HOLDER |
| 10 |  |
TERMINAL BLOCK 1P |
| 11 |  |
SWITCH |
| 12 |  |
SWITCH COVER |
| 13 |  |
MOTOR HOUSING |
| 14 |  |
BO4555 NAME PLATE |
| 15 |  |
FIELD ASS\\\\\'Y 240V |
| 16 |  |
TAPPING SCREW 4X40 |
| 17 |  |
BALL BEARING 607LLB |
| 18 |  |
INSULATION WASHER |
| 19 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 17,18,20,21 |
| 20 |  |
WASHER 9 |
| 21 |  |
BALL BEARING 629DDW |
| 22 |  |
BEARING BOX |
| 23 |  |
TAPPING SCREW 4X18 |
| 24 |  |
FAN 63 |
| 25 |  |
FAN GUIDE |
| 26 |  |
TAPPING SCREW 4X12 |
| 27 |  |
LEVER COMPLETE |
| 28 |  |
TAPPING SCREW 4X18 |
| 29 |  |
SPONGE SLEEVE 9 |
| 30 |  |
O RING 4 |
| 31 |  |
FOOT |
| 32 |  |
O RING 4 |
| 33 |  |
SPONGE 6X185X3 |
| 34 |  |
BASE |
| 35 |  |
BALL BEARING 6001DDW |
| 36 |  |
BALANCER |
| 37 |  |
COUNTERSUNK HEAD SCREW M4X12 |
| 38 |  |
O RING 36 |
| 39 |  |
PAD COMPLETE |
| 40 |  |
TAPPING SCREW 4X12 |
| A01 |  |
PAPER DUST BAG HOLDER SET |
| A02 | PAPER DUST BAG SET | |
| A03 | ABRASIVE PAPER SET | |
| A04 | PUNCH PLATE | |
| A05 | DUST BAG | |
| A06 | RING 25 | |
| A07 | DUST BAG NOZZLE | |
| A08 | DUST NOZZLE |
