BO 4556/

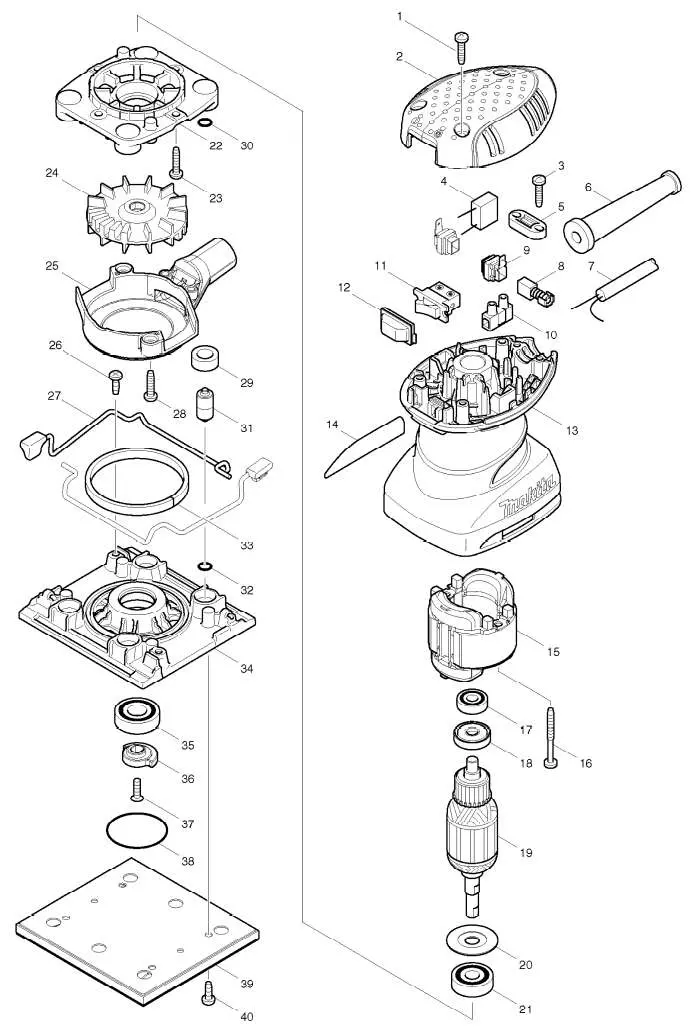

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X18 | |
| 2 | TOP COVER | |
| 3 | TAPPING SCREW 4X18 | |
| 4 | NOISE SUPPRESSOR | |
| 5 | STRAIN RELIEF | |
| 6 | CORD GUARD 8-85 | |
| 7 | POWER SUPPLY CORD 1.0-2-2.0 | |
| 8 | CARBON BRUSH CB-419 | |
| 9 | BRUSH HOLDER | |
| 10 | TERMINAL BLOCK 1P | |
| 11 | SWITCH | |
| 12 | SWITCH COVER | |
| 13 | MOTOR HOUSING | |
| 14 | BO4556 NAME PLATE | |
| 15 | FIELD ASS\\\\\'Y 240V | |
| 16 | TAPPING SCREW 4X40 | |
| 17 | BALL BEARING 607LLB | |
| 18 | INSULATION WASHER | |
| 19 | ARMATURE ASS\\\\\'Y 220-240V INC. 17,18,20,21 | |
| 20 | WASHER 9 | |
| 21 | BALL BEARING 629DDW | |
| 22 | BEARING BOX | |
| 23 | TAPPING SCREW 4X18 | |
| 24 | FAN 63 | |
| 25 | FAN GUIDE | |
| 26 | TAPPING SCREW 4X12 | |
| 27 | LEVER COMPLETE | |
| 28 | TAPPING SCREW 4X18 | |
| 29 | SPONGE SLEEVE 9 | |
| 30 | O RING 4 | |
| 31 | FOOT | |
| 32 | O RING 4 | |
| 33 | SPONGE 6X185X3 | |
| 34 | BASE | |
| 35 | BALL BEARING 6001DDW | |
| 36 | BALANCER | |
| 37 | COUNTERSUNK HEAD SCREW M4X12 | |
| 38 | O RING 36 | |
| 39 | PAD COMPLETE | |
| 40 | TAPPING SCREW 4X12 | |
| A01 | PAPER DUST BAG HOLDER SET | |
| A02 | PAPER DUST BAG SET | |
| A03 | ABRASIVE PAPER SET 114X100 | |
| A04 | PUNCH PLATE | |
| A05 | DUST BAG | |
| A06 | RING 25 | |
| A07 | DUST BAG NOZZLE | |
| A08 | DUST NOZZLE |
