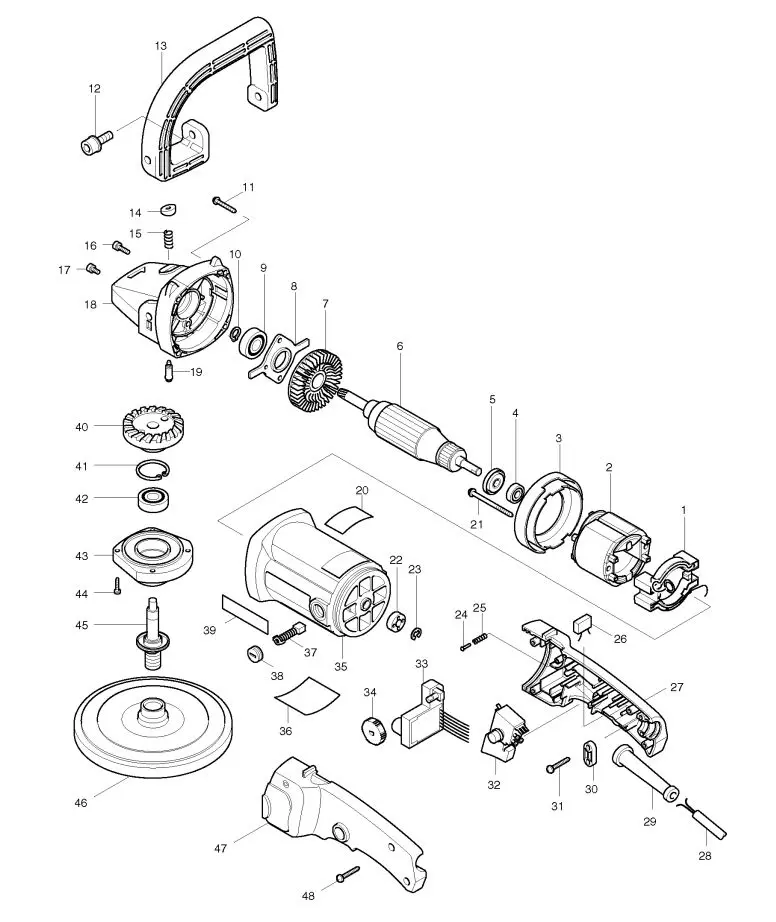

Деталировка

П-п	Арт	Название
1		SUPPORT COMPLETE 9227CB
2		FIELD 110V 9227CB
2		FIELD 240V 9207SPB
3		BAFFLE PLATE 9227CB
4		BALL BEARING 608LLB(/608VV) 67
5		INSULATED WASHER GA5020/GA5010
6		ARMATURE ASSY 110V 9227CB
6		ARMATURE ASSY 240V 9227CB
7		FAN 70
8		BEARING RETAINER 48 9227CB
9		BALL BEARING 6201LLB LS1030/92
10		*EXT DIN 471 CIRCLIP-12 10PK
11		*PT SCREW 5X35 HR160D 10PK
12		HEX SOCKET HD BOLT M8X25 9227C
13		LOOP HANDLE 9227CB
14		PIN CAP 9020NB/9522NB/9526NB
15		*COMPRESSION SPRING 8 10PK
16		*PAN HD SCREW 5X16 W/SP 10PK
17		*PAN HD SCREW 5X12 W/SP 10PK
18		GEAR HOUSING COMPLETE 9227CB
19		SHOULDER PIN 9
20		INDICATION LABEL 9227CB
21		*PT SCREW 5X70 HP2032 5PK
22		MAGNET SLEEVE 9227CB
23		*EXT E-RING JIS JE-6 10PK
24		*SOLID RIVET 2-9 9227GB 5PK
25		*COMPRESSION SPRING 3 5PK
26		NOISE SUPPRESSOR HP1641/LC1230
27		HANDLE SET 9227CB
28		POWER SUPPLY CORD 1.0-2-2.5
28		POWER SUPPLY CORD 1.5-2-2.5
29		CORD GUARD UH45570/5570/5580
30		STRAIN RELIEF UH4570/55/5580/6
30		STRAIN RELIEF UH4570/55/5580/6
31		*PT SCREW 4X18 10PK KP0810C
32		SWITCH 9227CB
33		CONTROLLER 110V 9227CB
33		CONTROLLER 240V 9227CB
34		DIAL 28 9227CB
35		MOTOR HOUSING 9227CB
36		NAME PLATE 9227CB
37		CARBON BRUSH CB-303 MT582
38		BRUSH HOLDER CAP PC5000/01C/GA
39		MAKITA LABEL
40		SPIRAL BEVEL GEAR 52 9227CB
41		RETAINING RING R-32 EM2651LH
42		BALL BEARING 6201LLB LS1030/92
43		BEARING BOX 9227CB
44		*CT SCREW M4X16 10PK
45		SPINDLE COMPLETE 9227CB
46		RUBBER BACKING PAD hook and loop
47		HANDLE SET 9227CB
48		*PT SCREW 4X18 10PK KP0810C
