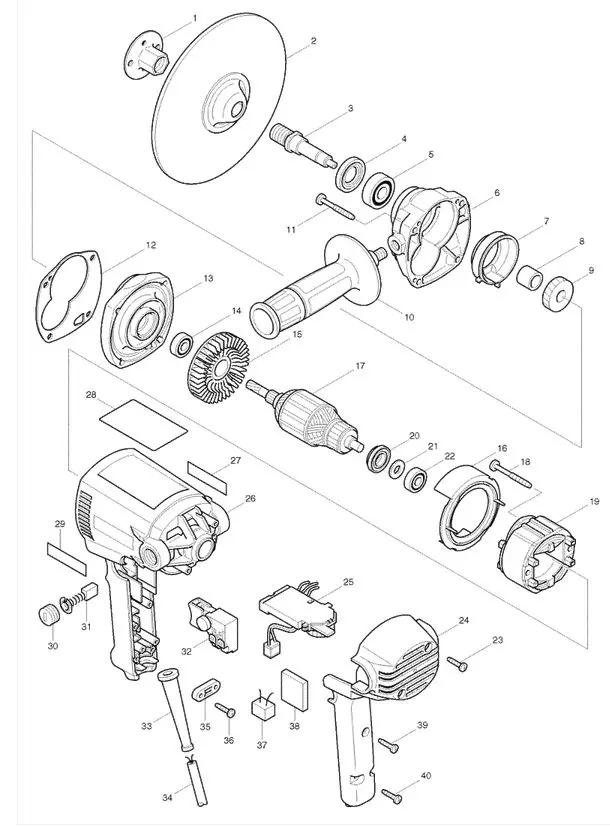

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SANDING LOCK NUT 14-48 | |
| 2 | RUBBER PAD 170 | |
| 3 | SPINDLE | |
| 4 | BEARING RETAINER COMPLETE | |
| 5 | BALL BEARING 6201DDW | |
| 6 | GEAR HOUSING | |
| 7 | GREASE FENCE | |
| 8 | SLEEVE 12 | |
| 9 | HELICAL GEAR 39 | |
| 10 | GRIP 36 COMPLETE | |
| 11 | TAPPING SCREW 5X40 | |
| 12 | GASKET | |
| 13 | GEAR HOUSING COVER COMPLETE | |
| 14 | BALL BEARING 608DDW | |
| 15 | FAN 65 | |
| 16 | BAFFLE PLATE | |
| 17 | ARMATURE ASS\\\'Y 220-240V | |
| 18 | TAPPING SCREW 5X45 | |
| 19 | FIELD ASS\\\'Y 220-240V | |
| 20 | INSULATION WASHER | |
| 21 | FLAT WASHER 8 | |
| 22 | BALL BEARING 608DDW | |
| 23 | TAPPING SCREW 4X18 | |
| 24 | HANDLE COVER | |
| 25 | CONTROLLER | |
| 26 | MOTOR HOUSING SET | |
| 27 | MAKITA LABEL | |
| 28 | NAME PLATE GV7000C | |
| 29 | MAKITA LABEL | |
| 30 | BRUSH HOLDER CAP | |
| 31 | CARBON BRUSH CB-303 | |
| 32 | SWITCH | |
| 33 | CORD GUARD 8 | |
| 34 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 35 | CORD CLAMP | |
| 36 | TAPPING SCREW 4X18 | |
| 37 | NOISE SUPPRESSOR | |
| 38 | SPONGE | |
| 39 | TAPPING SCREW 4X18 | |
| 40 | TAPPING SCREW 4X18 |
