PW 5000 CH (PW 5001 C)/

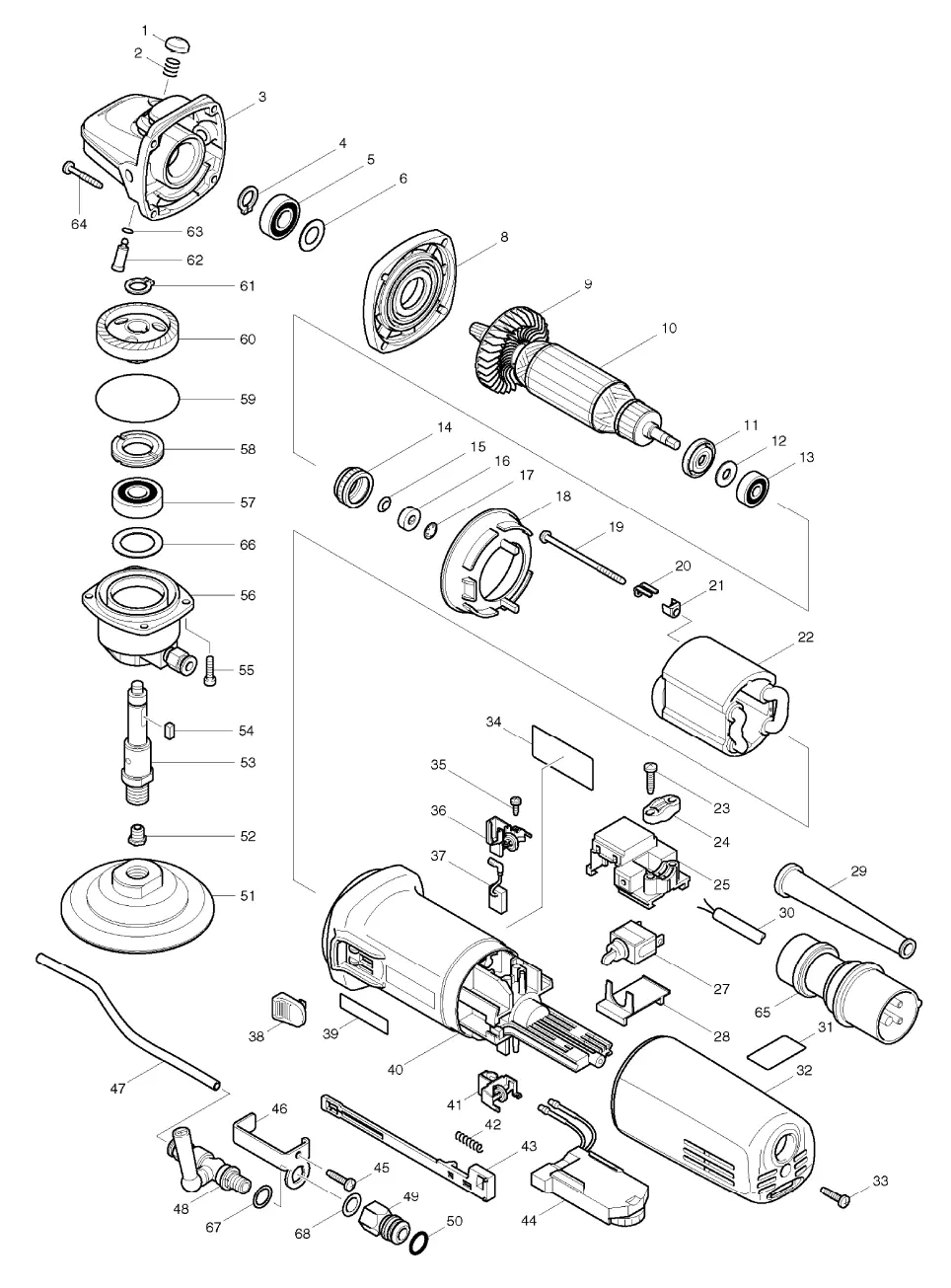

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | PIN CAP | |
| 2 | COMPRESSION SPRING 8 | |
| 3 | GEAR HOUSING COMPLETE | |
| 4 | RETAINING RING S-12 | |
| 5 | BALL BEARING 6001LLU | |
| 6 | FLAT WASHER 12 | |
| 8 | GEAR HOUSING COVER | |
| 9 | FAN 57 | |
| 10 | ARMATURE ASS\\\'Y 220V INC. 9,11,12,13 | |
| 11 | INSULATION WASHER | |
| 12 | FLAT WASHER 7 | |
| 13 | BALL BEARING 627DDW | |
| 14 | LABYRINTH RUBBER RING 22 | |
| 15 | WAVE WASHER 6 | |
| 16 | MAGNET SLEEVE | |
| 17 | SELF LOCK 6 | |
| 18 | BAFFLE PLATE | |
| 19 | TAPPING SCREW 4X70 | |
| 20 | RETAINER | |
| 21 | INSULATION COVER | |
| 22 | FIELD 220V | |
| 23 | TAPPING SCREW 4X18 | |
| 24 | STRAIN RELIEF | |
| 25 | SWITCH BLOCK | |
| 27 | SWITCH ST115A-40 | |
| 28 | COVER | |
| 29 | CORD GUARD 10 | |
| 30 | POWER SUPPLY CORD 1.0-2-5.0 | |
| 31 | INDICATION LABEL (NEW) | |
| 32 | REAR COVER | |
| 33 | TAPPING SCREW 4X18 | |
| 35 | TAPPING SCREW PT3X10 | |
| 36 | BRUSH HOLDER | |
| 37 | A.C. CARBON BRUSH CB-318 | |
| 38 | SWITCH KNOB | |
| 40 | MOTOR HOUSING | |
| 41 | BRUSH HOLDER | |
| 42 | COMPRESSION SPRING 4 | |
| 43 | SWITCH LEVER | |
| 44 | CONTROLLER (только для PW5000CH) | |
| 45 | TAPPING SCREW 4X18 | |
| 46 | PLATE | |
| 47 | HOSE | |
| 48 | COCK COMPLETE | |
| 49 | HOSE JOINT | |
| 50 | O RING 12 | |
| 51 | PAD 100 | |
| 52 | NOZZLE (NEW) | |
| 53 | SPINDLE | |
| 54 | KEY 4 | |
| 55 | HEX. SOCKET HEAD BOLT M4X16 | |
| 56 | BEARING BOX COMPLETE | |
| 57 | BALL BEARING 6201DDW | |
| 58 | BEARING RETAINER | |
| 59 | O RING 52 | |
| 60 | SPIRAL BEVEL GEAR 38 | |
| 61 | RETAINING RING S-12 | |
| 62 | PIN | |
| 63 | O RING 6 | |
| 64 | TAPPING SCREW 4X28 | |
| 65 | PLUG 1 | |
| 66 | FLAT WASHER 22 1 | |
| 67 | RUBBER WASHER 12 1 | |
| 68 | TEFLON WASHER 10 | |
| A01 | GRIP 36 COMPLETE 1 | |
| A02 | FLAT HEAD SCREW M8X11 | |
| A03 | HEAD COVER 1 | |
| A04 | WRENCH 17 |
