GB 602 W/

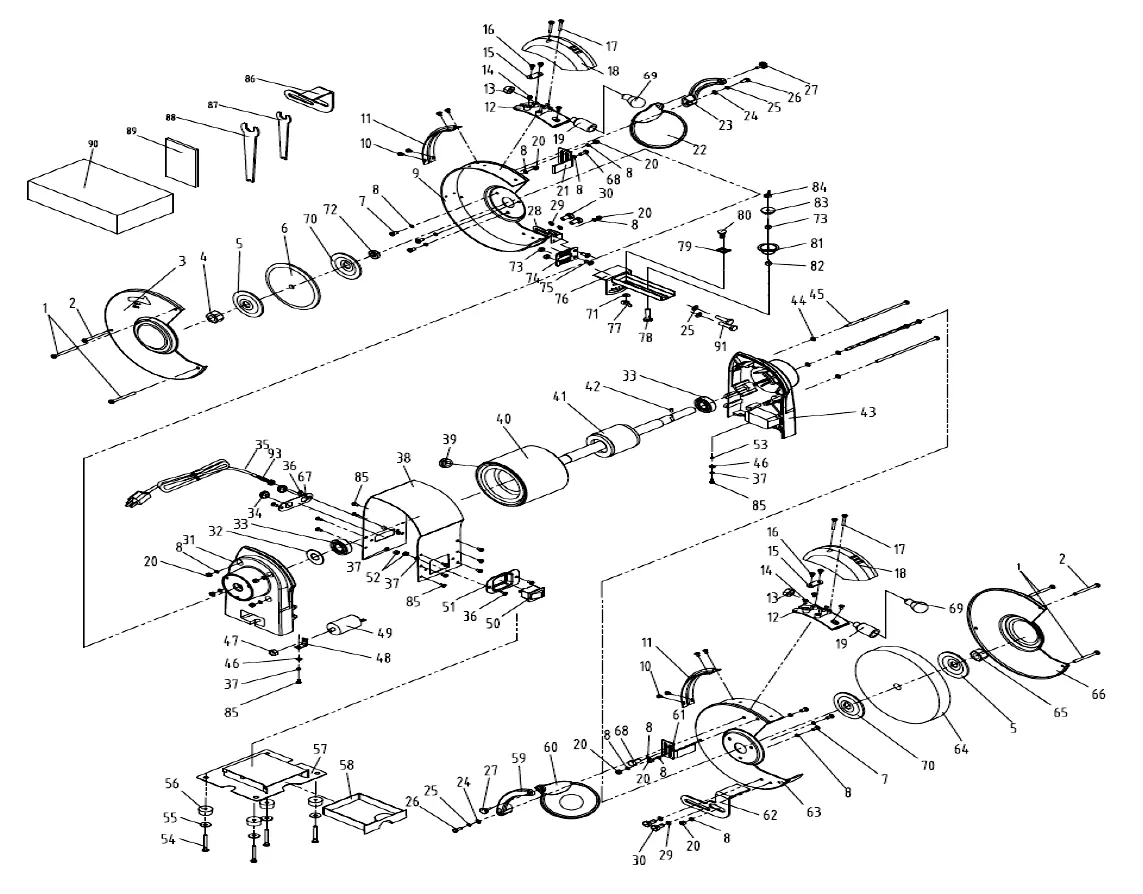

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Philip screw |
| 2 |  |
Philip screw |
| 3 |  |
Left wheel cover |
| 4 |  |
I type hex nut |
| 5 |  |
Grinder outer clamp |
| 7 |  |
Philip screw |
| 6 |  |
Grinding wheel (WA 60#) |
| 8 |  |
Standard spring washer |
| 9 |  |
Left wheel guard (inner) |
| 10 |  |
Little philip screw |
| 11 |  |
Cord press plate |
| 12 | Lamp base cover | |
| 13 | Lamp holder retaining nut | |
| 14 | Philip screw | |
| 15 | Strain relief | |
| 16 | Philip screw | |
| 17 | Philip screw | |
| 18 | Lamp cover assy | |
| 19 | Lamp assy | |
| 20 | I type hex nui | |
| 21 | Left spark shield | |
| 22 | Eyeshield ass^ | |
| 23 | Left eyeshield mount rod | |
| 24 | Plain washer | |
| 25 | Standard spring washer | |
| 26 | Hex boll | |
| 27 | Eyeshield lock knot | |
| 28 | Left work rest | |
| 29 | Flat washer | |
| 30 | Hex boll | |
| 31 | Left end cap | |
| 32 | wave spring washer | |
| 33 | Ball bearing | |
| 34 | Cord clip | |
| 35 | Wire with plug | |
| 36 | Philip screw | |
| 37 | Standard spring washer | |
| 38 | Motor housing | |
| 39 | Wire bushing | |
| 40 | Stator | |
| 41 | Rotor | |
| 42 | Roll pin | |
| 43 | Right end cap | |
| 44 | Plain washer | |
| 45 | Philip screw | |
| 46 | Plain washer | |
| 47 | 1 type hex nui | |
| 48 | Capacitor support | |
| 49 | Capacitor | |
| 50 | Switch |
