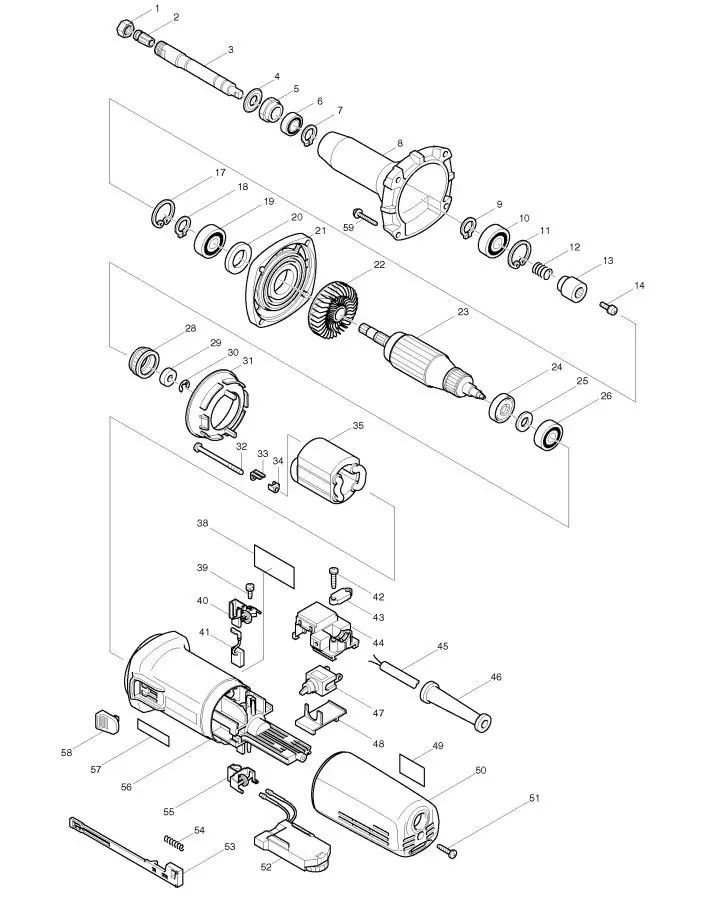

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | Collet Sleeves and Nuts for Die - Nut | |
| 2 | Collet Cones For Grinders | |
| 3 | SPINDLE GD0800C/810C | |
| 4 | OIL SEAL 16 GD0800C/6510SB/PV7 | |
| 5 | \\\\\'BEARING RETAINER GD0800C/810C | |
| 6 | BALL BEARING 6901LLB GD0810C | |
| 7 | *EXT DIN 471 CIRCLIP-12 10PK | |
| 8 | BARREL GD0800C | |
| 9 | *EXT DIN 471 CIRCLIP-12 10PK | |
| 10 | BALL BEARING 6001ZZ GD0810C | |
| 11 | *INTERNAL RETAINING RING-2 5PK | |
| 12 | LOCK SPRING 12 GD0800/810C/956 | |
| 13 | COUPLING GD0800C | |
| 14 | *PAN HD SCREW M4X8 GD0800C 5PK | |
| 17 | *INTERNAL RETAINING RING-2 5PK | |
| 18 | *EXT DIN 471 CIRCLIP-12 10PK | |
| 19 | BALL BEARING 6001ZZ GD0810C | |
| 20 | *THIN WASHER 12 10PK | |
| 21 | BEARING BOX GD0800C/810C | |
| 22 | FAN GD0800C | |
| 23 | ARMATURE ASSY 110V GD0800C | |
| 23 | ARMATURE ASSY 240V GD0800C | |
| 24 | INSULATION WASHER GD0810C/9564 | |
| 25 | *THIN BLUE WASHER JS1600 5PK | |
| 26 | BALL BEARING 627DDW HP1641 | |
| 28 | LABYRINTH RUBBER RING 22 GB081 | |
| 29 | MAGNET SLEEVE GD0800C/810C/BO6 | |
| 30 | SELF LOCK 6 4340CT/3707FC | |
| 31 | BAFFLE PLATE GD0800C/810C/BO60 | |
| 32 | *PT SCREW 4x60 5PK | |
| 33 | RETAINER HP1631/GD0800C/810C/9 | |
| 34 | INSULATION COVER HP1631/GD0800 | |
| 35 | FIELD 110V GD0800C | |
| 35 | FIELD 240V GD0800C | |
| 38 | NAME PLATE GD0800C | |
| 39 | *PT SCREW 3X10 W. CAPTIVE 5PK | |
| 40 | BRUSH HOLDER BO6040/9564&65CV& | |
| 41 | CARBON BRUSH CB-318 AC BO6040 | |
| 42 | *PT SCREW 4X18 10PK KP0810C | |
| 43 | STRAIN RELIEF BO5041/KP0810 | |
| 43 | STRAIN RELIEF BO5041/KP0810 | |
| 44 | SWITCH BLOCK GD0800C/810C/BO60 | |
| 45 | LEAD WIRE HP1641/TD0101F/KP081 | |
| 45 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 46 | CORD GUARD 10 TD0101F/2450 | |
| 47 | SWITCH ST115A-40 | |
| 48 | COVER GD0800C/810C/BO6040/9564 | |
| 49 | \\\\\'INDICATION LABEL GD0810C | |
| 50 | REAR COVER GD0800C/810C/BO6040 | |
| 51 | *PT SCREW 4X18 10PK KP0810C | |
| 52 | CONTROLLER 110V GD0810C/800C | |
| 52 | CONTROLLER 240V GD0800C/BO6040 | |
| 53 | SWTICH LEVER GD0810C | |
| 54 | *COMPRESSION SPRING 4 10PK | |
| 55 | BRUSH HOLDER BO6040/9564&65CV& | |
| 55 | \\\\\'BRUSH HOLDER BO6040/GD0800C | |
| 56 | *MOTOR HOUSING GD0800/810C/BO6 | |
| 57 | MAKITA LABEL 6071DW/GD0800C | |
| 58 | SWITCH KNOB 9564/65Z&H/SG1250 | |
| 59 | *PT SCREW 4X25 10PK |
