BO 5020/

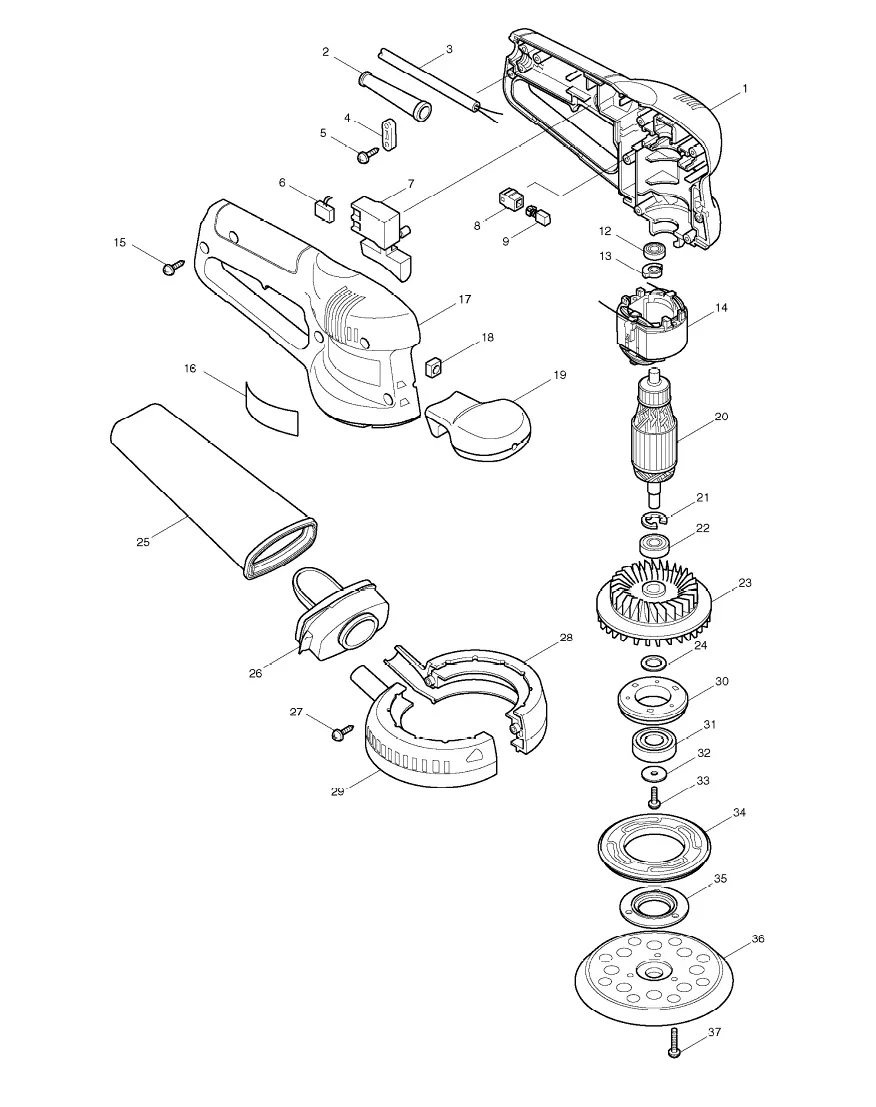

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 17 | |
| 2 | CORD GUARD 8-85 | |
| 3 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 4 | CORD CLAMP | |
| 5 | TAPPING SCREW 4X18 | |
| 6 | NOISE SUPPRESSOR | |
| 7 | SWITCH SGEL206C-5 | |
| 8 | BRUSH HOLDER 5-8 | |
| 9 | CARBON BRUSH CB-64 | |
| 12 | BALL BEARING 607DDW | |
| 13 | COUNTER WEIGHT | |
| 14 | FIELD 220-240V | |
| 15 | TAPPING SCREW 4X18 | |
| 16 | NAME PLATE BO5020 | |
| 17 | HOUSING SET INC. 1 | |
| 18 | SQUARE NUT M5 | |
| 19 | FRONT GRIP | |
| 20 | ARMATURE ASS\\\'Y 220-240V INC. 12,13,21,22 | |
| 21 | STOP RING E-9 | |
| 22 | BALL BEARING 6000LLU | |
| 23 | FAN 88 | |
| 24 | THIN WASHER 15 | |
| 25 | DUST BAG COMPLETE | |
| 26 | DUST NOZZLE COMPLETE | |
| 27 | TAPPING SCREW 4X18 | |
| 28 | SKIRT SET INC. 29 | |
| 29 | SKIRT SET INC. 28 | |
| 30 | BEARING BOX | |
| 31 | BALL BEARING 6002DDW | |
| 32 | FLAT WASHER 4 | |
| 33 | PAN HEAD SCREW M4X12 | |
| 34 | BRAKE RING | |
| 35 | BEARING BOX COVER | |
| 36 | PAD 123 | |
| 37 | PAN HEAD SCREW M4X16 | |
| A01 | ABRASIVE DISC 125 #120 | |
| A03 | PAPER DUST BAG | |
| A04 | PAPER DUST BAG HOLDER |
