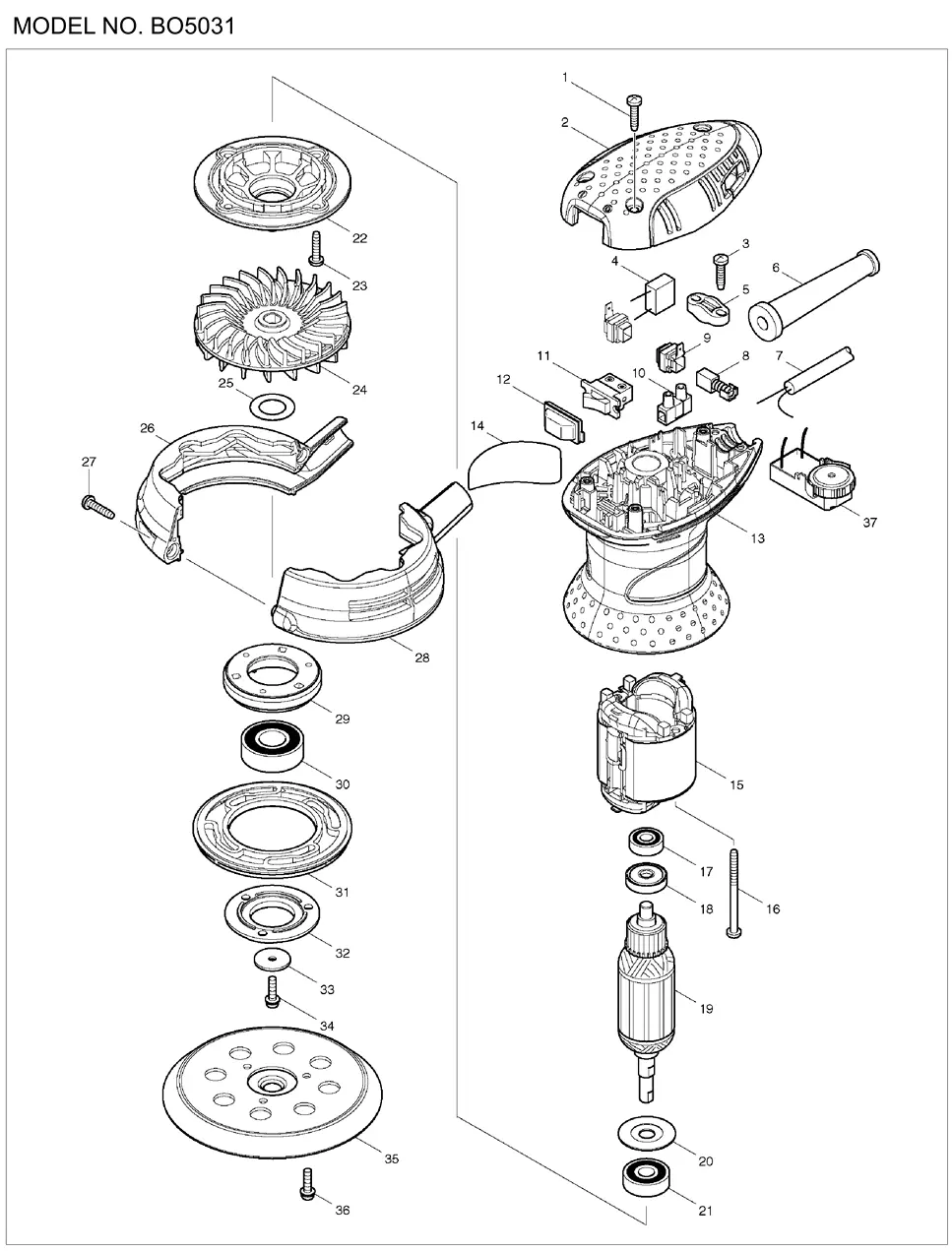

BO 5031 Деталировка
BO 5031 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X18 | |
| 2 | TOP COVER | |
| 3 | TAPPING SCREW 4X18 | |
| 4 | NOISE SUPPRESSOR | |
| 5 |  |
STRAIN RELIEF |
| 6 |  |
CORD GUARD 8-85 |
| 7 |  |
POWER SUPPLY CORD 1.0-2-2.0 |
| 8 |  |
CARBON BRUSH CB-419 |
| 9 |  |
BRUSH HOLDER |
| 10 |  |
TERMINAL BLOCK 1P |
| 11 |  |
SWITCH |
| 12 |  |
SWITCH COVER |
| 13 |  |
MOTOR HOUSING |
| 14 |  |
BO5031 NAME PLATE |
| 15 |  |
FIELD 240V |
| 16 |  |
TAPPING SCREW 4X55 |
| 17 |  |
BALL BEARING 607DDW |
| 18 |  |
INSULATION WASHER |
| 19 |  |
ARMATURE ASS\\\'Y 240V INC. 17,18,20,21 |
| 20 |  |
WASHER 9 |
| 21 |  |
BALL BEARING 629DDW |
| 22 |  |
BRACKET |
| 23 |  |
TAPPING SCREW 4X18 |
| 24 |  |
FAN 88 |
| 25 |  |
FLAT WASHER 15 |
| 26 |  |
SKIRT L/R SET INC. 28 |
| 27 |  |
TAPPING SCREW 4X18 |
| 28 |  |
SKIRT L/R SET INC. 26 |
| 29 |  |
BEARING BOX |
| 30 |  |
BALL BEARING 6202DDW |
| 31 |  |
BRAKE RING |
| 32 |  |
BEARING BOX COVER |
| 33 |  |
FLAT WASHER 4 |
| 34 |  |
PAN HEAD SCREW M4X16 |
| 35 |  |
PAD 123 |
| 36 |  |
PAN HEAD SCREW M4X16 |
| 37 |  |
CONTROLLER |
| A01 |  |
DUST BAG |
| A02 |  |
RING 25 |
| A03 |  |
DUST BAG NOZZLE |
| A04 |  |
DUST NOZZLE |
| A05 |  |
ABRASIVE DISC 125 #120 |
| A06 |  |
PLASTIC CARRYING CASE |
