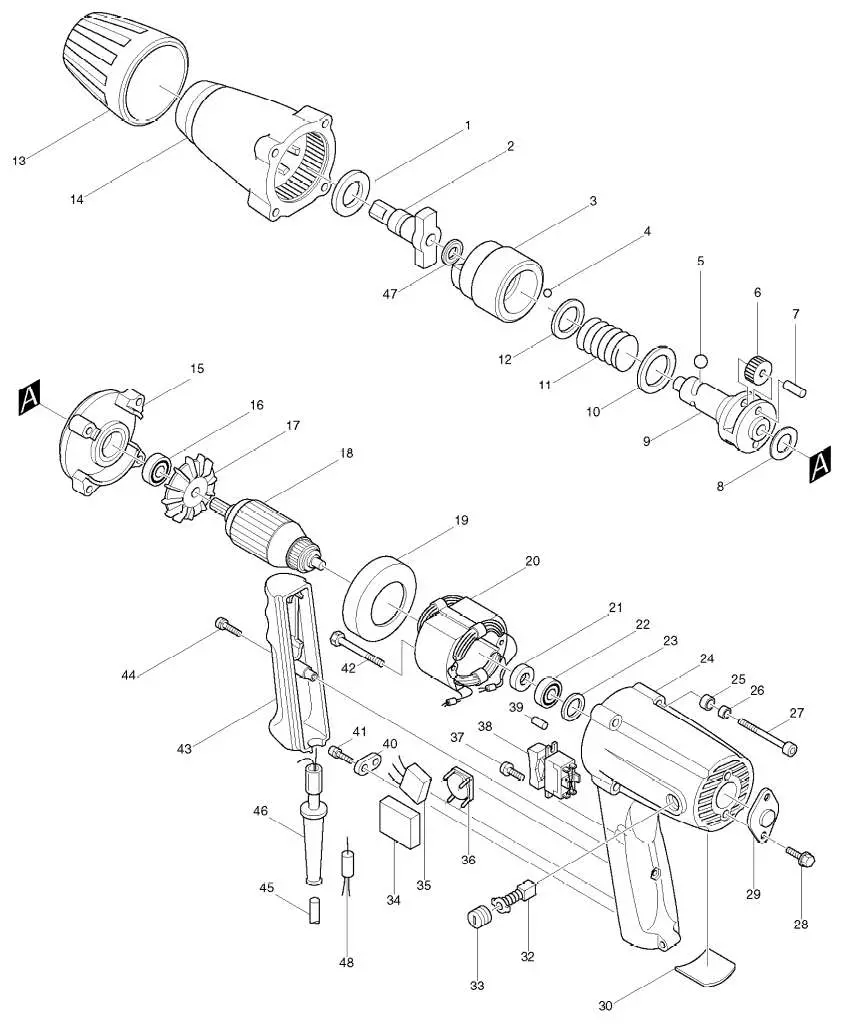

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | FLAT WASHER 18 | |
| 2 | ANVIL ASS\\\\\'Y INC. 47 | |
| 3 | HAMMER | |
| 4 | STEEL BALL 4 | |
| 5 | STEEL BALL 6.4 | |
| 6 | SPUR GEAR 33 | |
| 7 | PIN 6 | |
| 8 | FLAT WASHER 18 | |
| 9 | SPINDLE | |
| 10 | FLAT WASHER 24 | |
| 11 | COMPRESSION SPRING 24 | |
| 12 | FLAT WASHER 22 | |
| 13 | BUMPER | |
| 14 | HAMMER CASE | |
| 15 | BEARING HOUSING COMPLETE | |
| 16 | BALL BEARING 608LLB | |
| 17 | FAN 62 | |
| 18 | ARMATURE ASS\\\\\'Y 220V INC. 16,17,21,22 | |
| 19 | BAFFLE PLATE | |
| 20 | FIELD ASS\\\\\'Y 220V | |
| 21 | INSULATION WASHER | |
| 22 | BALL BEARING 627LLB | |
| 23 | URETHANE RING 18 | |
| 24 | MOTOR HOUSING INC. 39 | |
| 25 | CUP WASHER 5 | |
| 26 | URETHANE RING 5 | |
| 27 | HEX. SOCKET HEAD BOLT M5X50 | |
| 28 | HEX. BOLT M5X18 | |
| 29 | BEARING COVER 34 | |
| 30 | NAME PLATE 6905B | |
| 32 | CARBON BRUSH CB-65 | |
| 33 | BRUSH HOLDER CAP 5-8 | |
| 34 | SPONGE SHEET | |
| 35 | NOISE SUPPRESSOR | |
| 36 | LINE COIL | |
| 37 | PAN HEAD SCREW M4X8 | |
| 38 | SWITCH SL220SD-4 | |
| 39 | RUBBER PIN 4 | |
| 40 | STRAIN RELIEF | |
| 41 | PAN HEAD SCREW M4X18 | |
| 42 | + HEX. BOLT M4X50 | |
| 43 | HANDLE COVER | |
| 44 | PAN HEAD SCREW M4X40 | |
| 45 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 46 | CORD GUARD 9.3-85 | |
| 47 | RING SPRING 10 | |
| 48 | NYLON WASHER 22 | |
| 400 | SOCKET 19-38 ASS\\\\\'Y | |
| 402 | PLASTIC CARRYING CASE | |
| 900 | TERMINAL BLOCK 2P | |
| 906 | NOISE SUPPRESSOR | |
| 907 | MAKITA LABEL |
