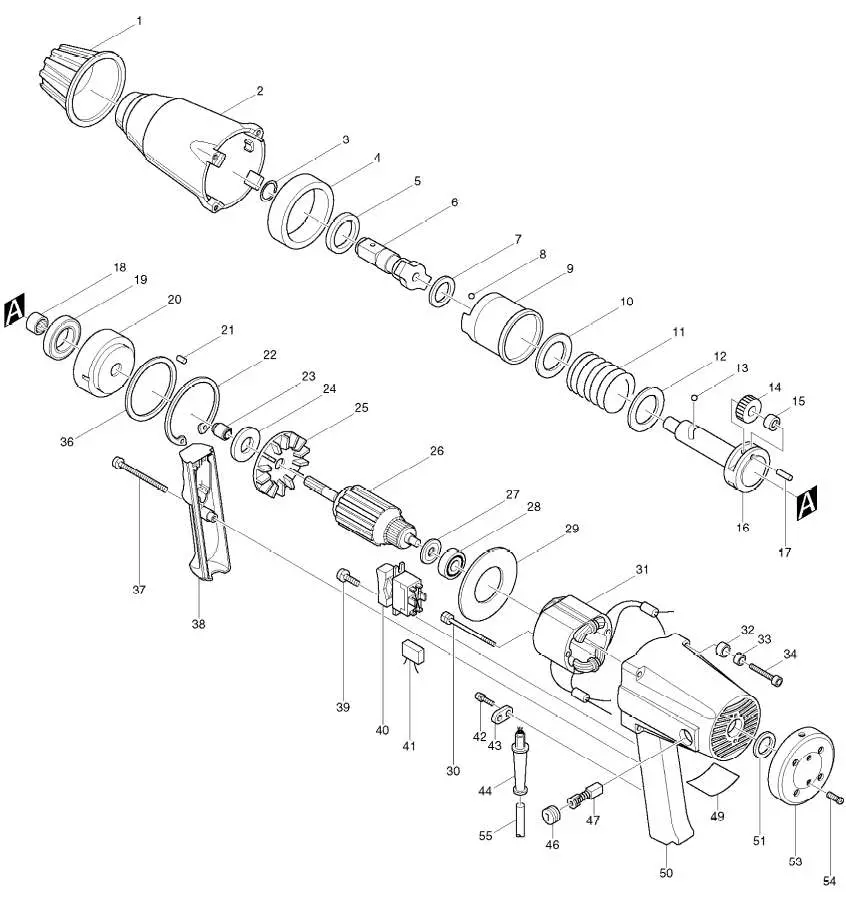

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | BUMPER | |
| 2 | HAMMER CASE | |
| 3 | RING SPRING 16 | |
| 4 | RING 65 | |
| 5 | FLAT WASHER 25 | |
| 6 | ANVIL | |
| 7 | WASHER 27 | |
| 8 | STEEL BALL 4 | |
| 9 | HAMMER | |
| 10 | FLAT WASHER 30 | |
| 11 | COMPRESSION SPRING 37 | |
| 12 | FLAT WASHER 36 | |
| 13 | STEEL BALL 7.1 | |
| 14 | SPUR GEAR 29 | |
| 15 | NEEDLE BEARING 609 | |
| 16 | SPINDLE | |
| 17 | PIN 6 | |
| 18 | NEEDLE BEARING 1412 | |
| 19 | BALL BEARING 3009 | |
| 20 | INTERNAL GEAR 65 | |
| 21 | PIN 5 | |
| 22 | RETAINING RING R-75 | |
| 23 | INNER SLEEVE 1016 | |
| 24 | FLAT WASHER 10 | |
| 25 | FAN 73 | |
| 26 | ARMATURE ASS\\\\\'Y 220V INC. 23-28 | |
| 27 | INSULATION WASHER | |
| 28 | BALL BEARING 608LLB | |
| 29 | BAFFLE PLATE | |
| 30 | + HEX. BOLT M5X70 | |
| 31 | FIELD ASS\\\\\'Y 220V | |
| 32 | CUP WASHER 5 | |
| 33 | URETHANE RING 5 | |
| 34 | HEX. SOCKET HEAD BOLT M5X40 | |
| 36 | FLAT WASHER 65 | |
| 37 | PAN HEAD SCREW M4X45 | |
| 38 | HANDLE COVER | |
| 39 | PAN HEAD SCREW M4X8 | |
| 40 | SWITCH SL220SD-4 | |
| 41 | NOISE SUPPRESSOR | |
| 42 | PAN HEAD SCREW M4X18 | |
| 43 | STRAIN RELIEF | |
| 44 | CORD GUARD 9.3-90 | |
| 46 | BRUSH HOLDER CAP 6-10 | |
| 47 | CARBON BRUSH CB-100 | |
| 49 | NAME PLATE 6906 | |
| 50 | MOTOR HOUSING | |
| 51 | URETHANE RING 18 | |
| 53 | REAR COVER | |
| 54 | HEX. SOCKET HEAD BOLT M5X16 | |
| 55 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 400 | GRIP 37 | |
| 401 | GRIP BASE | |
| 402 | BELT | |
| 403 | CAP SQUARE NECK BOLT M6X30 | |
| 404 | SOCKET 32-52 ASS\\\\\'Y | |
| 406 | STEEL CARRYING CASE | |
| 500 | GRIP ASS\\\\\'Y INC. 400-403 | |
| 501 | ANVIL ASS\\\\\'Y INC. 3,6 | |
| 900 | PAN HEAD SCREW M4X10 | |
| 904 | SPONGE SHEET | |
| 907 | TERMINAL PLATE | |
| 908 | MAKITA MARK |
