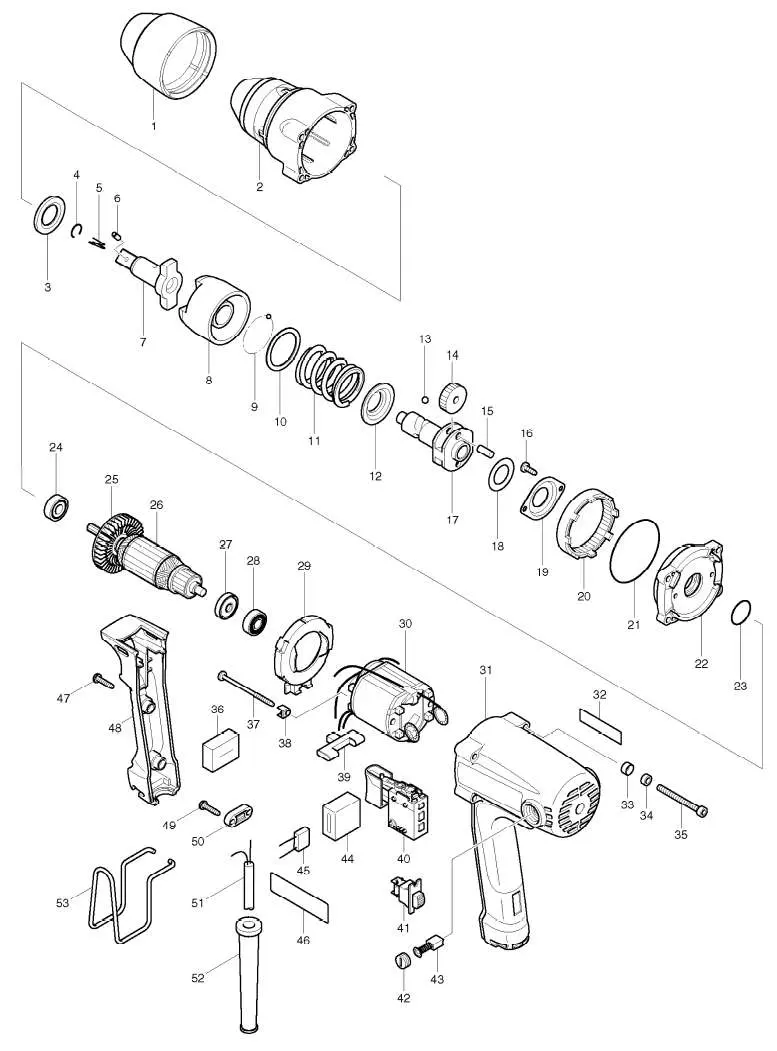

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | BUMPER | |
| 2 | HAMMER CASE COMPLETE | |
| 3 | FLAT WASHER 19 | |
| 4 | RING SPRING 10 | |
| 7 |  |
ANVIL |
| 8 |  |
HAMMER |
| 9 |  |
STEEL BALL 3.5 |
| 10 |  |
FLAT WASHER 32 |
| 11 |  |
COMPRESSION SPRING 30 |
| 12 |  |
CUP WASHER 19 |
| 13 |  |
STEEL BALL 6.4 |
| 14 |  |
SPUR GEAR 32 |
| 15 |  |
PIN 6 |
| 16 |  |
TAPPING SCREW BIND CT 4X12 |
| 17 |  |
SPINDLE |
| 18 |  |
FLAT WASHER 18 |
| 19 |  |
BEARING RETAINER 44 |
| 20 |  |
INTERNAL GEAR 71 |
| 21 |  |
O RING 58 |
| 22 |  |
INTERNAL GEAR COVER COMPLETE |
| 23 |  |
O RING 22 |
| 24 |  |
BALL BEARING 608DDW |
| 25 |  |
FAN 52 |
| 26 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 24,25,27,28 |
| 27 |  |
INSULATION WASHER |
| 28 |  |
BALL BEARING 607LLB |
| 29 |  |
BAFFLE PLATE |
| 30 |  |
FIELD ASS\\\\\'Y 220-240V |
| 31 |  |
MOTOR HOUSING COMPLETE |
| 32 |  |
MAKITA LABEL |
| 33 |  |
CUP WASHER 5 |
| 34 |  |
URETHANE RING 5 |
| 35 |  |
HEX. SOCKET HEAD BOLT M5X50 |
| 36 |  |
SPONGE SHEET |
| 37 |  |
TAPPING SCREW 4X50 |
| 38 |  |
INSULATION COVER |
| 39 |  |
F/L CHANGE LEVER |
| 40 |  |
SWITCH C3MA-DB |
| 42 |  |
BRUSH HOLDER CAP 5-8 |
| 43 |  |
CARBON BRUSH CB-411 |
| 45 |  |
NOISE SUPPRESSOR |
| 46 |  |
NAME PLATE TW0200 |
| 47 |  |
TAPPING SCREW 4X18 |
| 48 |  |
HANDLE COVER |
| 49 |  |
TAPPING SCREW 4X18 |
| 50 |  |
STRAIN RELIEF |
| 51 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 52 |  |
CORD GUARD 10 |
| 53 |  |
HOOK |
| A01 |  |
SOCKET 24-45 ASS\\\\\'Y |
| A02 |  |
PLASTIC CARRYING CASE |
