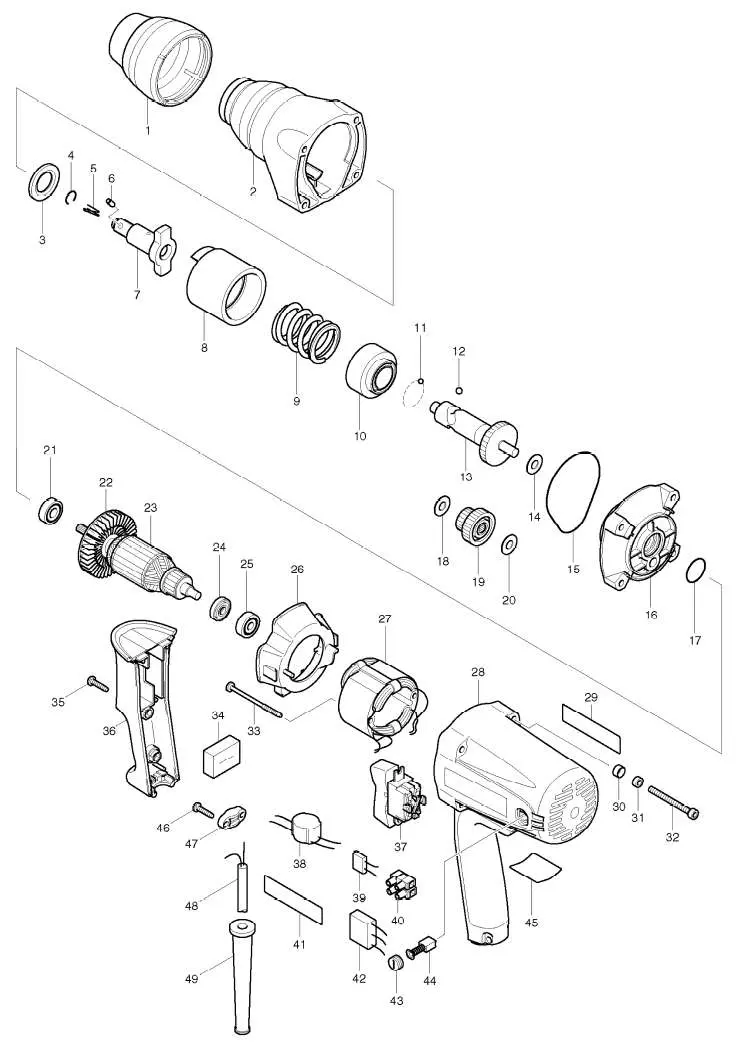

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
BUMPER |
| 2 |  |
HAMMER CASE COMPLETE |
| 3 |  |
FLAT WASHER 19 |
| 4 |  |
RING SPRING 10 |
| 7 | ANVIL | |
| 8 | HAMMER | |
| 9 | COMPRESSION SPRING 28 | |
| 10 | SPRING HOLDER | |
| 11 | STEEL BALL 4 | |
| 12 | STEEL BALL 6.4 | |
| 13 | SPINDLE | |
| 14 | FLAT WASHER 8 | |
| 15 | SEAL RING | |
| 16 | HAMMER CASE COVER COMPLETE | |
| 17 | O RING 22 | |
| 18 | FLAT WASHER 8 | |
| 19 | SPUR GEAR 19-41 COMPLETE | |
| 20 | FLAT WASHER 8 | |
| 21 | BALL BEARING 608LLU | |
| 22 | FAN 60 | |
| 23 | ARMATURE ASS\\\\\'Y 220-240V INC. 21,22,24,25 | |
| 24 | INSULATION WASHER | |
| 25 | BALL BEARING 627LLB | |
| 26 | BAFFLE PLATE | |
| 27 | FIELD ASS\\\\\'Y 220-240V | |
| 28 | MOTOR HOUSING | |
| 29 | MAKITA MARK | |
| 30 | CUP WASHER 5 | |
| 31 | URETHANE RING 5 | |
| 32 | HEX. SOCKET HEAD BOLT M5X50 | |
| 33 | TAPPING SCREW 4X50 | |
| 34 | SPONGE SHEET | |
| 35 | TAPPING SCREW 4X18 | |
| 36 | HANDLE COVER | |
| 37 | SWITCH SL220SD-19 | |
| 38 | LINE COIL | |
| 39 | RESISTOR | |
| 40 | TERMINAL BLOCK 2P | |
| 41 | MAKITA MARK | |
| 42 | NOISE SUPPRESSOR | |
| 43 | BRUSH HOLDER CAP 5-8 | |
| 44 | CARBON BRUSH CB-411 | |
| 45 | NAME PLATE TW0350 | |
| 46 | TAPPING SCREW 4X18 | |
| 47 | STRAIN RELIEF | |
| 48 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 49 |  |
CORD GUARD 10 |
| A01 |  |
PLASTIC CARRYING CASE |
| A02 |  |
SOCKET 24-45 ASS\\\\\'Y |
