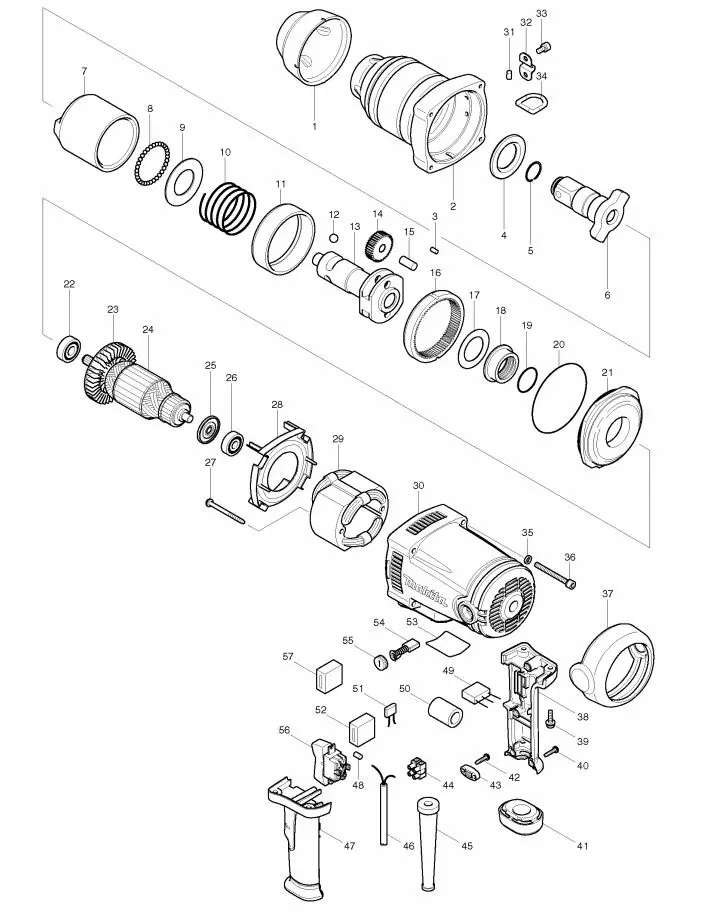

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
FRONT BUMPER TW1000 |
| 2 |  |
HAMMER CASE COMP TW1000 |
| 3 |  |
PIN 5 6503DW/6916D/6990D/LF10 |
| 4 |  |
FLAT WASHER 35 TW1000 |
| 5 |  |
RING SPRING 22 TW1000 |
| 6 |  |
ANVIL TW1000 |
| 7 |  |
HAMMER TW1000 |
| 8 |  |
*STEEL BALL 4.8 10PK |
| 9 |  |
FLAT WASHER 36 TW1000 |
| 10 |  |
COMPRESSION SPRING 36 TW1000 |
| 11 |  |
RING 79 TW1000 |
| 12 |  |
STEEL BALL 10.3 TW1000 |
| 13 |  |
SPINDLE TW1000 |
| 14 |  |
SPUR GEAR 37 TW1000 |
| 15 |  |
PIN 10 TW1000 |
| 16 |  |
INTERNAL GEAR 82 TW1000 |
| 17 |  |
FLAT WASHER 34 TW1000/2702 |
| 18 |  |
BEARING BOX TW1000 |
| 19 |  |
O RING 32 DA4031/4157KB/5903R |
| 20 |  |
O RING 95 HM1400/HM1810 |
| 21 |  |
HAMMER CASE COVER TW1000 |
| 22 |  |
BALL BEARING 6201LLU HM0860C |
| 24 |  |
ARMATURE 240V TW1000 |
| 24 |  |
ARMATURE 110V TW1000 |
| 25 |  |
INSULATION WASHER TW1000 |
| 26 |  |
BALL BEARING 6200LLB/9402 |
| 27 |  |
HEX HD SCREW M5 X 60 HM1100C |
| 28 |  |
BAFFLE PLATE TW1000 |
| 29 |  |
FIELD ASSY 110V TW1000 |
| 29 |  |
FIELD ASSY 240V TW1000 |
| 30 |  |
MOTOR HOUSING COMP TW1000 |
| 31 |  |
RUBBER PIN 6 BUH550RD/BST220/2 |
| 32 |  |
PLATE TW1000 |
| 33 |  |
HEX SOCKET HEAD BOLT M6 TW1000 |
| 34 |  |
D-RING TW1000 |
| 35 |  |
*FLAT WASHER 6 DIN125-B 10PK |
| 36 |  |
HEX.SOCKET HEAD BOLT M6X60 |
| 37 |  |
REAR BUMPER TW1000 |
| 38 |  |
HANDLE SET TW1000 |
| 39 |  |
*PAN HD SCREW 5X20 W/CP 10PK |
| 40 |  |
*PT SCREW 4X18 10PK KP0810C |
| 41 |  |
BUMPER TW1000 |
| 42 |  |
*PT SCREW 4X18 10PK KP0810C |
| 43 |  |
STRAIN RELIEF BO5041/KP0810 |
| 43 |  |
STRAIN RELIEF 110V KP0810C/ |
| 44 |  |
\\\'TERMINAL BLOCK 2P UH45/55/657 |
| 44 |  |
TERMINAL BLOCK 2012NB/LH1040 |
| 45 |  |
\\\'CORD GUARD KP312 |
| 46 | LEAD WIRE HP1641/TD0101F/KP081 | |
| 46 | POWER SUPPLY CORD 1.5-2-2.5 | |
| 47 | HANDLE SET TW1000 | |
| 48 | RUBBER PIN 6 BUH550RD/BST220/2 | |
| 49 | NOISE SUPPRESSOR 110V | |
| 50 | SPONGE SHEET RP1110C/8406/3620 | |
| 51 | \\\'RESISTER 6300LR/TW0350 | |
| 52 | SPONGE SHEET BO3700/4320/HM181 | |
| 53 | NAME PLATE TW1000 | |
| 54 | CARBON BRUSH CB-153 (CB-22)/94 | |
| 55 | BRUSH HOLDER CAP CB-5/UC3530A | |
| 56 | SWITCH SL220SD-19 BTW450 | |
| 57 | SPONGE SHEET BO3700/4320/HM181 |
