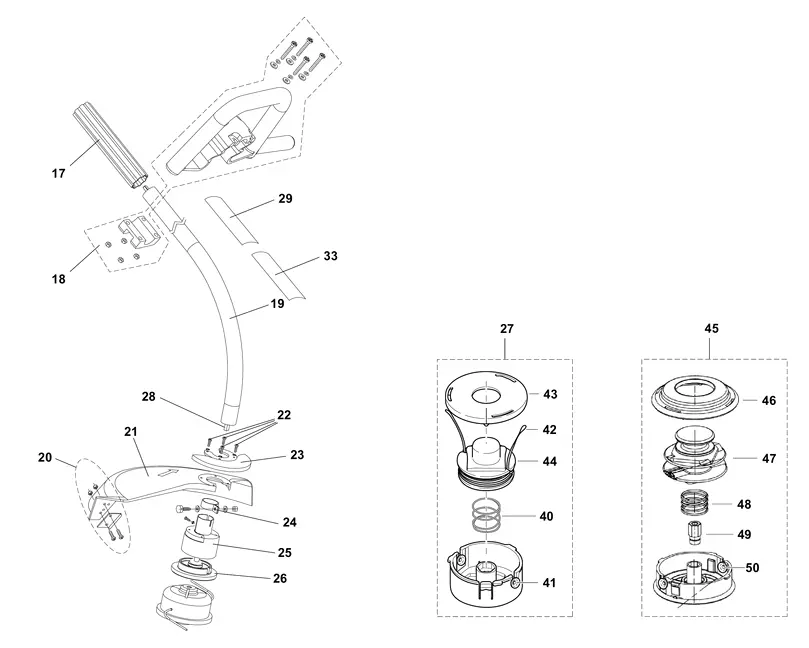

02 Main pipe, protection hood
02 Main pipe, protection hood
| П-п | Арт | Название |
|---|---|---|
| 17 | HANDLE Pipe ø 25,4 (до 2010-02) | |
| 17 | HANDLE Pipe ø 24 (с 2010-03) | |
| 18 | HANDLE CPL. | |
| 19 | MAIN PIPE Pipe ø 25,4 (до 2010-02) | |
| 19 | MAIN PIPE Pipe ø 24 (с 2010-03) | |
| 20 | LINE CUTTER CPL. | |
| 21 | PROTECTION HOOD | |
| 22 | SCREW | |
| 23 | GUARD EXTENSION | |
| 24 | CLAMPING RING | |
| 25 | GEAR HOUSING Pipe ø 25,4 (до 2010-02) | |
| 25 | GEAR HOUSING Pipe ø 24 (с 2010-03) | |
| 26 | WINDING PREVENTER | |
| 27 | DUAL LINE TRIMMING HEAD tap&go (ø2,0mm) | |
| 28 | TRANSMISSION SHAFT | |
| 29 | LABEL | |
| 33 | SAFETY LABEL | |
| 40 | SPRING | |
| 41 | THREAD BUSH | |
| 42 | SILENT NYLON LINE ø 2,0 x 15 m | |
| 42 | NYLON LINE ø 2,0 x 15 m | |
| 43 | COVER | |
| 44 | SPOOL | |
| 45 | DUAL LINE TRIMMING HEAD tap&go | |
| 46 | COVER | |
| 47 | SPOOL | |
| 48 | SPRING | |
| 49 | ADAPTOR | |
| 50 | THREAD BUSH |
