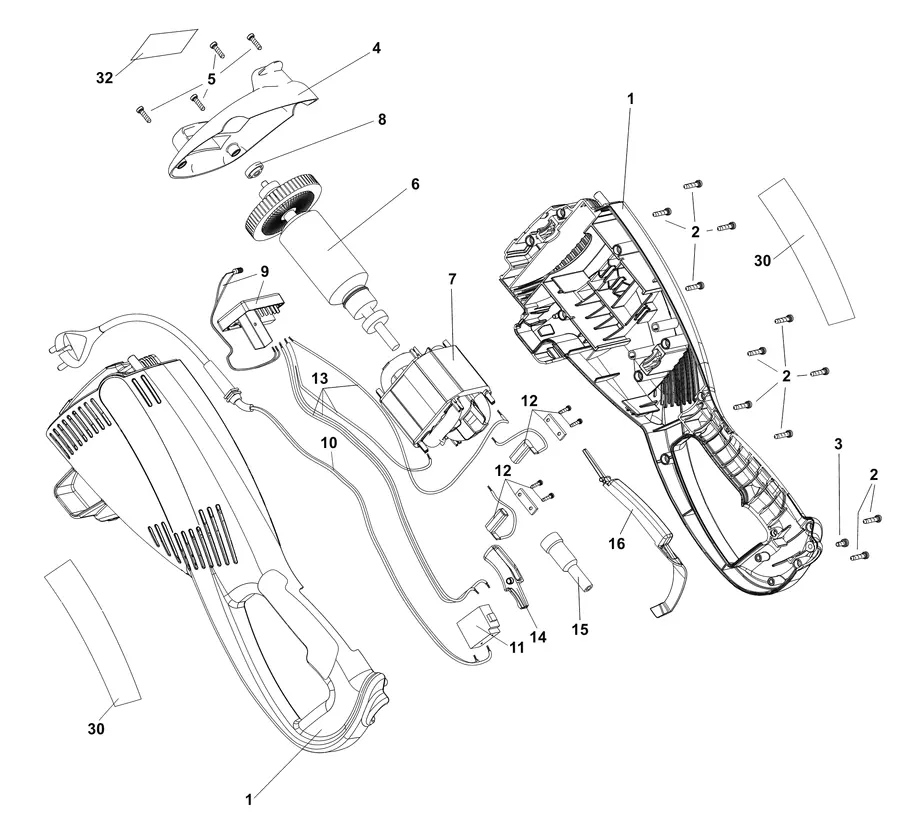

01 Motor
01 Motor
| П-п | Арт | Название |
|---|---|---|
| 1 | MOTOR CASE Pipe ø 25,4 (до 2010-02) | |
| 1 | MOTOR CASE Pipe ø 24 (с 2010-03) | |
| 2 | SCREW | |
| 3 | SCREW | |
| 4 | BACK COVER | |
| 5 | SCREW | |
| 6 | ROTOR ASSY. | |
| 7 | STATOR ASSY. | |
| 8 | PULSE GENERATOR | |
| 9 | ELECTRONIC MODULE | |
| 10 | CABLE WITH PLUG EU | |
| 11 | POWER SWITCH | |
| 12 | CARBON BRUSH (2 PCS.) | |
| 13 | SET OF WIRES | |
| 14 | TRIGGER | |
| 15 | JOINT | |
| 16 | CATCH LEVER | |
| 30 | LABEL | |
| 32 | LABEL |
