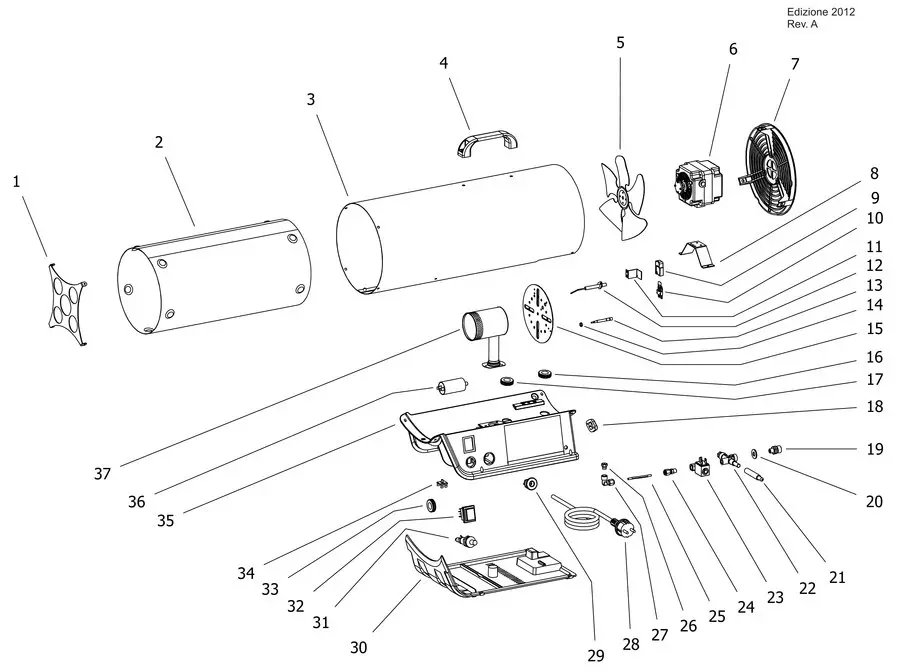

BLP 26 M (2012)
BLP 26 M (2012)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
OUTLET GRID |
| 2 |  |
COMBUSTION CHAMBER |
| 3 |  |
COVER |
| 4 |  |
PLASTIC HANDLE |
| 5 |  |
FAN |
| 6 |  |
MOTOR |
| 7 |  |
PLASTIC INLET GRID |
| 8 |  |
MOTOR BRACKET |
| 9 |  |
SAFETY THERMOSTAT COVER |
| 10 |  |
SAFETY THERMOSTAT |
| 11 |  |
SUPPORT FOR THERMOSTAT |
| 12 |  |
IGNITION ELECTRICAL FOLDER |
| 13 |  |
INTERRUPTED THERMOCOUPLE |
| 14 |  |
THERMOCOUPLE NUT |
| 15 |  |
BURNER PLATE |
| 16 |  |
GROMMET |
| 17 |  |
GROMMET |
| 18 |  |
BLOCK FOR NOZZLE |
| 19 |  |
GAS INLET NOZZLE |
| 20 |  |
WASHER |
| 21 |  |
VALVE ROD |
| 22 |  |
SAFETY VALVE |
| 23 |  |
ELECTROVALVE |
| 24 |  |
NIPPLES REDUCER |
| 25 |  |
COPPER TUBE |
| 26 |  |
GAS NOZZLE |
| 27 |  |
ELBOW |
| 28 |  |
POWER CORD |
| 29 |  |
KEEPER WIRE |
| 30 |  |
LOWER PLASTIC BASE |
| 31 |  |
PIEZO IGNITOR |
| 32 |  |
SWITCH |
| 33 |  |
GROMMET |
| 34 |  |
RIVET POP |
| 35 |  |
UPPER PLASTIC BASE |
| 36 |  |
CAPACITOR 2µF |
| 37 |  |
GAS BURNER |
