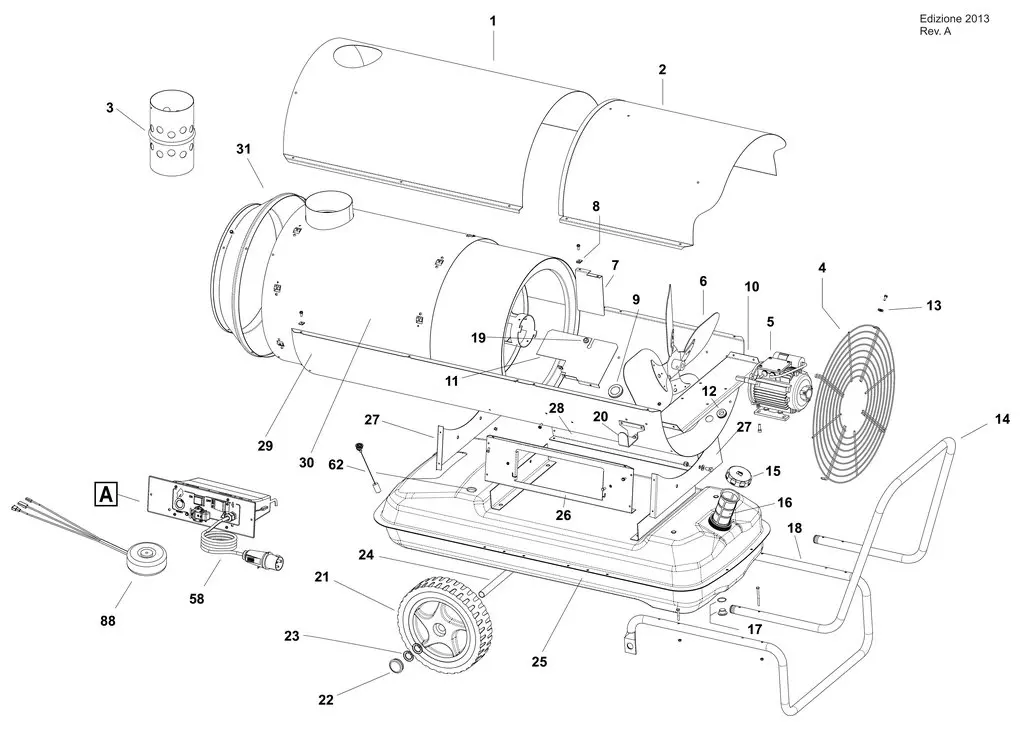

01 Нагреватель
01 Нагреватель
| П-п | Арт | Название |
|---|---|---|
| 1 | UPPER BODY | |
| 2 | UPPER BODY MOBILE | |
| 3 | CHIMNEY | |
| 4 | INLET GRILL | |
| 5 | MOTOR 4P 750 W | |
| 6 | FAN | |
| 7 | CENTRAL AIR FLAP | |
| 8 | CLIP NUT | |
| 9 | PROTECTION CABLE | |
| 10 | MOTOR FLANGE SUPPORT | |
| 11 | AIR FLAP | |
| 12 | PROTECTION CABLE | |
| 13 | ELASTIC PLATE | |
| 14 | HANDLE FRAME | |
| 15 | TANK CAP | |
| 16 | TANK FILTER | |
| 17 | DRAIN PLUG | |
| 18 | FOOT FRAME | |
| 19 | PROTECTION CABLE | |
| 20 | POWER CORD HOOK | |
| 21 | WHEEL | |
| 22 | WHEEL PLUG | |
| 23 | WHEEL HOLDER | |
| 24 | AXLE | |
| 25 | FUEL TANK | |
| 26 | ELECTR. COMPONENTS DRAWER PANEL | |
| 27 | LATERAL PANEL | |
| 28 | REAR PANEL | |
| 29 | LOWER BODY | |
| 30 | COMBUSTION CHAMBER | |
| 31 | OUTLET CONE | |
| 58 | POWER CORD UK YELLOW | |
| 62 | FUEL GAUGE | |
| 88 | AUTO-TRANSFORMER |
