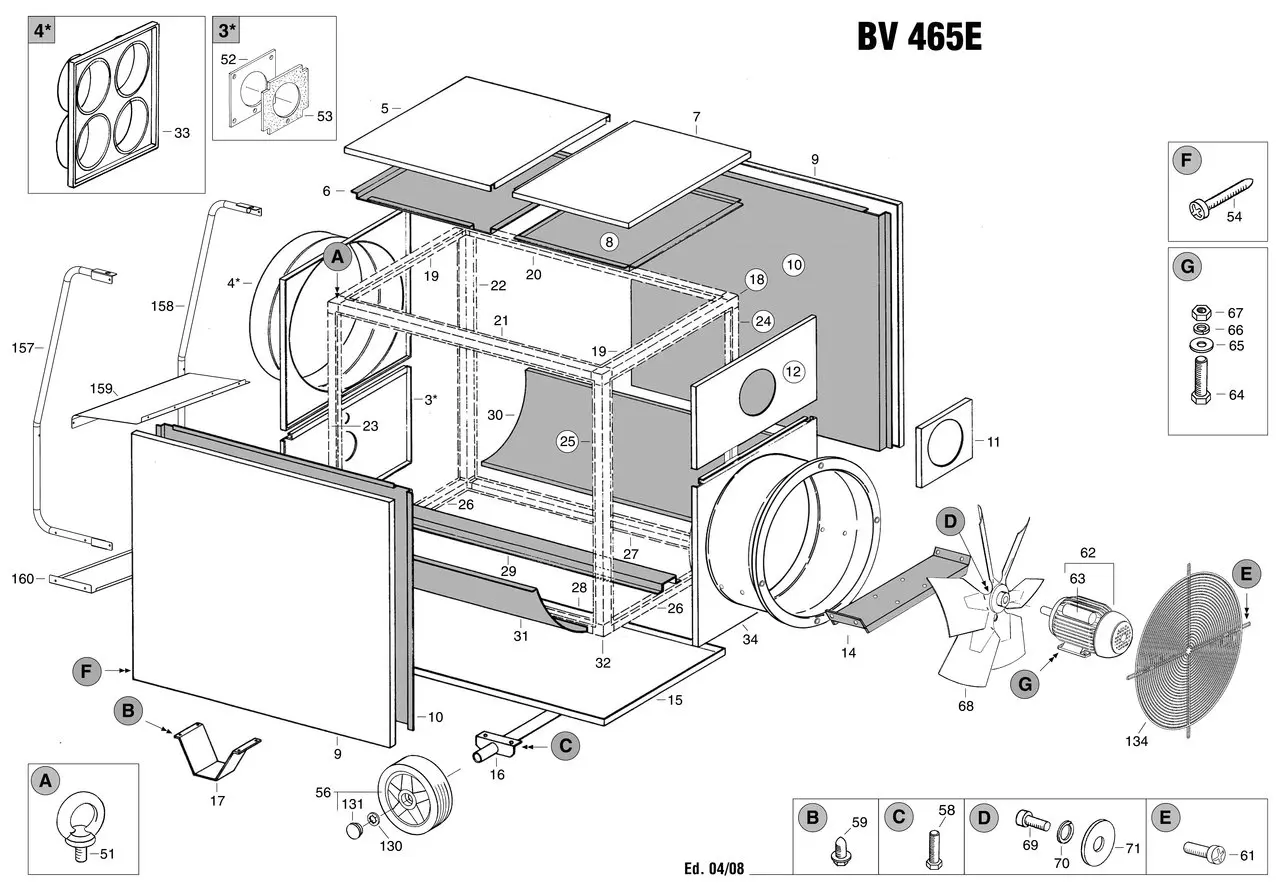

01 Корпус, Двигатель
01 Корпус, Двигатель
| П-п | Арт | Название |
|---|---|---|
| 3 | Burner Panel | |
| 4 | Outlet Air Panel Ø584 | |
| 5 | Front Upper Panel | |
| 6 | Inner Panel | |
| 7 | Rear Upper Panel | |
| 8 | Inner Panel | |
| 9 | Side Panel | |
| 10 | Inner Panel | |
| 11 | Chimney Flange Ø200 | |
| 12 | Chimney Panel | |
| 14 | Motor Support Plate | |
| 15 | Bottom Panel | |
| 16 | Wheels Axle | |
| 17 | Front Support | |
| 18 | Aluminum Joint With Nut M10 | |
| 19 | Upper Short Angle Steel | |
| 20 | Upper Long Sx Angle Steel | |
| 21 | Upper Long Dx Angle Steel | |
| 22 | Vertical Front Sx Angle Steel | |
| 23 | Vertical Front Dx Angle Steel | |
| 24 | Vertical Back Sx Angle Steel | |
| 25 | Vertical Back Dx Angle Steel | |
| 26 | Lower Short Angle Steel | |
| 27 | Lower Long Sx Angle Steel | |
| 28 | Lower Long Dx Angle Steel | |
| 29 | Comb. Chamber Support | |
| 30 | Comb. Chamber Sx Support | |
| 31 | Comb. Chamber Dx Support | |
| 32 | Aluminum Joint | |
| 33 | 4 Ways Ø275 Panel | |
| 34 | Fan Support Panel | |
| 51 | Suspending Ring Screw M10 | |
| 52 | Burner Support (Minor 20-Blu 170) | |
| 53 | Burner Plate Seal 210X210X5 | |
| 54 | Screw Tc 8X1\\\" | |
| 56 | Wheel Ø250 | |
| 58 | Screw Te M8X25 | |
| 59 | Screw Te14X1/2\\\" Fr | |
| 61 | Screw Tc M6X16 F.R. | |
| 62 | Motor Hp 1,5 V.230/50 1Ph | |
| 63 | Condenser Mf 32 | |
| 64 | Screw Te M8X30 | |
| 65 | Washer Ø8Xø24X2,5 | |
| 66 | Spring Washer Ø8 | |
| 67 | Nut M8 | |
| 68 | Fan Ø560 | |
| 69 | Screw Te M10X20 | |
| 70 | Spring Washer Ø10 | |
| 71 | Washer Ø11Xø35X2 | |
| 130 | Wheel Holder Ø25 | |
| 131 | Plastic Plug | |
| 134 | Inlet Grille | |
| 157 | Right Handle | |
| 158 | Left Handle | |
| 159 | Burner Casing Top Cover | |
| 160 | Casing Bottom |
