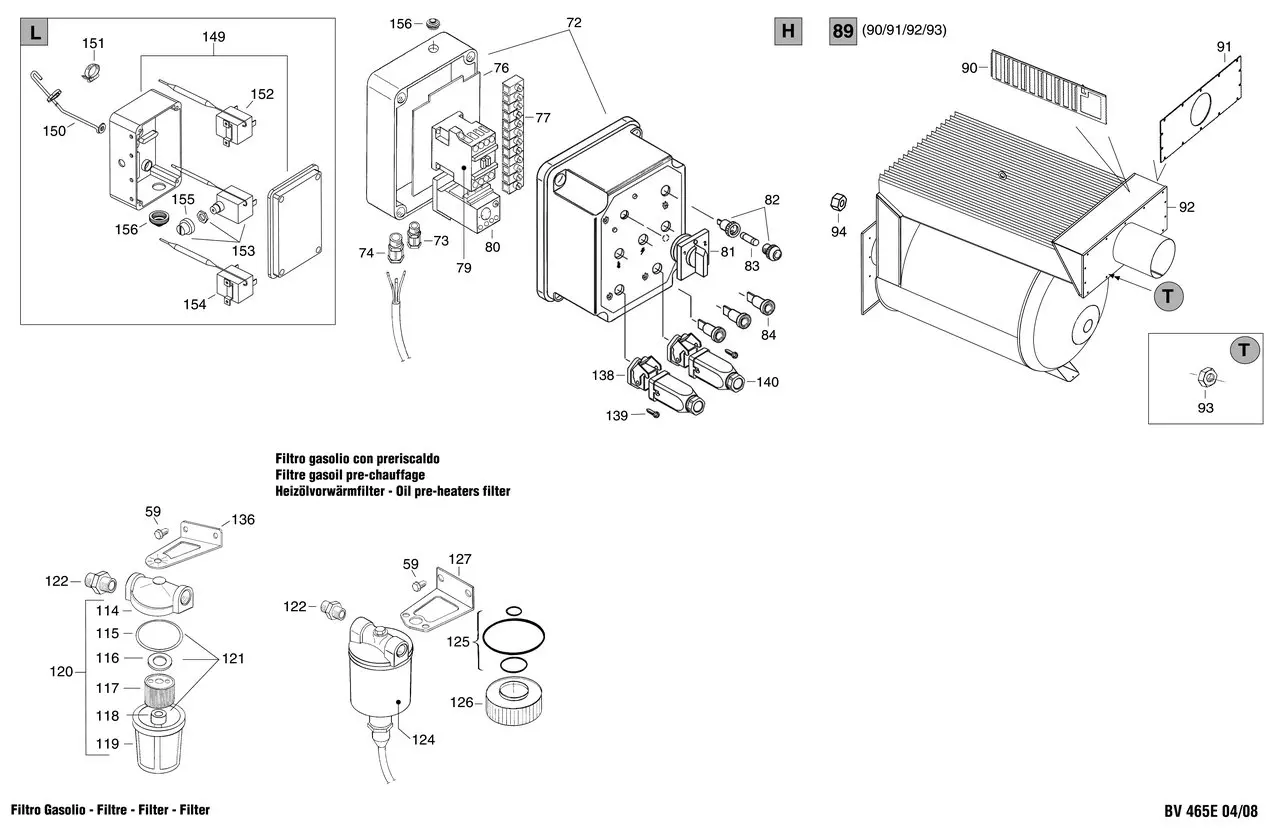

02 Камера сгорания, Термостат, Электрика, Фильтр
02 Камера сгорания, Термостат, Электрика, Фильтр
| П-п | Арт | Название |
|---|---|---|
| 59 | Screw Te14X1/2\\\" Fr | |
| 72 | El. Components Box | |
| 73 | Cable Fastener Pg 9 | |
| 74 | Cable Fastener Pg 11 | |
| 76 | El. Components Support Plate | |
| 77 | Terminal Board 12 El. Mmq 10 | |
| 79 | Contactor Wimex Kn16 V220 | |
| 80 | Relay Iskra Trb14 A. 6-10 | |
| 81 | Control Knob 1-0-2 | |
| 82 | Fuse Holder | |
| 83 | Fuse (5X20) A. 6 | |
| 84 | Red Pilot Lamp Ø12 V230 | |
| 89 | Combustion Chamber | |
| 90 | Baffle Plate | |
| 91 | Chimney Seal 513X248X5 | |
| 92 | Chimney Cover | |
| 93 | Nut M6 Ot | |
| 94 | Female Plug 1\\\" | |
| 114 | Filter Head 3/8\\\" | |
| 115 | Filter Or | |
| 116 | Upper Seal | |
| 117 | Filter Cartridge | |
| 118 | Lower Seal | |
| 119 | Filter Housing | |
| 120 | Filter 3/8\\\" | |
| 121 | Or Kit Filter | |
| 122 | Nipple 3/8\\\"M-1/4\\\"M | |
| 124 | Oil Pre-Heater | |
| 125 | Seal Kit For Oil Pre-Heater | |
| 126 | Filter Cartridge | |
| 127 | Filter Support | |
| 136 | Filter support | |
| 138 | Thermostat Socket | |
| 138 | Burner Socket | |
| 139 | Screw Tc 4X1/2\\\" | |
| 140 | Thermostat Plug (5 pin) | |
| 140 | Burner Plug (4 pin) | |
| 149 | El. Components Box | |
| 150 | Bulbs Holder | |
| 151 | Clip | |
| 152 | Thermostat Ty95 30/90 °C | |
| 153 | Thermostat Ty95H 120 °C | |
| 154 | Thermostat Ty95 0/60 °C | |
| 155 | Safety Thermostat Plastic Profile | |
| 156 | Cable Protection Ø19 | |
| H + L | El. Components Box COMPLETE | |
| не показано | Room Thermostat Th 5A | |
| не показано | Air Hose Ø610 Mm, 7,6 M For 1-Way Outlet | |
| не показано | Air Hose Ø510 Mm, 7,6 M For 2-Way Outlet | |
| не показано | Air Hose Ø305 Mm, 7,6 M For 4-Way Outlet | |
| не показано | Hose Binder | |
| не показано | Fuel Pipe Flex 4 M | |
| не показано | Riello Burner 40G20-TL |
