BV 470 FS
BV 470 FS

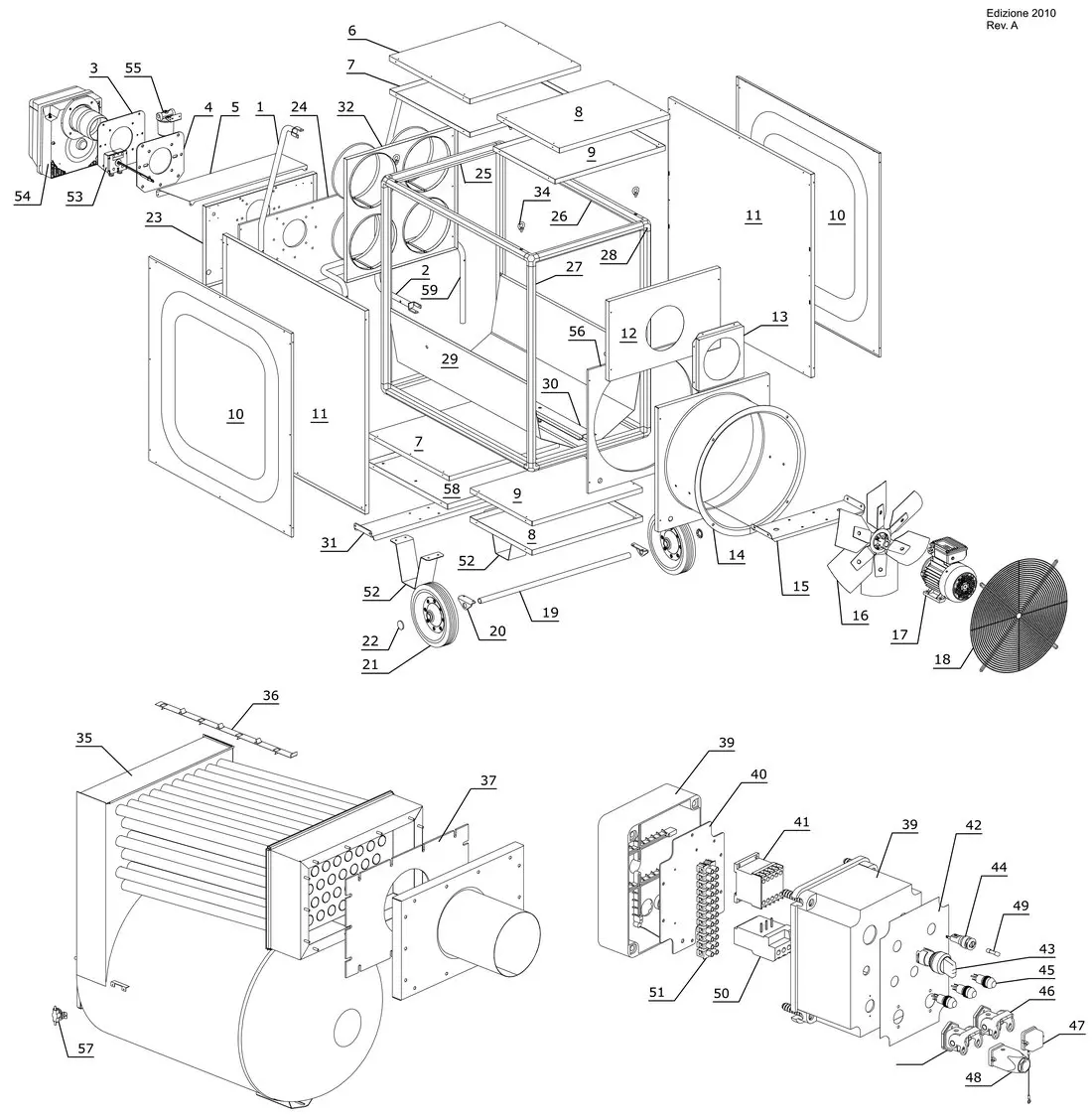

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Right Burner Protection |
| 2 |  |
Left Burner Protection |
| 3 |  |
Universal Slab |
| 4 |  |
Universal Slab Seal |
| 5 |  |
Burner Cover |
| 6 |  |
Top Bottom External Panel |
| 7 |  |
Top Internal Panel |
| 8 |  |
Top External Panel |
| 9 |  |
Bottom External Panel |
| 10 |  |
External Lateral Panel |
| 11 |  |
Internal Lateral Panel |
| 12 |  |
Rear Panel |
| 13 |  |
Chimney Bottom |
| 14 |  |
Fan Panel |
| 15 |  |
Support Bracket |
| 16 |  |
Fan |
| 17 |  |
Motor |
| 18 |  |
Protection Grill |
| 19 |  |
Wheels Axle |
| 20 |  |
Hub Bracket |
| 21 |  |
Black Rubber Wheel Diam. 300 |
| 22 |  |
Fixing Washer For Shaft With Cup |
| 23 | Front Panel Slab | |
| 24 | Burner Thermic Insulator | |
| 25 | Chamfered Profile For Panel 25 L=605 | |
| 26 | Chamfered Profile For Panel 25 L=1060 | |
| 27 | Chamfered Profile For Panel 25 L=994,5 | |
| 28 | 3 Way Corner For Chamfered Profile | |
| 29 | Air Direction Sheet | |
| 30 | Combustion Chamber Bracket | |
| 31 | Wheels Bracket | |
| 32 | 4-Way Panel | |
| 32 | 1-Way Panel (Optionally) | |
| 34 | Lifting Eye Bolt M8 | |
| 35 |  |
Combustion Chamber |
| 36 |  |
Bracket For Turbulence |
| 37 |  |
Exit Smoke Chamber Seal |
| 39 |  |
Waterprof Case (Front And Back) |
| 40 |  |
Electric Components Plate |
| 41 |  |
Contactor 4Kw 400V |
| 42 |  |
Panels Label |
| 43 |  |
Switch 3P |
| 44 |  |
Fuseholder 5X20, 6,3A |
| 45 |  |
Indicator Light 230V |
| 46 |  |
Socket Case |
| 47 |  |
Cap For Thermostat Plug |
| 48 |  |
Thermostat Plug |
| 49 |  |
Fuse 5X20 3,15A 250V |
| 50 |  |
Thermal Relay 6-9A |
| 51 |  |
Terminal Block 12T 4^2 |
| 52 |  |
Front Base Panel |
| 53 |  |
Fan Limit Double Thermostat |
| 54 |  |
Oil Burner RG3 F |
| 55 |  |
Oil Pre Heater |
| 56 |  |
Flange |
| 57 |  |
Overheat Thermostat |
| 58 |  |
Bottom External Panel I |
| 59 |  |
Holder |
