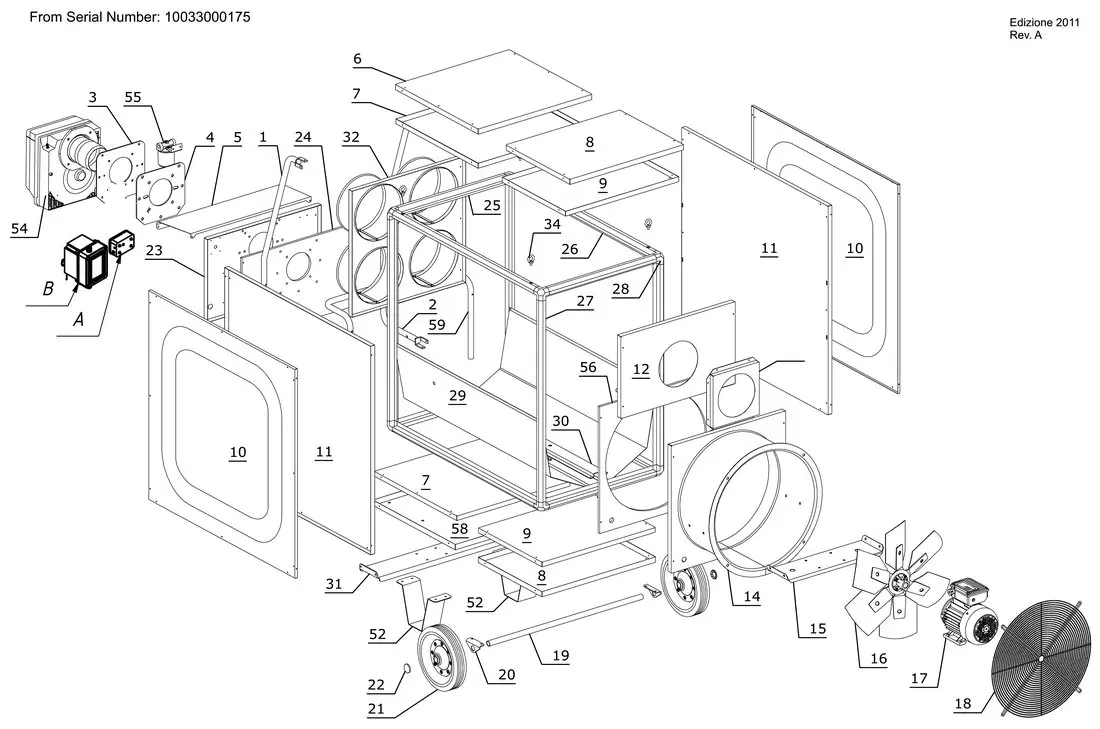

01 Корпус
01 Корпус
| П-п | Арт | Название |
|---|---|---|
| 1 | Right Burner Protection | |
| 2 | Left Burner Protection | |
| 3 | Universal Slab | |
| 4 | Universal Slab Seal | |
| 5 | Burner Cover | |
| 6 | Top Bottom External Panel | |
| 7 | Top Internal Panel | |
| 8 | Top External Panel | |
| 9 | Bottom External Panel | |
| 10 | External Lateral Panel | |
| 11 | Internal Lateral Panel | |
| 12 | Rear Panel | |
| 13 | Chimney Bottom | |
| 14 | Fan Panel | |
| 15 | Support Bracket | |
| 16 | Fan | |
| 17 | Motor | |
| 18 | Protection Grill | |
| 19 | Wheels Axle | |
| 20 | Hub Bracket | |
| 21 | Black Rubber Wheel Diam. 300 | |
| 22 | Fixing Washer For Shaft With Cup | |
| 23 | Front Panel Slab | |
| 24 | Burner Thermic Insulator | |
| 25 | Chamfered Profile For Panel 25 L=605 | |
| 26 | Chamfered Profile For Panel 25 L=1060 | |
| 27 | Chamfered Profile For Panel 25 L=994,5 | |
| 28 | 3 Way Corner For Chamfered Profile | |
| 29 | Air Direction Sheet | |
| 30 | Combustion Chamber Bracket | |
| 31 | Wheels Bracket | |
| 32 | 4-Way Panel | |
| 32 | 1-Way Panel (Optionally) | |
| 34 | Lifting Eye Bolt M8 | |
| 52 | Front Base Panel | |
| 54 | Oil Burner RG3 F | |
| 55 | Oil Pre Heater | |
| 56 | Flange | |
| 58 | Bottom External Panel I | |
| 59 | Holder | |
| A | Thermostat Box | |
| B | Electric Box for BV 470 FSR |
