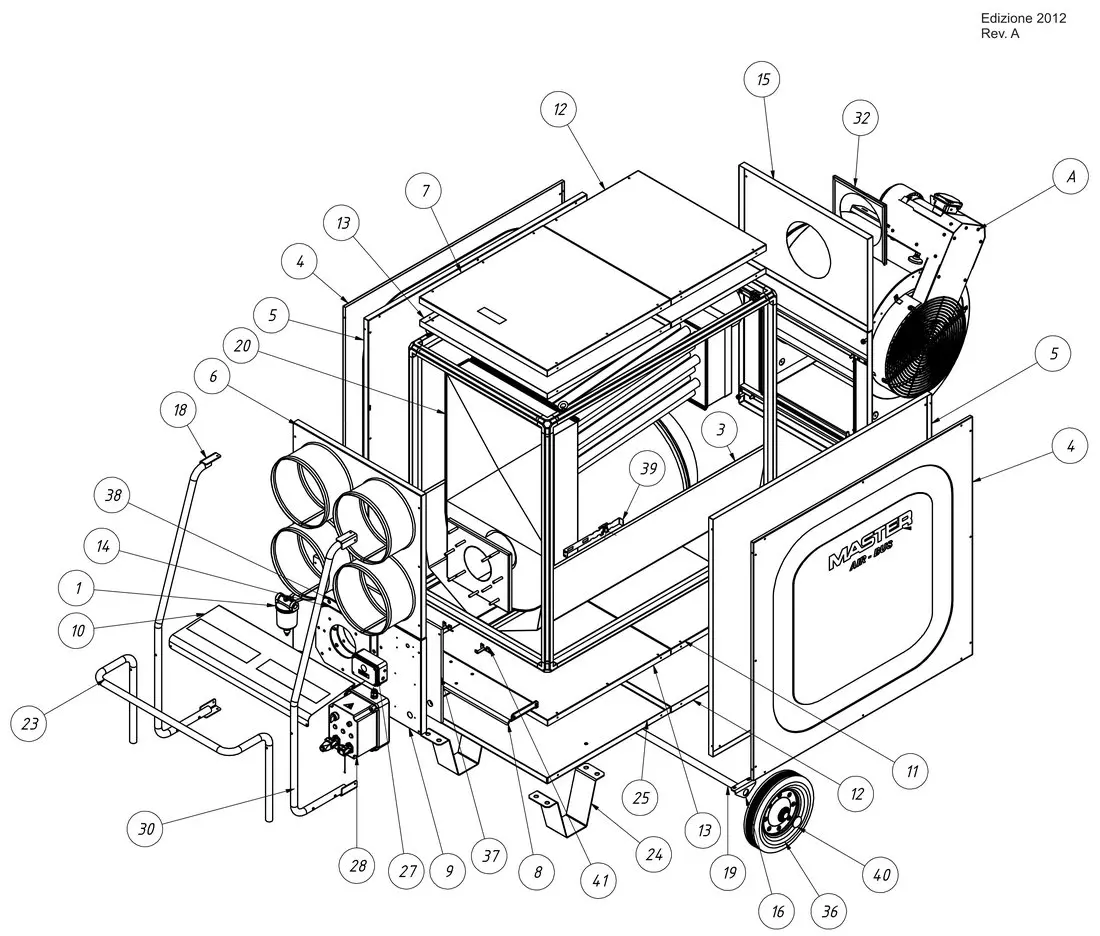

01 Корпус, Двигатель
01 Корпус, Двигатель
| П-п | Арт | Название |
|---|---|---|
| 1 | Oil Filtr-Pre Heater 3/8\\\" 100W 230V | |
| 3 | Air Direction Sheet | |
| 4 | External Lateral Panel | |
| 5 | Internal Lateral Panel | |
| 6 | 4 Way Panel | |
| 6 | 1 Way Panel (600Mm) | |
| 7 | Top Bottom External (Big) Panel | |
| 8 | Wheels Bracket | |
| 9 | Front Panel Slab | |
| 10 | Burner Cover | |
| 11 | Internal Top Small Panel | |
| 12 | External Top Small Panel | |
| 13 | Top Internal (Big) Panel | |
| 14 | Burner Mounting Plate | |
| 15 | Back Panel | |
| 16 | Hub Bracket | |
| 18 | Right Burner Protection | |
| 19 | Wheels Axle | |
| 20 | Combustion Chamber Bv470 | |
| 23 | Handle | |
| 24 | Front Base | |
| 25 | External Bottom Panel I | |
| 27* | Thermostat Box | |
| 28* | Electric Box | |
| 30 | Left Burner Protection | |
| 32 | Flange Cover Chimney 200mm | |
| 36 | Black Rubber Wheel Diam. 300 | |
| 37 | Burner Thermic Insulator | |
| 38 | Universal Slab Seal | |
| 39 | Bracket For Capillarys | |
| 40 |  |
Fixing Washer For Shaft With Cup |
| 41 |  |
Burner Stabilizer |
| не показано |  |
Oil Burner Rg3F (Nozzle 2.5Gph 60oW) |
