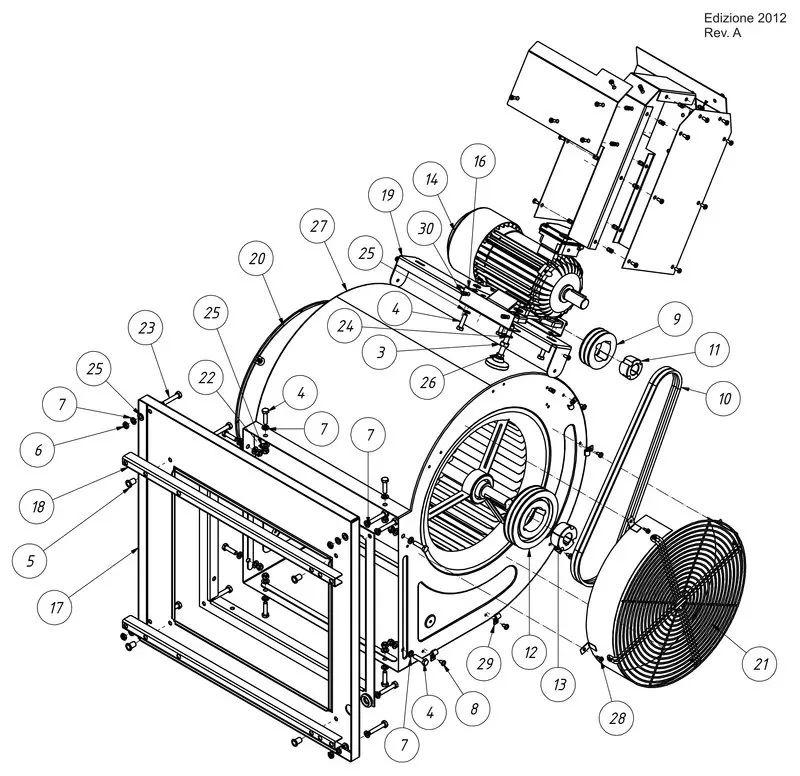

04 Центробежный вентилятор
04 Центробежный вентилятор
| П-п | Арт | Название |
|---|---|---|
| 3 |  |
Hexagon Nut M10 |
| 4 |  |
Hexagonal Head Bolt M8X30 |
| 5 |  |
Blind Rivet Nut M8 |
| 6 |  |
Hexagon Nut M8 |
| 7 |  |
Spring Washer |
| 8 |  |
Screw St5.5X13 |
| 9 |  |
Belt Pulley Spz 80X2 |
| 10 |  |
Wedge Belt Spz 1120 mm |
| 11 |  |
Taper Bush 1210/24 |
| 12 |  |
Belt Pulley Spz 132 X 2 |
| 13 |  |
Taper Bush 1610/25 |
| 14 |  |
Induction Motor 3~ 2,2Kw 400V |
| 16 |  |
Mount Of Motor Cover |
| 17 |  |
Fan Mounting Panel |
| 18 |  |
Fan Assembly Channel |
| 19 |  |
Motor Support |
| 20 |  |
Fan Grill Cover |
| 21 |  |
Fan Guard Cut |
| 22 |  |
Nylon Insert Lock Nut M8 |
| 23 |  |
Hexagonal Head Bolt M8X45 |
| 24 |  |
Plain Washer A10,5 |
| 25 |  |
Round Washer |
| 26 |  |
Footer Oscillating M10X68mm |
| 27 |  |
Centerfugal Fan At15/15S |
| 28 |  |
Self-Drilling Hexagon Head Screw St4,2X13 |
| 29 |  |
Clamp 8mm |
| 30 |  |
Steel Rived Nut Reduced Head M5 |
