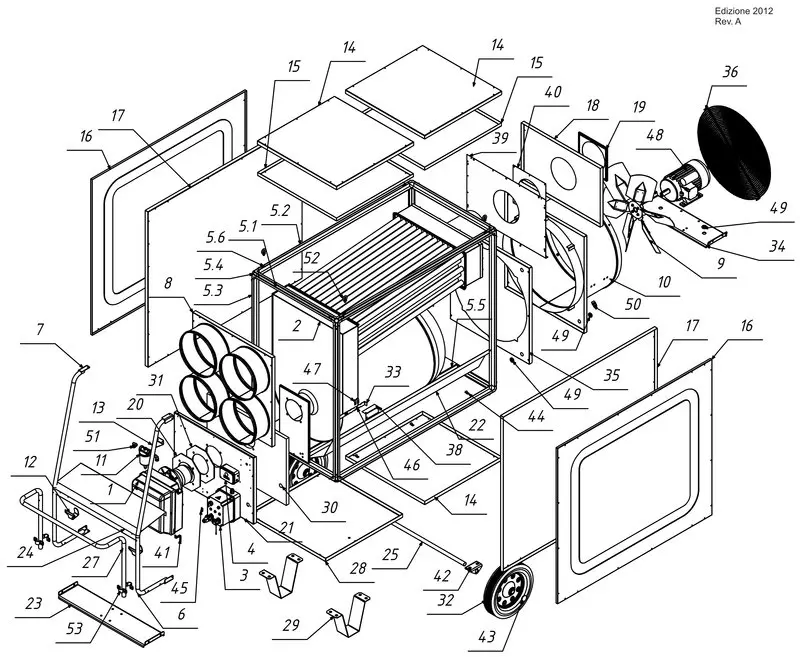

01 Корпус, Двигатель

П-п	Арт	Название
1		Oil Burner RG4F (Nozzle 4.5Gph 60oW)
2		Combustion Chamber 690 Complete
3*		Electric Box Bv 690 FT
4*		Thermostats Box
5.1		Chamfered Profile For Panel 25 L=690
5.2		Chamfered Profile For Panel 25 L=1381
5.3		Chamfered Profile For Panel 25 L=1200
5.4		3-Way Corner Forchmfered Profile
5.5		Supporting Beam Bv690
5.6		Threaded Block
6		Left Burner Protection
7		Right Burner Protection
8		4-Way Outlet
8		1-Way Outlet (Optiononally)
9		Fan Fi650/27o 6-Blade
10		Fan Panel D650
11		Oil Filter-Pre Heater 3/8\\\" 100W 230V
12		Cable Hanger
13		Support For Oil Filter With Preheater
14		External Panel
15		Upper Internal Panel
16		Lateral External Panel
17		Lateral Internal Panel
18		Chimney Panel
19		Flange Cover Chimney 200mm
20		Universal Plate
21		Burner External Panel
22		Air Direction Sheet
23		Rotating Wheel Support
24		Burner Cover
25		Axle
27		Handle
28		External Down Panel I
29		Front Base
30		Burner Thermic Insolator
31		Plate Seal
32		Metal Rubber Wheel Black Ø385
33		Capilary Bracket
34		Base For Motor D650 (H100mm)
35		Heat Shield Of Inlet D650
36		Protective Grid D650
38		Cover Of Capillarys
39		Heat Shield For Chimney
40		Flange Cover Chimney (Ø200)
41		Burner Stabilizer
42		Support For Wheel Axle Fi25X28
43		Fixing Washer For Shaft With Cup Ø25
44		Clamp 8mm
45		Clamp 6mm
46		Band Clip 06-11 5
47		Fitting The Capillary Tube
48		3-Fase Motor 2,2Kw 400V For BV 690 FT
49		Rubber Bushing
50		Cable Gland Pg-11 Black
51		Connection 3/8\\\"
52		Eye Bolt M8
53		Assembly Clamp Ø26Mm, M8
