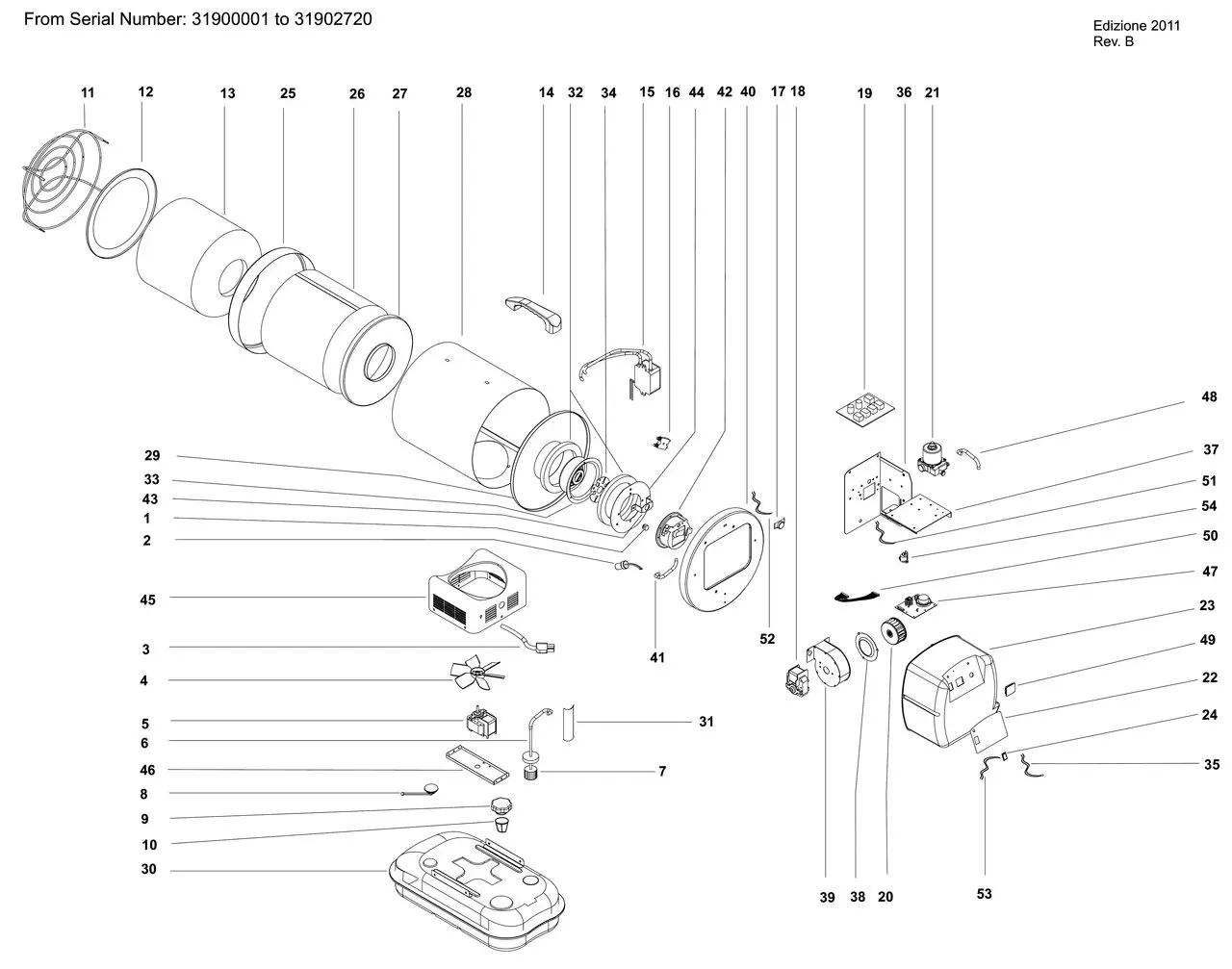

XL 5 (2011)(для серийных номеров с 31900001 до 31902720)
XL 5 (2011)(для серийных номеров с 31900001 до 31902720)
| П-п | Арт | Название |
|---|---|---|
| 1 | Nozzle | |
| 2 | Photocell Ass\\\'y | |
| 3 | Power Cord | |
| 4 | Cooling Fan Blade | |
| 5 | Cooling Fan Motor | |
| 6 | Intake Hose (FUEL) | |
| 7 | Oil filter Ass\\\'y | |
| 8 | Fuel Gauge Ass\\\'y | |
| 9 | Fuel Cap Ass\\\'y | |
| 10 | Fuel filter Ass\\\'y | |
| 11 | Safety Guard | |
| 12 | Heating Plate | |
| 13 | Chamber/Insulator | |
| 14 | Handle | |
| 15 | Ignitor | |
| 16 | Double Electrode | |
| 17 | Thermostat | |
| 18 | Blower Motor | |
| 19 | PC Board Ass\\\'y | |
| 20 | Blower Fan | |
| 21 | Electronic Pump | |
| 22 | Label for Cover | |
| 23 | Back Cover | |
| 24 | Power Switch | |
| 25 | Front shell Ring | |
| 26 | Combustion Chamber | |
| 27 | Rear Cover | |
| 28 | Shell | |
| 29 | Air Guard | |
| 30 | Fuel Tank Assy | |
| 31 | Pipe Cover | |
| 32 | Insulator Pad | |
| 33 | Diffuser | |
| 34 | Turbo disk | |
| 35 | Thermyster | |
| 36 | P.C.B Base | |
| 37 | Display Board Base | |
| 38 | Inlet | |
| 39 | Casing Blower | |
| 40 | Back Plate | |
| 41 | Fuel Pipe Ass\\\'y | |
| 42 | Burner Head | |
| 43 | Photocell Bracket | |
| 44 | Insulator Plate | |
| 45 | Combustion Chamber Support | |
| 46 | Motor Support | |
| 47 | Display Board | |
| 48 | Return Fuel Pipe | |
| 49 | Display Cover | |
| 50 | Complete Wire Board-Display | |
| 51 | Complete Wire Anti-Tilting Switch | |
| 52 | Complete Wire Overheat Thermostat | |
| 53 | Complete Wire Switch | |
| 54 | Anti-Tilting Switch |
