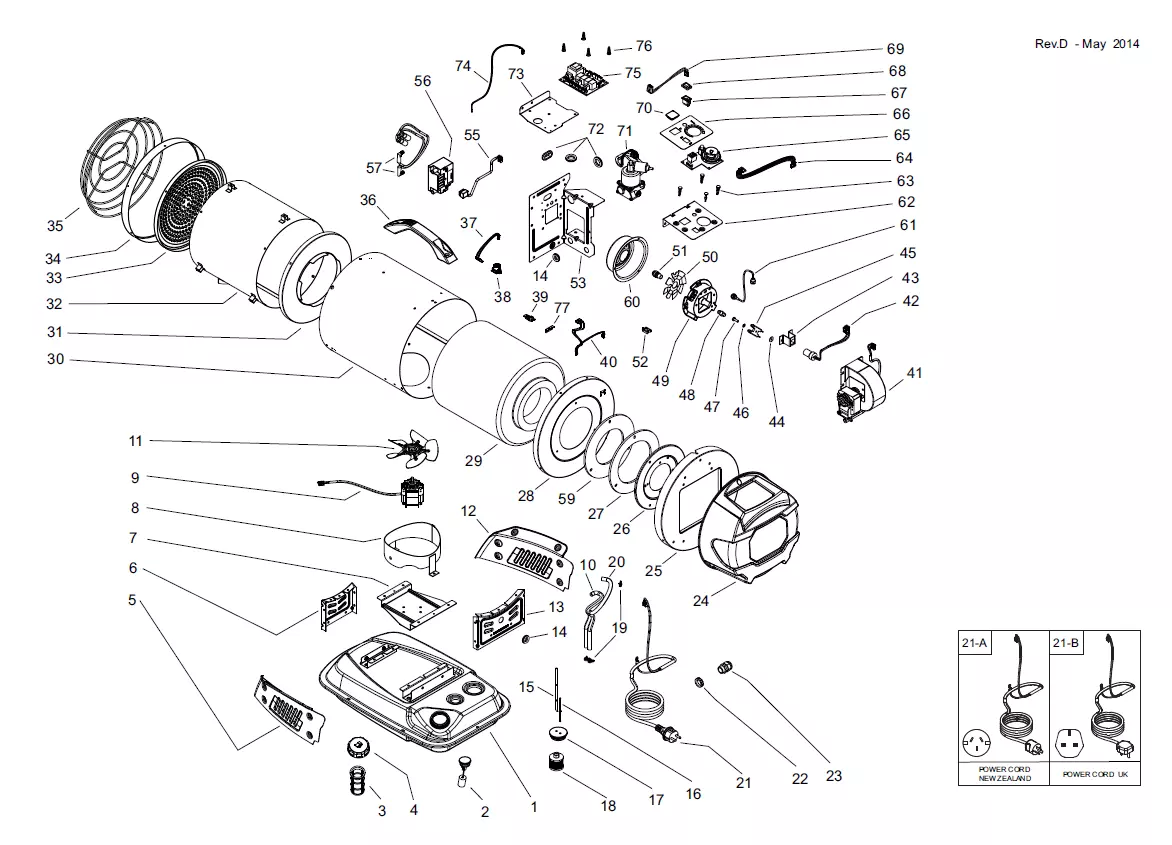

XL 6 (2014)(с серийного номера 21734000000)
XL 6 (2014)(с серийного номера 21734000000)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TANK COMPLETE |
| 2 |  |
FUEL GAUGE |
| 3 |  |
TANK FILTER |
| 4 |  |
COMPLETE TANK CAP |
| 5 |  |
LATERAL LEFT PANEL |
| 6 |  |
FRONT BRACKET SHELL SUPPORT |
| 7 |  |
MOTOR SUPPORT BRACKET |
| 8 |  |
COMPLETE CONVEYOR |
| 9 |  |
VENTILATION MOTOR WITH CABLE |
| 10 |  |
FUEL PIPE IN PUMP-FILTER |
| 11 |  |
FAN |
| 12 |  |
LATERAL RIGHT PANEL |
| 13 |  |
REAR BRACKET SHELL SUPPORT |
| 14 |  |
BLACK PVC CABLE FEEDTHROUGH Ø18X2 |
| 15 |  |
FUEL PIPE IN |
| 16 |  |
FUEL PIPE OUT |
| 17 |  |
RUBBER BUSH |
| 18 |  |
PAPER FILTER |
| 19 |  |
CLAMPS HOSE |
| 20 |  |
FUEL PIPE OUT PUMP-FILTER |
| 21 |  |
POWER CORD SCHUKO |
| 21-A |  |
POWER CORD NEW ZEALAND |
| 21-B |  |
POWER CORD UK |
| 22 |  |
LOCKNUT NYLON |
| 23 |  |
STRAIN RELIEF BUSHING |
| 24 |  |
COVER |
| 25 |  |
REAR PLATE COMPLETE |
| 26 |  |
FLANGE MOLDED |
| 27 |  |
GASKET OF CERAMIC FIBER |
| 28 |  |
BOTTOM PLATE |
| 29 |  |
CHAMBER INSULATOR |
| 30 |  |
SHELL |
| 31 |  |
REAR COVER |
| 32 |  |
COMBUSTION CHAMBER WITH BRACKET |
| 33 |  |
HEATING PLATE |
| 34 |  |
FRONT SHELL RING |
| 35 |  |
FRONT GRILL |
| 36 |  |
PLASTIC HANDLE |
| 37 |  |
WIRE SENSOR TILTING |
| 38 |  |
ANTI-TILTING SWITCH |
| 39 |  |
OVER-HEAT THERMOSTAT 90°C |
| 40 |  |
WIRE OVER-HEAT THERMOSTAT |
| 41 |  |
MOTOR CENTRIFUGAL COMBUSTION |
| 42 |  |
PHOTOCELL |
| 43 |  |
PHOTOCELL BRACKET |
| 44 |  |
WASHER CERAMIC FIBER |
| 45 |  |
BIFILAR ELECTRODES |
| 46 | ELASTIC WASHER GROWER | |
| 47 | SCREW | |
| 48 | CONNECTION STRAIGHT | |
| 49 | BURNER HEAD | |
| 50 | TURBO DISK | |
| 51 | NOZZLE 0,40 GPH 80° H LE | |
| 52 | PLASTIC CONDUIT | |
| 53 | LATERAL PLATE SUPPORT | |
| 55 | TRANSFORMER CABLE | |
| 56 | TRANSFORMER | |
| 57 | HIGH TENSION CABLE | |
| 59 | GASKET OF CERAMIC FIBER | |
| 60 | DIFFUSER | |
| 61 | OIL SUPPLY | |
| 62 | SUPPORT DISPLAY-BOARD | |
| 63 | SPACER DISPLAY-BOARD | |
| 64 | WIRE DISPLAY PC-BOARD | |
| 65 | DISPLAY BOARD | |
| 66 | FRONT LABEL | |
| 67 | ROCKER SWITCH 10A | |
| 68 | COVER SWITCH | |
| 69 | WIRE ROCKER SWITCH | |
| 70 | COVER DISPLAY | |
| 71 | SOLENOID PUMP | |
| 72 | CABLE FEEDTHROUGH | |
| 73 | PLATE SUPPORT | |
| 74 | WIRE SENSOR TEMPERATURE | |
| 75 | PC BOARD | |
| 76 | SPACER PC-BOARD | |
| 77 | THERMOSTAT BRACKET | |
| 3 | TANK FILTER | |
| 9 | VENTILATION MOTOR WITH CABLE | |
| 10 | FUEL PIPE IN PUMP-FILTER | |
| 20 | FUEL PIPE OUT PUMP-FILTER | |
| 29 | CHAMBER INSULATOR | |
| 38 | ANTI-TILTING SWITCH | |
| 39 | OVER-HEAT THERMOSTAT 90°C | |
| 41 | MOTOR CENTRIFUGAL COMBUSTION | |
| 51 | NOZZLE 0,40 GPH 80° H LE | |
| 56 | TRANSFORMER | |
| 65 | DISPLAY BOARD | |
| 71 | SOLENOID PUMP | |
| 75 | PC BOARD |
