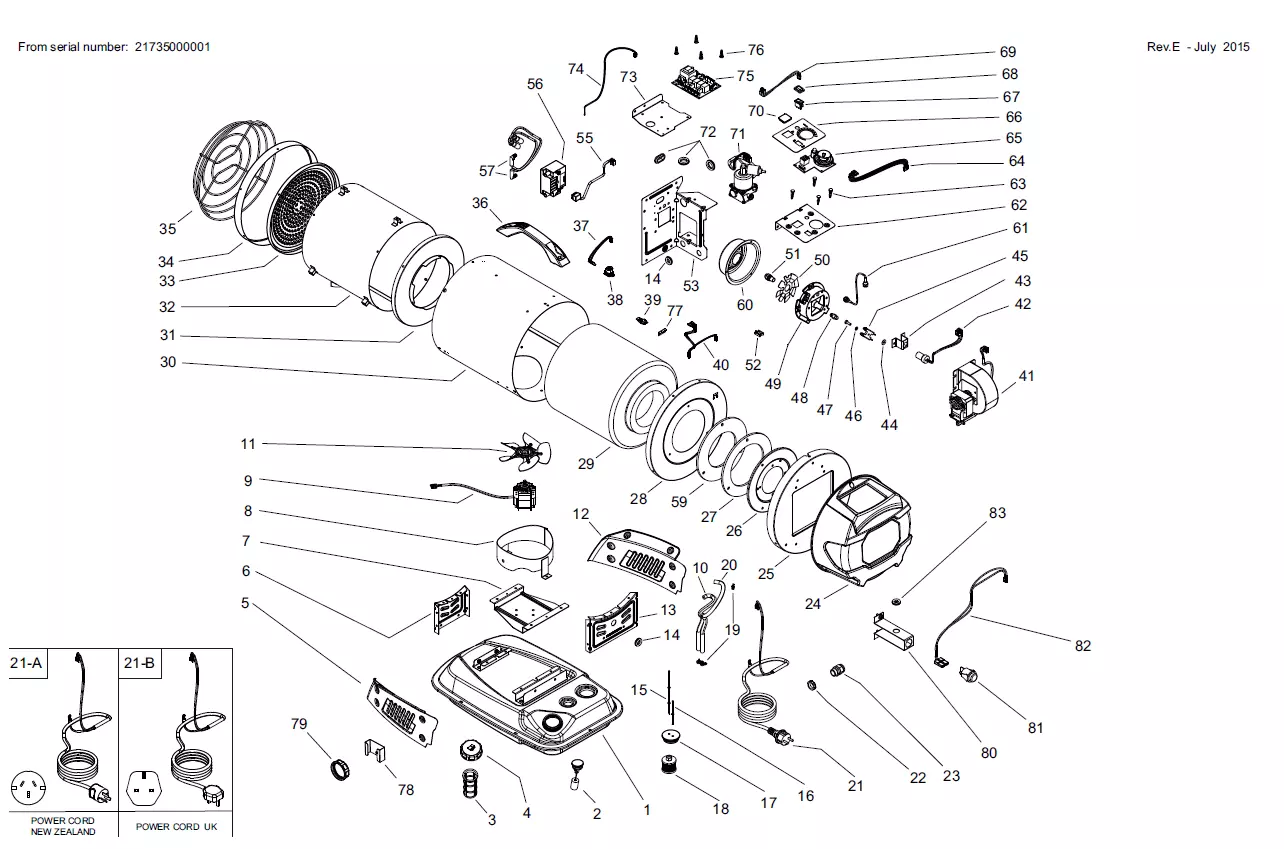

XL 6 (2015)(с серийного номера 21735000001)
XL 6 (2015)(с серийного номера 21735000001)
| П-п | Арт | Название |
|---|---|---|
| 1 | TANK COMPLETE | |
| 2 | FUEL GAUGE | |
| 3 | TANK FILTER | |
| 4 | COMPLETE TANK CAP | |
| 5 | LATERAL LEFT PANEL | |
| 6 | FRONT BRACKET SHELL SUPPORT | |
| 7 | MOTOR SUPPORT BRACKET | |
| 8 | COMPLETE CONVEYOR | |
| 9 | VENTILATION MOTOR WITH CABLE | |
| 10 | FUEL PIPE IN PUMP-FILTER | |
| 11 | FAN | |
| 12 | LATERAL RIGHT PANEL | |
| 13 | REAR BRACKET SHELL SUPPORT | |
| 14 | BLACK PVC CABLE FEEDTHROUGH Ø18X2 | |
| 15 | FUEL PIPE IN | |
| 16 | FUEL PIPE OUT | |
| 17 | RUBBER BUSH | |
| 18 | PAPER FILTER | |
| 19 | CLAMPS HOSE | |
| 20 | FUEL PIPE OUT PUMP-FILTER | |
| 21 | POWER CORD SCHUKO | |
| 21-A | POWER CORD NEW ZEALAND | |
| 21-B | POWER CORD UK | |
| 22 | LOCKNUT NYLON | |
| 23 | STRAIN RELIEF BUSHING | |
| 24 | COVER | |
| 25 | REAR PLATE COMPLETE | |
| 26 | FLANGE MOLDED | |
| 27 | GASKET OF CERAMIC FIBER | |
| 28 | BOTTOM PLATE | |
| 29 | CHAMBER INSULATOR | |
| 30 | SHELL | |
| 31 | REAR COVER | |
| 32 | COMBUSTION CHAMBER WITH BRACKET | |
| 33 | HEATING PLATE | |
| 34 | FRONT SHELL RING | |
| 35 | FRONT GRILL | |
| 36 | PLASTIC HANDLE | |
| 37 | WIRE SENSOR TILTING | |
| 38 | ANTI-TILTING SWITCH | |
| 39 | OVER-HEAT THERMOSTAT 90°C | |
| 40 | WIRE OVER-HEAT THERMOSTAT | |
| 41 | MOTOR CENTRIFUGAL COMBUSTION | |
| 42 | PHOTOCELL | |
| 43 | PHOTOCELL BRACKET | |
| 44 | WASHER CERAMIC FIBER | |
| 45 | BIFILAR ELECTRODES | |
| 46 | ELASTIC WASHER GROWER | |
| 47 | SCREW | |
| 48 | CONNECTION STRAIGHT | |
| 49 | BURNER HEAD | |
| 50 | TURBO DISK | |
| 51 | NOZZLE 0,40 GPH 80° H LE | |
| 52 | PLASTIC CONDUIT | |
| 53 | LATERAL PLATE SUPPORT | |
| 55 | TRANSFORMER CABLE | |
| 56 | TRANSFORMER | |
| 57 | HIGH TENSION CABLE | |
| 59 | GASKET OF CERAMIC FIBER | |
| 60 | DIFFUSER | |
| 61 | OIL SUPPLY | |
| 62 | SUPPORT DISPLAY-BOARD | |
| 63 | SPACER DISPLAY-BOARD | |
| 64 | WIRE DISPLAY PC-BOARD | |
| 65 | DISPLAY BOARD | |
| 66 | FRONT LABEL | |
| 67 | ROCKER SWITCH 10A | |
| 68 | COVER SWITCH | |
| 69 | WIRE ROCKER SWITCH | |
| 70 | COVER DISPLAY | |
| 71 | SOLENOID PUMP | |
| 72 | CABLE FEEDTHROUGH | |
| 73 | PLATE SUPPORT | |
| 74 | WIRE SENSOR TEMPERATURE | |
| 75 | PC BOARD | |
| 76 | SPACER PC-BOARD | |
| 77 | THERMOSTAT BRACKET | |
| 78 | BRACKET FOR RED CAP | |
| 79 | RED CAP FOR SHIPPING USE ONLY | |
| 80 | RESET BUTTON BRACKET | |
| 81 | RESET PUSH-BUTTON | |
| 82 | RESET WIRE | |
| 83 | STRAIN RELIEF | |
| 3 | TANK FILTER | |
| 9 | VENTILATION MOTOR WITH CABLE | |
| 10 | FUEL PIPE IN PUMP-FILTER | |
| 20 | FUEL PIPE OUT PUMP-FILTER | |
| 29 | CHAMBER INSULATOR | |
| 38 | ANTI-TILTING SWITCH | |
| 39 | OVER-HEAT THERMOSTAT 90°C | |
| 41 | MOTOR CENTRIFUGAL COMBUSTION | |
| 51 | NOZZLE 0,40 GPH 80° H LE | |
| 56 | TRANSFORMER | |
| 65 | DISPLAY BOARD | |
| 71 | SOLENOID PUMP | |
| 75 | PC BOARD |
