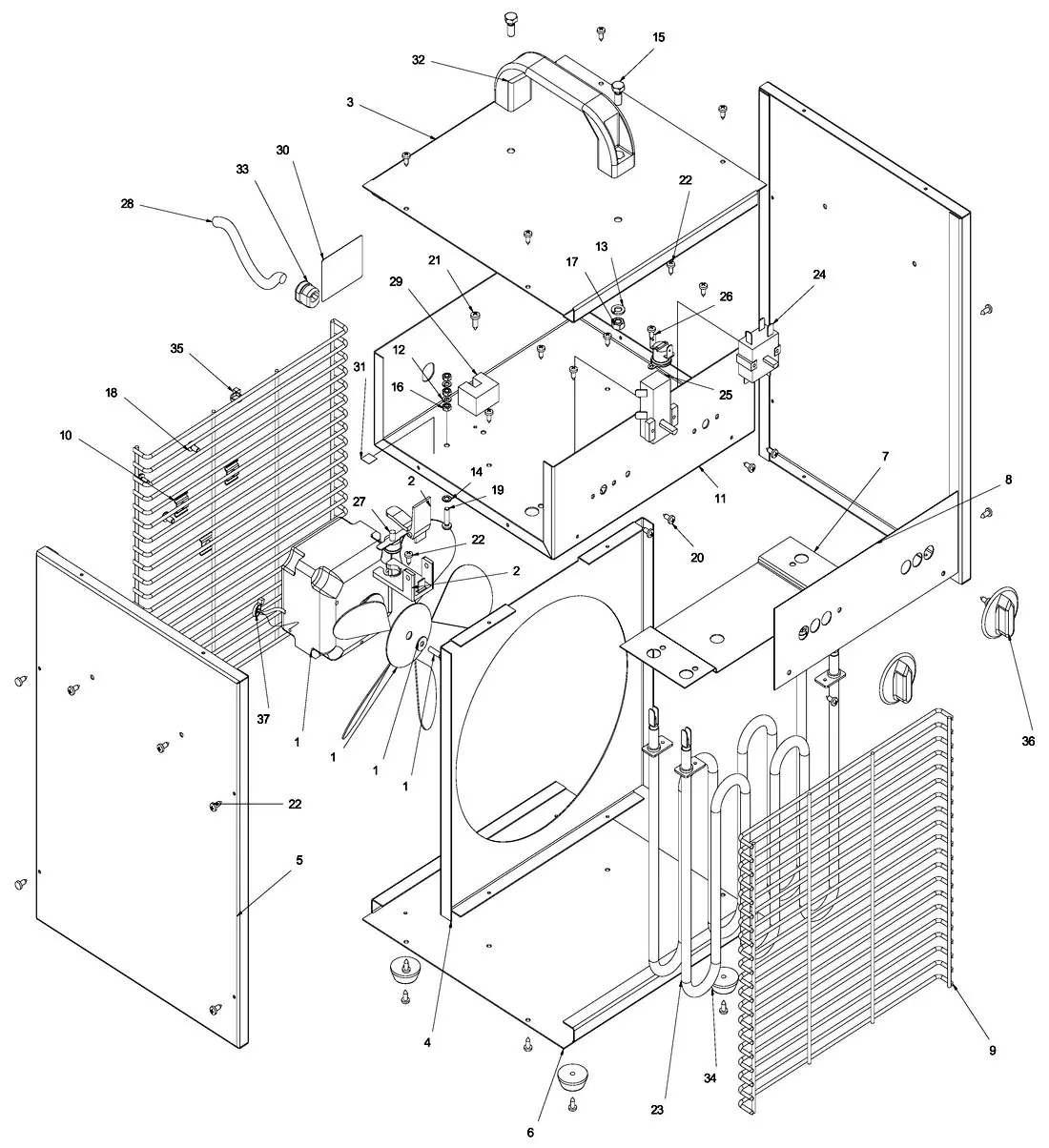

Деталировка B 3.3 EPA
Деталировка B 3.3 EPA
| П-п | Арт | Название |
|---|---|---|
| 1.1 | SCREW M4x16 | |
| 1.2 | MOTOR 5W/230V | |
| 1.3 | FAN | |
| 1.4 | WASHER 4,3 12mm | |
| 2.1 | BASE FOR RESET LEVER | |
| 2.2 | RESET LEVER | |
| 3 | TOP COVER | |
| 4 | ROUND COVER | |
| 5 | SIDE COVER | |
| 6 | DOWN COVER | |
| 7 | HEAT SHIELD | |
| 8 | NAME PLATE | |
| 9 | GRILL | |
| 10 | WASHER | |
| 11 | SHELF | |
| 12 | WASHER A4 | |
| 13 | WASHER A6 | |
| 14 | WASHER A4,3 | |
| 15 | SCREW M6x14 | |
| 16 | NUT M4 | |
| 17 | NUT M6 | |
| 18 | TAP SCREW M4x8 | |
| 19 | TAP SCREW M4x16 | |
| 20 | TAP SCREW ST3,5x9,5 | |
| 21 | TAP SCREW ST3,9x13 | |
| 22 | TAP SCREW ST3,9x9,5 | |
| 23 | HEATING ELEMENT 1666W | |
| 24 | SWITCH | |
| 25 | BIMETAL THERMOSTAT | |
| 26 | OVERHEAT SENSOR | |
| 27 | TEMP LIMITER | |
| 27 | TEMP LIMITER 2007 EDITION | |
| 28 | POWER CORD | |
| 29 | SCREW TERMINAL | |
| 30 | DATA PLATE | |
| 31 | LABEL GROUND WIRE | |
| 32 | HANDLE | |
| 33 | STRAIN RELIEF BUSHING | |
| 34 | LEG RUBBER | |
| 35 | BELT | |
| 36 | KNOB | |
| 37 | WIRE 1.5 BLUE 0.08 | |
| 37 | WIRE 1.5 BROWN 0.11 | |
| 37 | WIRE 1.5 BROWN 0.12 | |
| 37 | WIRE 1.5 BLUE 0.20 | |
| 37 | WIRE 1.5 BLUE 0.08 | |
| 37 | WIRE 1.5 BROWN 0.25 | |
| 37 | WIRE 1.5 BROWN 0.25 |
