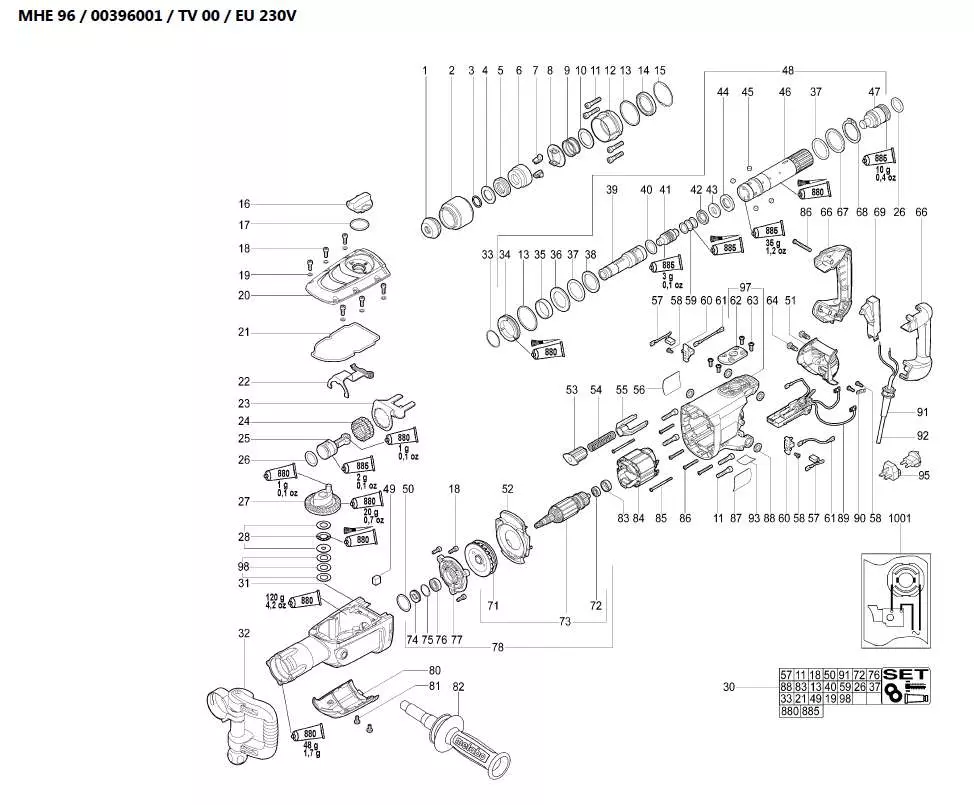

MHE 96 (00396001)
MHE 96 (00396001)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Rubber cap |
| 2 |  |
Sleeve |
| 3 |  |
Circlip |
| 4 |  |
Ring |
| 5 |  |
Damping ring |
| 6 |  |
Sleeve |
| 7 |  |
Carrier |
| 8 | Intermediate plate | |
| 9 | Pressure spring | |
| 10 | Washer,53x39x1,5 | |
| 11 | Cap screw | |
| 12 | Retaining ring | |
| 13 | O-ring | |
| 14 | Shaft sealing ring | |
| 15 | Retaining ring | |
| 16 | Control knob | |
| 17 | O-ring | |
| 18 | Cap screw | |
| 19 | Washer | |
| 20 | Gear-box cover | |
| 21 | Seal | |
| 22 | Shift fork | |
| 23 | Retaining sheet | |
| 24 | Setting ring | |
| 25 | Piston compl. | |
| 26 | O-ring | |
| 27 | Bevel gear compl. | |
| 28 | Bearing | |
| 30 | Maintenance kit | |
| 31 | Gear housing compl. | |
| 32 | Side support handle compl. | |
| 33 | Circlip | |
| 34 | Ring | |
| 35 | Ring | |
| 36 | Supporting disc | |
| 37 | O-ring | |
| 38 | Stop ring | |
| 39 | Drill driving sleeve | |
| 40 | O-ring | |
| 41 | Piston compl. | |
| 42 | Stop ring | |
| 43 | Ring,NBR | |
| 44 | Stop ring | |
| 45 | Pin | |
| 46 | Sleeve | |
| 47 | Striker compl. | |
| 48 | Spindle compl.,SDS-M | |
| 49 | Felt seal | |
| 50 | O-ring | |
| 51 | Housing cover compl. | |
| 52 | Baffle | |
| 53 | Pressure plate | |
| 54 | Pressure spring | |
| 55 | Bevel gear | |
| 56 | Rating plate | |
| 57 | Carbon brush set | |
| 58 | Screw, | |
| 59 | O-ring | |
| 60 | Brush holder | |
| 61 | Lead Wire (Switch) | |
| 62 | Cover | |
| 63 | Screw,C-K6x16 T25 | |
| 64 | Screw, | |
| 66 | Handle 2 part | |
| 67 | Stop ring | |
| 68 | Retaining ring | |
| 69 | On-off switch | |
| 71 | Fan | |
| 72 | Ball bearing | |
| 73 | Armature compl.,220-240V | |
| 74 | Sealing ring | |
| 75 | Retaining ring | |
| 76 | Ball bearing | |
| 77 | Gear cover | |
| 78 | Armature w.flange,220-240 V | |
| 80 | Blank faceplate | |
| 81 | Fillister head screw | |
| 82 | Anti-vibration handle compl. | |
| 83 | Rubber bushing | |
| 84 | Field coil w.field coil,220-240 V | |
| 85 | Screw,4x64 | |
| 86 | Screw,K5x45 T20 | |
| 87 | Metabo label | |
| 88 | O-ring | |
| 89 | Electronic unit,220-240 V | |
| 90 | Cable clip | |
| 91 | Cable sleeve | |
| 92 | Cable w.CEE plug | |
| 93 | Indication label,104 dB, MHE 56 | |
| 95 | Part not needed | |
| 97 | Motor housing compl. | |
| 98 | Washers set | |
| 880 | Tube Grease,45 g Urethyn | |
| 885 | Tube Grease,100 g Darina | |
| 1001 | Wiring diagram |
