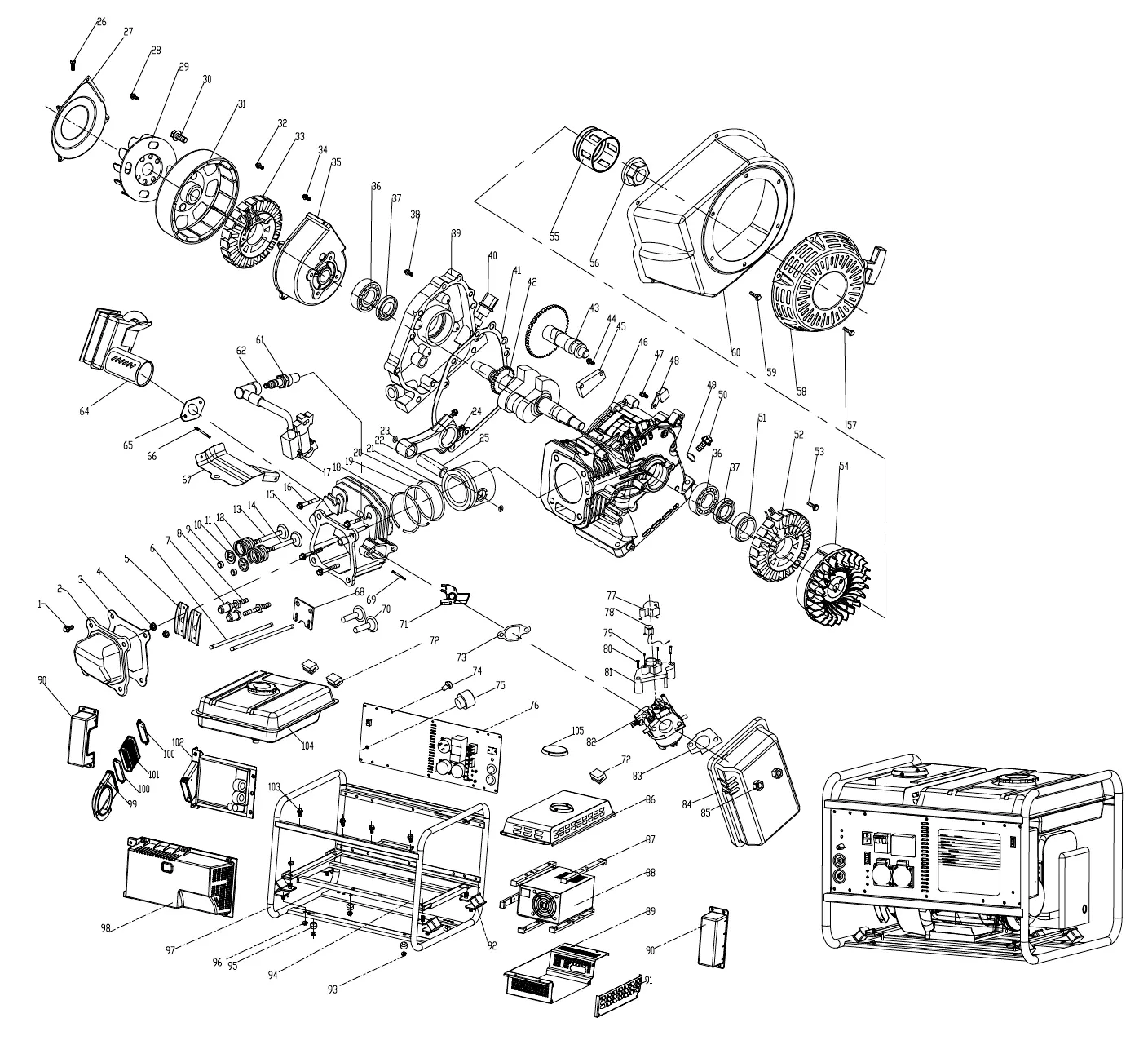

| П-п | Арт | Название |
|---|---|---|
| 1 | Screw 16X14 | |
| 2 | Cylinder head cover | |
| 3 | CvlInder head cover gasket | |
| 4 | Nut i | |
| 5 | Vave rocker arm | |
| 6 | Push-rod | |
| 7 | Valve adjusting screw | |
| 8 | Stud bolt I | |
| 9 | Valve adjusting olate | |
| 10 | Exhaust Valve-spring retainer | |
| 11 | Intake Valve-soring retainer | |
| 12 | Valve sorina | |
| 13 | Exhaust valve | |
| 14 | Intake Valve | |
| 15 | Cylinder head | |
| 16 | Cy inder head b ot | |
| 17 | Trigger | |
| 18 | Piston rina | |
| 19 | Piston rina n | |
| 20 | Oi ring assembIv | |
| 21 | Piston | |
| 22 | Connecting rod | |
| 23 | Piston Stopper | |
| 24 | Connection rod bolt | |
| 25 | Piston pin | |
| 26 | Screw 115x12 | |
| 27 | Protection cud | |
| 28 | Screw M6X10 | |
| 29 | Fan | |
| 30 | Screw M8X25 | |
| 31 | Rotor | |
| 32 | Screw M5X25 | |
| 33 | Stator assembly | |
| 34 | Screw M8X16 | |
| 35 | Generator cover | |
| 36 | Ba bearing 6205 | |
| 37 | Oi sea 25x45x10 | |
| 38 | Screw 118X35 | |
| 39 | Crankcase cover | |
| 40 | Oil Filler cap | |
| 41 | Crankcase gasket | |
| 42 | Crankshaft | |
| 43 | Camshaft Assembly | |
| 44 | Screw M6X14 | |
| 45 | Lub pressure sensor | |
| 46 | Crankcase | |
| 47 | Screw M6X10 | |
| 48 | Insu at ion | |
| 49 | Copper washer | |
| 50 | Screw M10X1,25X15 | |
| 51 | Lining | |
| 52 | Статор малый (7 проводов) | |
| 53 | Screw H5X30 | |
| 54 | Fy wtiee rotor assemb y | |
| 55 | Driving coup ing | |
| 56 | NutM 4 | |
| 57 | Screw #6X8 | |
| 58 | Recoil starter uni | |
| 59 | Screw M6X8 | |
| 60 | Fan cover | |
| 61 | Spark p ug | |
| 62 | lanition coil | |
| 64 | Huffier assembled | |
| 65 | Muffler gasket | |
| 66 | Bolt 18X25 | |
| 67 | Baffle | |
| 68 |  |
Rocket arm d ate |
| 69 |  |
Bolt 116X96 |
| 70 |  |
Valve Tappet |
| 71 |  |
Insulator |
| 72 |  |
Absorber |
| 73 |  |
ntake port gasket |
| 74 |  |
Screw 15X10 |
| 75 |  |
Earthing nut |
| 76 |  |
Control panel uni |
| 77 |  |
Stepper motor protectina cover |
| 78 |  |
Steooer mottor |
| 79 |  |
Slotted round head screw M3*5 |
| 80 |  |
Sotted round head screw M4‘8 |
| 81 |  |
Stepper motor bracket |
| 82 |  |
Carburetor |
| 83 |  |
Carburetor qasket |
| 84 |  |
Air filter |
| 85 |  |
Nut 16 |
| 86 |  |
controller’s aegis (top) |
| 87 |  |
Adjuster |
| 88 |  |
Reverse controller unit |
| 89 |  |
controller’s aegis (bottom) |
| 90 |  |
Ala mantle |
| 91 |  |
Contro er’s aegis (side) |
| 92 |  |
Shock absorption trilby |
| 93 |  |
Nut M8 |
| 94 |  |
Balance frame |
| 95 |  |
Absorber , |
| 96 |  |
Nut M3 |
| 97 |  |
Frameset Assembly |
| 98 |  |
Inverter cover |
| 99 |  |
Tie-in |
| 100 |  |
Connected fasener |
| 101 |  |
Corrugated cannulation |
| 102 |  |
nverter |
| 103 |  |
Sere* 115X10 |
| 104 |  |
Fue tank |
| 105 |  |
Aegis cover |
| _ |  |
Short-blok |
