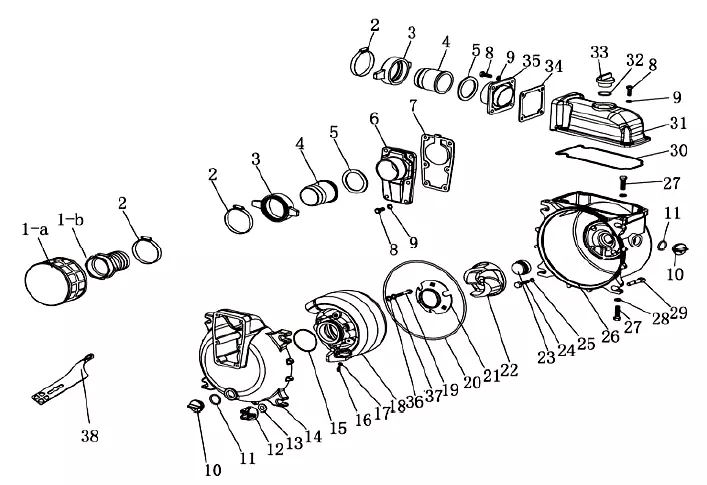

| П-п | Арт | Название |
|---|---|---|
| 1-a | Filter net | |
| 1-b | Connecting pipe | |
| 2 | Clamp | |
| 3 | Joint grip | |
| 4 | Pipe joint | |
| 5 | Rubber packing | |
| 6 | Suction flange | |
| 7 | Clap door | |
| 8 | Bolt M10*30 | |
| 9 | Spring washer | |
| 10 | Plug | |
| 11 | Plug packing | |
| 12 | Quincunx Nut | |
| 13 | washer | |
| 14 | Pump body | |
| 15 | Rubber packing ring | |
| 16 | Bolt M6*16 | |
| 17 | Spring washer | |
| 18 | Diffusor | |
| 19 | Bolt M8*35 | |
| 20 | 0- ring | |
| 21 | Impeller Cover | |
| 22 | Impeller | |
| 23 | Mechanical Seal | |
| 24 | Bolt M8*55 | |
| 25 | Aluminum washer | |
| 26 | Pump cover | |
| 27 | Bolt M12*45 | |
| 28 | Spring washer | |
| 29 | Eyelet Bolt | |
| 30 | Rubber Gasket | |
| 31 | Discharge Flange | |
| 32 | Plug packing | |
| 33 | Plug | |
| 34 | Rubber Pad | |
| 35 | Outlet Tie-in | |
| 36 | washer | |
| 37 | Spring washer q>8 | |
| 38 | Wrench |
