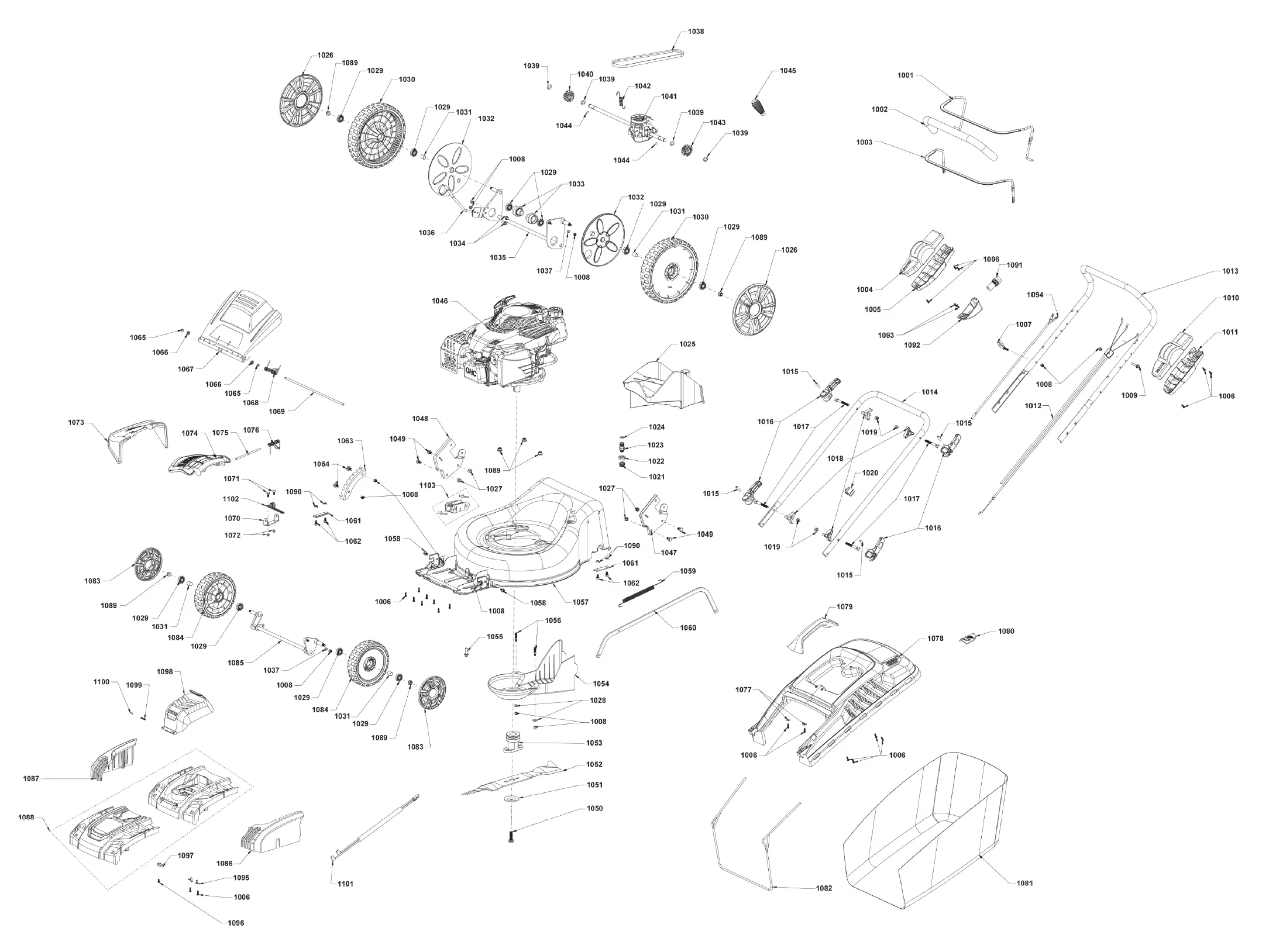

RLM46175SO (5133002554)
| П-п | Арт | Название |
|---|---|---|
| 1001 | OPERATION LEVER 4058546066208 | |
| 1002 | FOAM RUBBER 4002395273713 | |
| 1003 | OPERATION LEVER 4058546066215 | |
| 1004 | HOUSING COVER 4002395273737 | |
| 1005 | HOUSING BOTTOM 4002395273744 | |
| 1006 | SCREW 4002395273751 | |
| 1007 | CABLE CLIP 4002395273768 | |
| 1008 | NUT 4002395273775 | |
| 1009 | SCREW 4002395273782 | |
| 1010 | HOUSING COVER 4002395273799 | |
| 1011 | HOUSING BOTTOM 4002395274406 | |
| 1012 | CABLE 4002395274420 | |
| 1013 | HANDLE BAR 4002395274437 | |
| 1014 | HANDLE BAR 4002395274444 | |
| 1015 | PIN 4002395274451 | |
| 1016 | GRIP PIECE 4002395274468 | |
| 1017 | BOLT 4002395274475 | |
| 1018 | TURNING KNOB 4002395274482 | |
| 1019 | NUT 4002395274499 | |
| 1020 | CABLE CLIP 4002395275106 | |
| 1021 | CABLE AND PLUG 4002395275113 | |
| 1022 | NUT 4002395275120 | |
| 1023 | FITTING 4002395275137 | |
| 1024 | O-RING 4002395275144 | |
| 1025 | LOCK 4002395275151 | |
| 1026 | CAP 4002395275168 | |
| 1027 | NUT 4002395275175 | |
| 1028 | WASHER 4002395275182 | |
| 1029 | BALL BEARING 4002395275199 | |
| 1030 | WHEEL 4002395275809 | |
| 1031 | BUSH 4002395275816 | |
| 1032 | COVER 4002395275823 | |
| 1033 | BUSH 4002395275830 | |
| 1034 | SCREW 4002395275847 | |
| 1035 |  |
AXLE 4002395275854 |
| 1036 |  |
ROD 4002395275861 |
| 1037 |  |
WASHER 4002395275878 |
| 1038 |  |
BELT 4002395275885 |
| 1039 |  |
PROTECTION WASHER 4002395275892 |
| 1040 |  |
GEAR 4002395273102 |
| 1041 |  |
OFFSET GEAR 4002395273119 |
| 1042 |  |
SPRING 4002395273126 |
| 1043 |  |
GEAR 4002395273133 |
| 1044 |  |
PIN 4002395273140 |
| 1045 |  |
KNOB HANDLE 4002395273157 |
| 1046 |  |
MOTOR 4002395273188 |
| 1047 |  |
SIDE PART 4002395273195 |
| 1048 |  |
SIDE PART 4002395273805 |
| 1049 |  |
SCREW 4002395273812 |
| 1050 |  |
BOLT 4002395273829 |
| 1051 |  |
CUP SPRING 4002395273836 |
| 1052 |  |
BLADE 4002395273843 |
| 1053 |  |
HOLDER 4002395273850 |
| 1054 |  |
BELT GUARD 4002395273867 |
| 1055 |  |
SCREW 4002395273881 |
| 1056 |  |
PIN 4002395274505 |
| 1057 |  |
HOUSING 4002395274512 |
| 1058 |  |
SCREW 4002395274529 |
| 1059 |  |
SPRING 4002395274536 |
| 1060 |  |
CONNECTING ROD 4002395274550 |
| 1061 |  |
INTERMEDIATE FLANGE 4002395274567 |
| 1062 |  |
SCREW 4002395274574 |
| 1063 |  |
ADJUSTING PIECE 4002395274581 |
| 1064 |  |
SCREW 4002395274598 |
| 1065 |  |
PROTECTION WASHER 4002395275205 |
| 1066 |  |
TOOTHED BELT PULLEY 4002395275212 |
| 1067 |  |
DOOR 4002395275229 |
| 1068 |  |
SPRING 4002395275236 |
| 1069 |  |
AXLE 4002395275243 |
| 1070 |  |
BRACKET 4002395275250 |
| 1071 |  |
SCREW 4002395275267 |
| 1072 |  |
NUT 4002395275274 |
| 1073 |  |
GUARD 4002395275281 |
| 1074 |  |
DOOR 4002395275298 |
| 1075 |  |
AXLE 4002395275908 |
| 1076 |  |
SPRING 4002395275915 |
| 1077 |  |
WASHER 4002395275922 |
| 1078 |  |
COVER 4002395275939 |
| 1079 |  |
HANDLE 4002395275946 |
| 1080 |  |
COVER 4002395275953 |
| 1081 |  |
GRASS-CATCHING BAG 4002395275960 |
| 1082 |  |
FRAME 4002395275977 |
| 1083 |  |
CAP 4002395275984 |
| 1084 |  |
WHEEL 4002395275991 |
| 1085 |  |
AXLE 4002395273201 |
| 1086 | SIDE PART 4002395273218 | |
| 1087 | SIDE PART 4002395273225 | |
| 1088 | HOUSING 4002395273249 | |
| 1089 | NUT 4002395273256 | |
| 1090 | NUT 4002395273263 | |
| 1091 | SWITCH+KEY 4002395273270 | |
| 1092 | SWITCH RETAINER 4002395273287 | |
| 1093 | SCREW 4002395273294 | |
| 1094 | CABLE 4002395273904 | |
| 1095 | CONTACT 4002395273911 | |
| 1096 | SCREW 4002395273928 | |
| 1097 | CABLE CLAMP 4002395273935 | |
| 1098 | COVER 4002395273942 | |
| 1099 | SPRING 4002395273959 | |
| 1100 | AXLE 4002395273966 | |
| 1101 | CABLE 4002395273973 | |
| 1102 | STAPLE 4002395273980 | |
| 1103 | INTERLOCK ELEMENT 4058546066222 |
