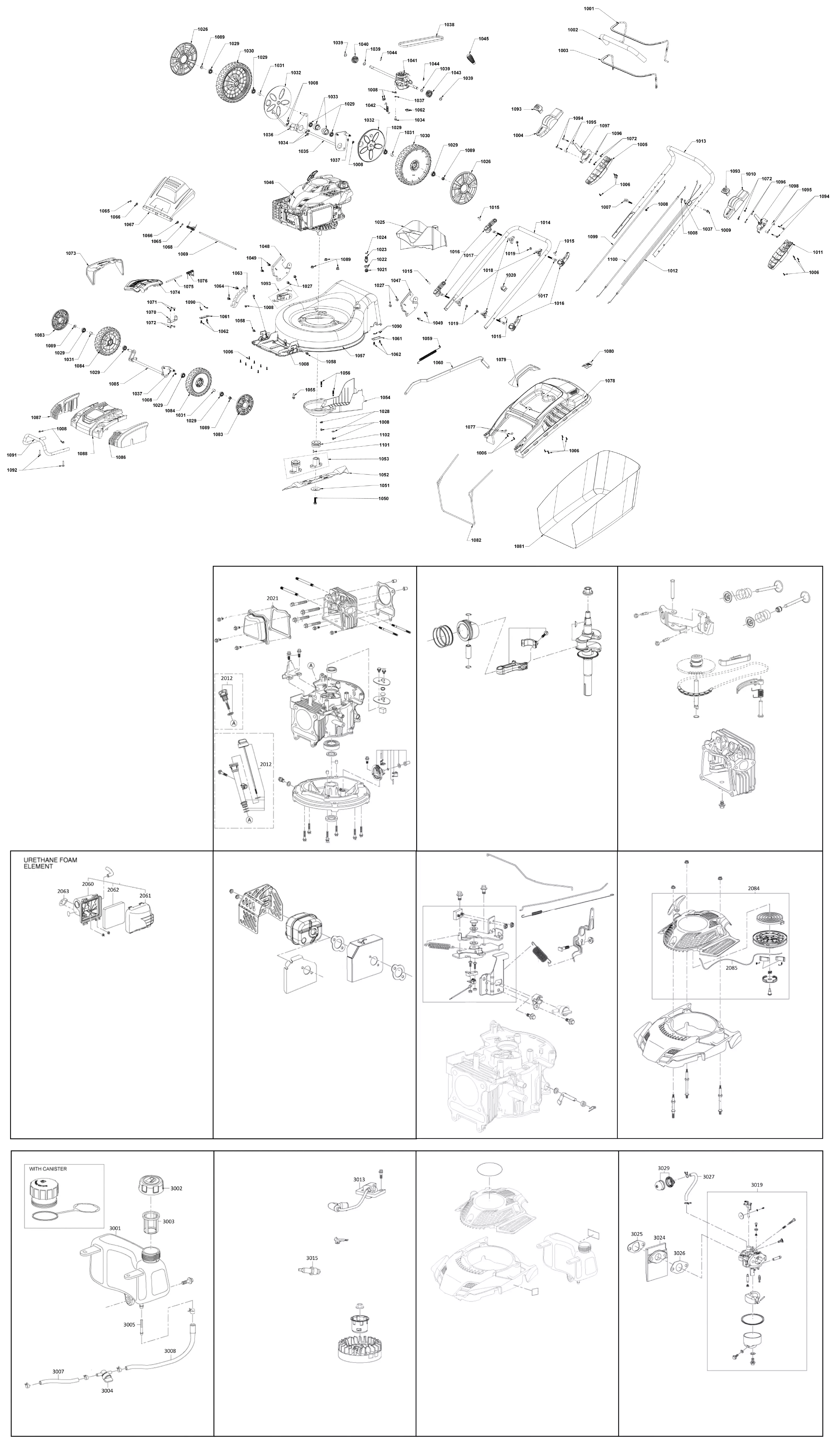

RLM53175S (4000462537)
| П-п | Арт | Название |
|---|---|---|
| 1001 | OPERATION LEVER | |
| 1002 | FOAM RUBBER | |
| 1003 | OPERATION LEVER | |
| 1004 | HOUSING COVER | |
| 1005 | HOUSING BOTTOM | |
| 1006 | SCREW | |
| 1007 | CABLE CLIP | |
| 1008 | NUT | |
| 1009 | SCREW | |
| 1010 | HOUSING COVER | |
| 1011 | HOUSING BOTTOM | |
| 1012 | CABLE | |
| 1013 | HANDLE BAR | |
| 1014 | HANDLE BAR | |
| 1015 | PIN | |
| 1016 | GRIP PIECE | |
| 1017 | BOLT | |
| 1018 | TURNING KNOB | |
| 1019 | NUT | |
| 1020 | CABLE CLIP | |
| 1021 | CABLE AND PLUG | |
| 1022 | NUT | |
| 1023 | FITTING | |
| 1024 | O-RING | |
| 1025 | LOCK | |
| 1026 | CAP | |
| 1027 | NUT | |
| 1028 | WASHER | |
| 1029 | BALL BEARING | |
| 1030 | WHEEL | |
| 1031 | BUSH | |
| 1032 | COVER | |
| 1033 | BUSH | |
| 1034 | SCREW | |
| 1035 | AXLE | |
| 1036 | ROD | |
| 1037 | WASHER | |
| 1038 | BELT | |
| 1039 | PROTECTION WASHER | |
| 1040 | GEAR | |
| 1041 | OFFSET GEAR | |
| 1042 | SPRING | |
| 1043 | GEAR | |
| 1044 | PIN | |
| 1045 | KNOB HANDLE | |
| 1046 | MOTOR | |
| 1047 | SIDE PART | |
| 1048 | SIDE PART | |
| 1049 | SCREW | |
| 1050 | BOLT | |
| 1051 | CUP SPRING | |
| 1052 | BLADE | |
| 1053 | HOLDER | |
| 1054 | COVER | |
| 1055 | SCREW | |
| 1056 | PIN | |
| 1057 | HOUSING | |
| 1058 | SCREW | |
| 1059 | SPRING | |
| 1060 | CONNECTING ROD | |
| 1061 | INTERMEDIATE FLANGE | |
| 1062 | SCREW | |
| 1063 | ADJUSTING PIECE | |
| 1064 | SCREW | |
| 1065 | PROTECTION WASHER | |
| 1066 | TOOTHED BELT PULLEY | |
| 1067 | DOOR | |
| 1068 | SPRING | |
| 1069 | AXLE | |
| 1070 | BRACKET | |
| 1071 | SCREW | |
| 1072 | NUT | |
| 1073 | GUARD | |
| 1074 | DOOR | |
| 1075 | AXLE | |
| 1076 | SPRING | |
| 1077 | WASHER | |
| 1078 | COVER | |
| 1079 | HANDLE | |
| 1080 |  |
COVER |
| 1081 |  |
GRASS-CATCHING BAG |
| 1082 |  |
FRAME |
| 1083 |  |
CAP |
| 1084 |  |
WHEEL |
| 1085 |  |
AXLE |
| 1086 |  |
SIDE PART |
| 1087 |  |
SIDE PART |
| 1088 |  |
HOUSING |
| 1089 |  |
NUT |
| 1090 |  |
NUT |
| 1091 |  |
GUARD |
| 1092 |  |
SCREW |
| 1093 |  |
INTERLOCK ELEMENT |
| 1094 |  |
Not available for this version |
| 1095 |  |
Not available for this version |
| 1096 |  |
Not available for this version |
| 1097 |  |
Not available for this version |
| 1098 |  |
Not available for this version |
| 1099 |  |
Not available for this version |
| 1100 |  |
Not available for this version |
| 1101 |  |
Not available for this version |
| 1102 |  |
Not available for this version |
| 2012 |  |
GAUGE |
| 2021 |  |
GASKET |
| 2060 |  |
AIR FILTER HOUSING |
| 2061 |  |
AIR CLEANER COVER |
| 2062 |  |
AIR FILTER |
| 2063 |  |
GASKET |
| 2084 |  |
RECOIL STARTER |
| 2085 |  |
ROPE |
| 3001 |  |
TANK |
| 3002 |  |
FUEL CAP |
| 3003 |  |
FILTER |
| 3004 |  |
CHECK VALVE |
| 3005 |  |
FILTER |
| 3007 |  |
HOSE |
| 3008 |  |
TUBE LONG |
| 3013 |  |
IGNITION |
| 3015 |  |
SPARK PLUG |
| 3019 |  |
CARBURETOR |
| 3024 |  |
INSULATOR |
| 3025 |  |
GASKET |
| 3026 |  |
GASKET |
| 3027 |  |
TUBE |
| 3029 |  |
TRIGGER |
