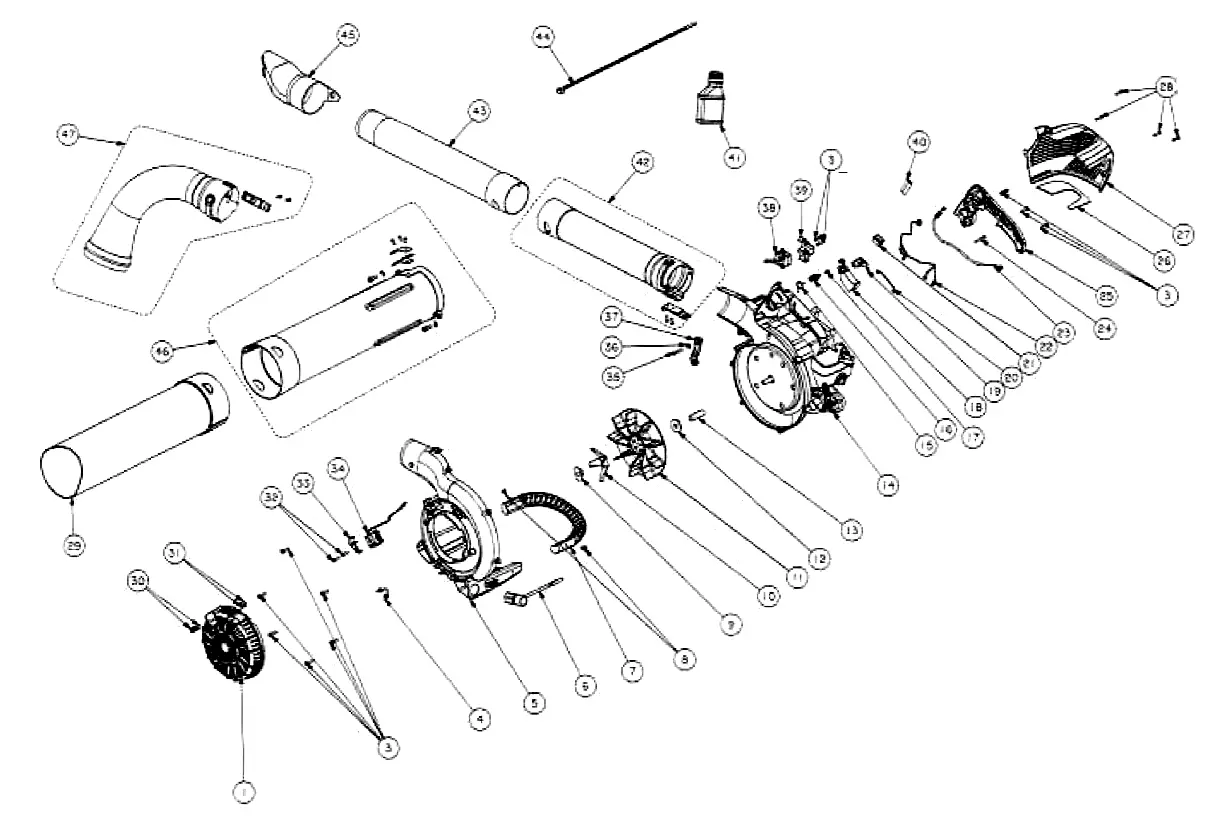

Схема 1
Схема 1
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
DOOR 4002395165933 |
| 2 |  |
VAC LEAF BAG \\ 50L 4002395165940 |
| 3 |  |
TAPTITE SCREW, #10-14 4002395165957 |
| 4 |  |
SPRING 4002395165964 |
| 5 |  |
OUTER VOLUTE 4002395165971 |
| 6 |  |
STRAIGHT COMBINATION 4002395165988 |
| 7 |  |
VAC HANDLE 4002395165995 |
| 8 |  |
TAPTITE SCREW , TH #10 4002395166602 |
| 9 |  |
NUT FOR FAN \\ 26CC \\ 090155015 4002395166619 |
| 10 |  |
MULCHING BLADE/0901550 4002395166626 |
| 11 |  |
FAN 4002395166633 |
| 12 |  |
WASHER 4058546056650 |
| 13 |  |
SPACER 4058546055882 |
| 14 |  |
ENGINE ASSY 090155035 4002395166640 |
| 15 |  |
SPRING, THROTTLE TRIGGER \\ 090155010 4002395166657 |
| 16 |  |
LEVER 4058546055899 |
| 17 |  |
SCREW 4058546056667 |
| 18 |  |
TRIGGER 4058546142209 |
| 19 |  |
TRIGGER RBL30MVA 4058546056698 |
| 20 |  |
WIRE 4058546142216 |
| 21 |  |
SWITCH 4058546103668 |
| 22 | WIRE 4058546055905 | |
| 23 | CABLE 4058546055912 | |
| 24 | SCREW 4002395166664 | |
| 25 | HANDLE 4002395166671 | |
| 26 | HEAT SHIELD GASKET 4002395166688 | |
| 27 | PLASTIC,ENGINE COVER \\ RY09550 4002395166695 | |
| 28 | SCREW 4058546098032 | |
| 29 | TUBE 4058546056018 | |
| 30 | SCREW 4058546098247 | |
| 31 | PROTECTION WASHER 4058546055998 | |
| 32 | NUT RBL26BV 4058546056681 | |
| 33 | COVER 4058546142223 | |
| 34 | SWITCH 4058546055929 | |
| 35 | SCREW 4058546055981 | |
| 36 | WASHER 4058546055974 | |
| 37 | CRUISE LEVER 4002395167302 | |
| 38 | SWITCH 4058546055936 | |
| 39 | COVER 4058546056612 | |
| 40 | TUBE 4058546056605 | |
| 41 | RED BOTTLE BLACK COVER | |
| 42 | BLOWER TUBE WITH SLIDER ASSEMBLY 4002395167326 | |
| 43 | BLOW ROUND TUBE-LOWER 4002395167333 | |
| 44 | WAISTBELT 4058546056643 | |
| 45 | NOZZLE 4002395167340 | |
| 46 | VAC TUBE WITH METAL PLATE 4002395167357 | |
| 47 | ELBOW TUBE WITH SLIDER ASSEMBLY 4002395167364 |
