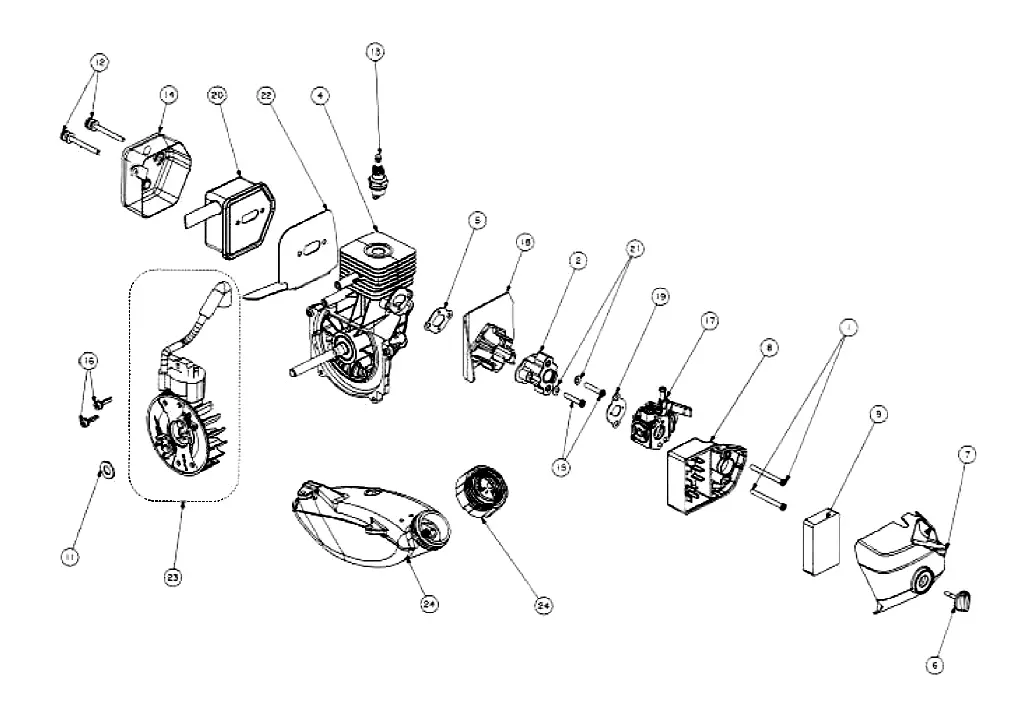

Схема 3
Схема 3
| П-п | Арт | Название |
|---|---|---|
| 1 | HEAT DAM MOUNTING BOLT 4002395164615 | |
| 2 | HEAT DAM 4002395164622 | |
| 4 | HIGHPOWER SHORT BLOCK ASSEMBL 4002395164639 | |
| 5 | GASKET 4058546100629 | |
| 6 | KNOB 4058546144685 | |
| 7 | AIR BOX COVER 4002395164646 | |
| 8 | AIRBOX BASE 4002395164653 | |
| 9 | AIR BOX ASS\\\'Y 4058546055073 | |
| 10 | TANK 4058546142261 | |
| 11 | WASHER 4058546055943 | |
| 12 | SCREW 4058546080457 | |
| 13 | SPARK PLUG RCJ6Y 4043673001628 | |
| 14 | HOUSING COVER | |
| 15 | SCREW 4058546098384 | |
| 16 | SCREW 4058546098452 | |
| 17 | CARBURETOR 4002395164677 | |
| 18 | INSULATOR | |
| 19 | GASKET 4058546001940 | |
| 20 | MUFFLER 4058546055967 | |
| 21 | WASHER 4058546097318 | |
| 22 | MUFFLER GASKET 4002395164684 | |
| 23 | 26CC IGNITION KIT/FERRITE MAG 4002395164691 | |
| 24 | CAP 4058546116156 |
