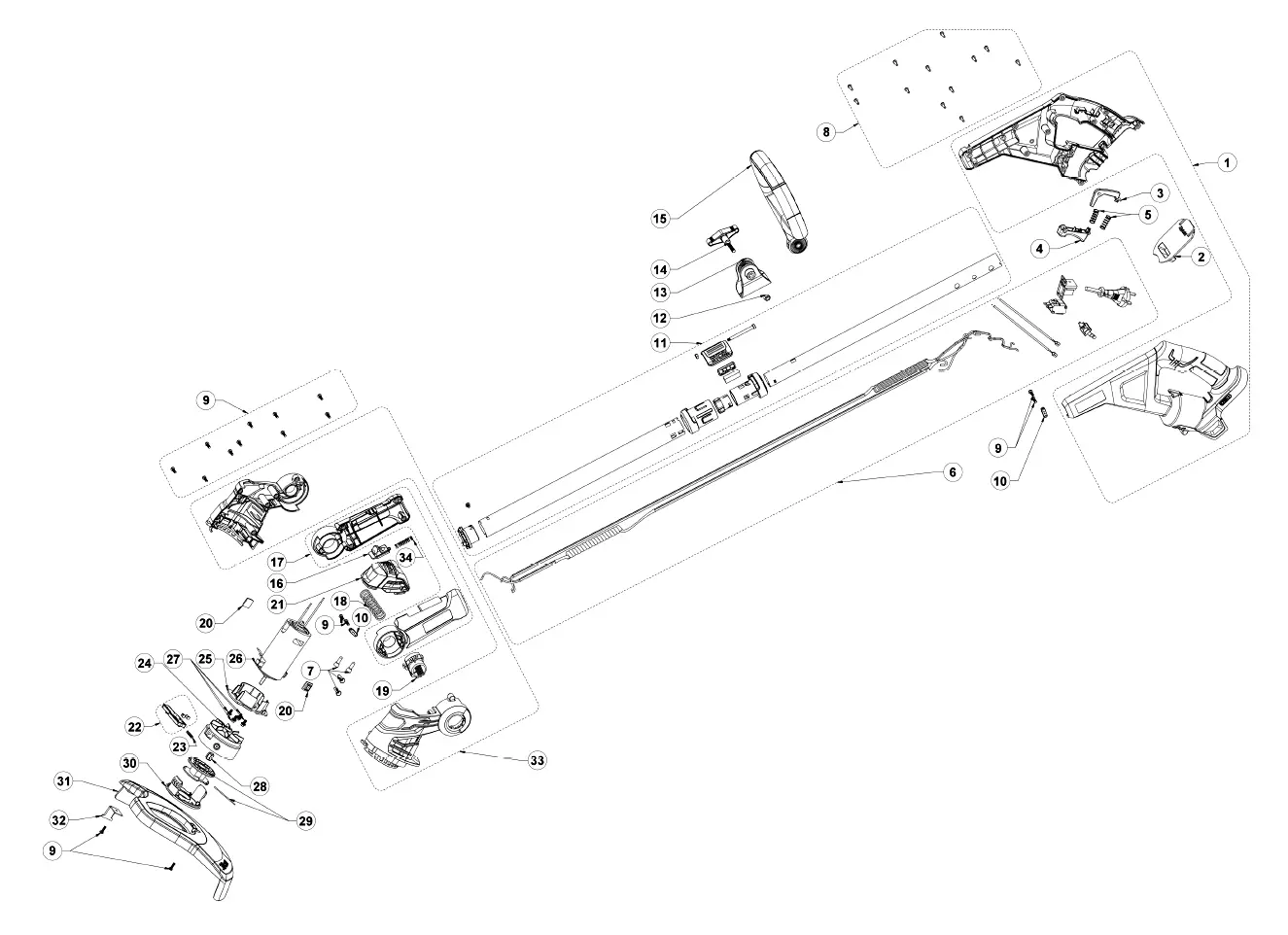

RLT 1831H20 (4000462079)
| П-п | Арт | Название |
|---|---|---|
| 1 | HANDLE 4058546043971 | |
| 2 | DOOR 4058546149949 | |
| 3 | LOCK 4058546148782 | |
| 4 | TRIGGER 4058546148775 | |
| 5 | SPRING 4058546148768 | |
| 6 | ELECTRONIC 4058546043988 | |
| 7 | CONNECTOR 4058546149932 | |
| 8 | SCREW | |
| 9 | SCREW 4058546143275 | |
| 10 | CLAMP | |
| 11 | GUIDE TUBE 4058546043995 | |
| 12 | NUT 4058546150457 | |
| 13 | CHAIN CLAMP BODY 4058546044008 | |
| 14 | AUX, HANDLE KNOB WITH M6*1,0 BOLT 4058546156916 | |
| 15 | LOWER AUX, HANDLE 4058546156923 | |
| 16 | PUSH-BUTTON 4058546044015 | |
| 17 | HOUSING 4058546044022 | |
| 18 | SPRING 4058546146191 | |
| 19 | BUTTON 4058546146207 | |
| 20 | RUBBER PLATE 4058546149772 | |
| 21 | COVER 4058546044039 | |
| 22 | PLATE 4058546149758 | |
| 23 | SPRING 4058546143381 | |
| 24 | HOUSING 4058546044046 | |
| 25 | BRACKET 4058546044053 | |
| 26 | MOTOR 4058546044060 | |
| 27 | M SCREW M4X0.7X8mm 4058546148690 | |
| 28 | BUSHING 4058546149895 | |
| 29 | WIRE COIL 4058546044077 | |
| 30 | COVER 4058546143367 | |
| 31 | GUARD 4058546044084 | |
| 32 | BLADE 4002395139651 | |
| 33 | HOUSING SET ASSY 4058546044091 | |
| 34 | SPRING 4058546044107 |
